Centrifugal Dredging Pump For Rive Sand

Modo Pump has been focused on centrifugal dredging pump for rive sand manufacturing and selling for many years, which is known as a professional manufacturer and supplier of various quality pumps in China. We have gathered many professional and experienced staff, as well as advanced equipment in our factory. Welcome to buy our centrifugal dredging pump for rive sand and check the price list with us.



The Centrifugal Dredging Pump for River Sand is a powerful piece of equipment used for removing sand and sediment from rivers, lakes, and other bodies of water. It works by using a centrifugal force to create a high-speed flow of water that sucks in the sand and sediment and then pumps it out of the river or lake.

The Centrifugal Dredging Pump for River Sand consists of a large impeller which rotates at high speed and creates the centrifugal force. When water is drawn into the pump, it is directed towards the impeller, where it is accelerated to high speeds. As the water and sand move away from the impeller, they are separated by a series of vanes and directed towards the outlet pipe.

The Centrifugal Dredging Pump for River Sand is very efficient because of its ability to handle large volumes of water and sand at high speeds. This means that it can remove a large amount of sediment in a short amount of time, making it ideal for use in large-scale dredging projects.

One of the advantages of the centrifugal dredging pump is that it is very versatile and can be used for a variety of different applications. It is commonly used in the construction industry for removing sand and soil from construction sites, as well as in the mining industry for extracting minerals from the ground.

Overall, the Centrifugal Dredging Pump for River Sand is an essential tool for anyone involved in dredging or mining operations. Its efficiency, versatility, and ease of use make it a valuable asset for any project, and it is sure to continue to play an important role in the years to come.

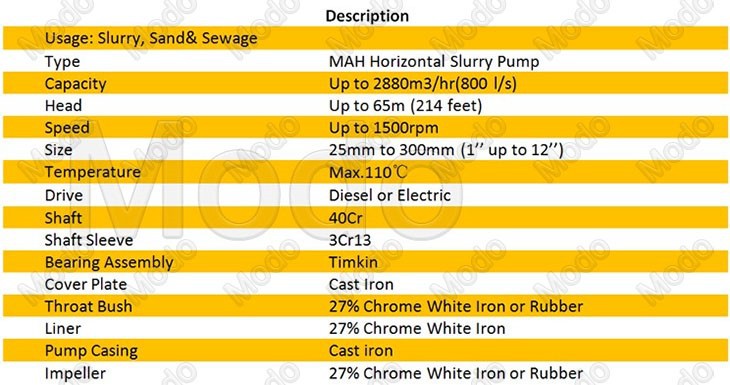

Specification of Centrifugal Dredging Pump for Rive Sand:

Available models Centrifugal Dredging Pump for River Sand

Type	Max. power	Capacity	Head	Speed	Max.Eff	NPSH	Impeller Dia.	Max.particle size
	(kw)	(m³/h)	(m)	(r/min)	(%)	(m)	(mm)	(mm)
MAH1.5-1	15	12-28	6-65	1200-3800	40	2-4	150	14
MAH2-1.5	15	32-72	6-58	1200-3200	45	3.5-8	185	19
MAH3-2	30	39-86	12-64	1300-2700	55	4-6	215	25
MAH4-3	60	86-198	9-52	1000-2200	71	4-5	245	28
MAH6-4	120	162-360	12-56	800-1500	68	5-8	365	44
MAH8-6	120	360-830	10-61	500-1140	72	2-9	510	63
MAH10-8	260	612-1368	11-61	400-850	71	4-10	685	76
MAH12-10	560	936-1980	7-68	400-750	82	1-5	760	86
MAH14-12	560	1260-2772	13-63	300-600	77	3-10	965	90

How to get a Centrifugal Dredging Pump for Rive Sand working?
Selecting the right centrifugal dredging pump is crucial to ensure efficient and effective river sand dredging operations. With the right pump, you can increase production, reduce maintenance costs, and maximize profits. Here are some factors to consider when selecting a centrifugal dredging pump for river sand working:

1. Pump Type:
There are various types of centrifugal dredging pumps available, such as submersible, horizontal, and vertical pumps. The type of pump you choose will depend on the depth and size of the river, the amount of sand you need to dredge, and the pumping distance required.

2. Flow Rate:
The flow rate of Centrifugal Dredging Pump for Rive Sand working should match the amount of sand you need to dredge per hour. The flow rate is measured in cubic meters per hour (m3/h). A higher flow rate will reduce downtime and increase production, but it will also require more energy and a larger pump.

3. Head:
The head is the vertical distance between Centrifugal Dredging Pump for Rive Sand working and the highest point of the discharge line. It affects the pump's ability to lift sand from the riverbed and transport it to the desired destination. The head is measured in meters.

4. Efficiency:
The pump's efficiency affects its energy consumption and operating costs. A more efficient Centrifugal Dredging Pump for Rive Sand working will require less energy and reduce maintenance costs. The efficiency is measured as a percentage.

5. Material:
The material used to construct the Centrifugal Dredging Pump for Rive Sand working should be durable and able to withstand the abrasive nature of the sand. Cast iron, stainless steel, and high-grade alloys are commonly used materials.

6. Cost:
Consider the initial cost, maintenance cost, and operating cost when selecting a dredging pump. Choose a pump that offers a good return on investment.

In conclusion, selecting the right centrifugal dredging pump requires careful consideration of the above factors. By choosing the right pump, you can ensure successful and profitable river sand dredging operations.
