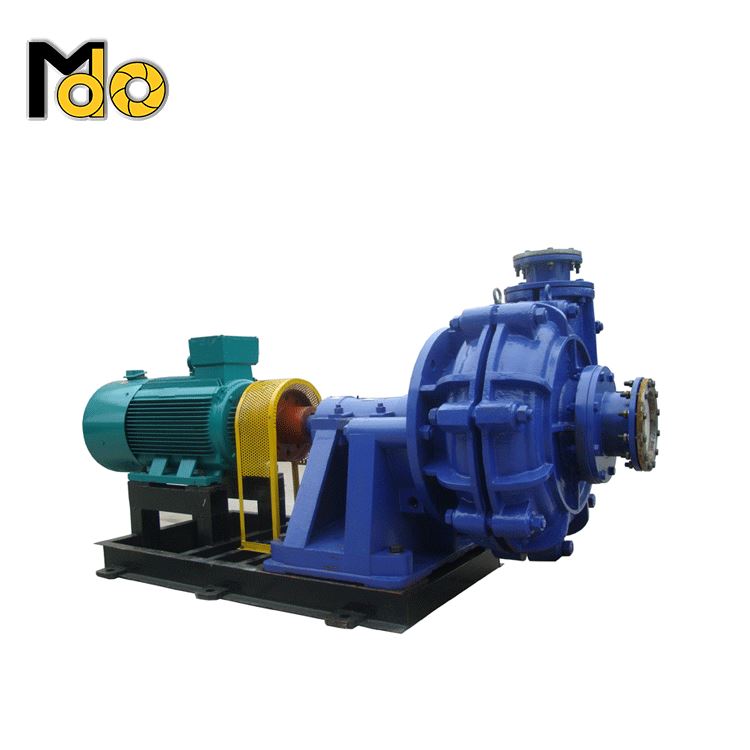

Low Price Alloy Mining Wear-resistant Slurry Pump
Low failure Wear resistant High temperature operation up to 100℃ Interchangeable between rubber and metal
Low Price Alloy Mining Wear-resistant Slurry Pump
Features
Low failure
Wear resistant
High temperature operation up to 100℃
Interchangeable between rubber and metal

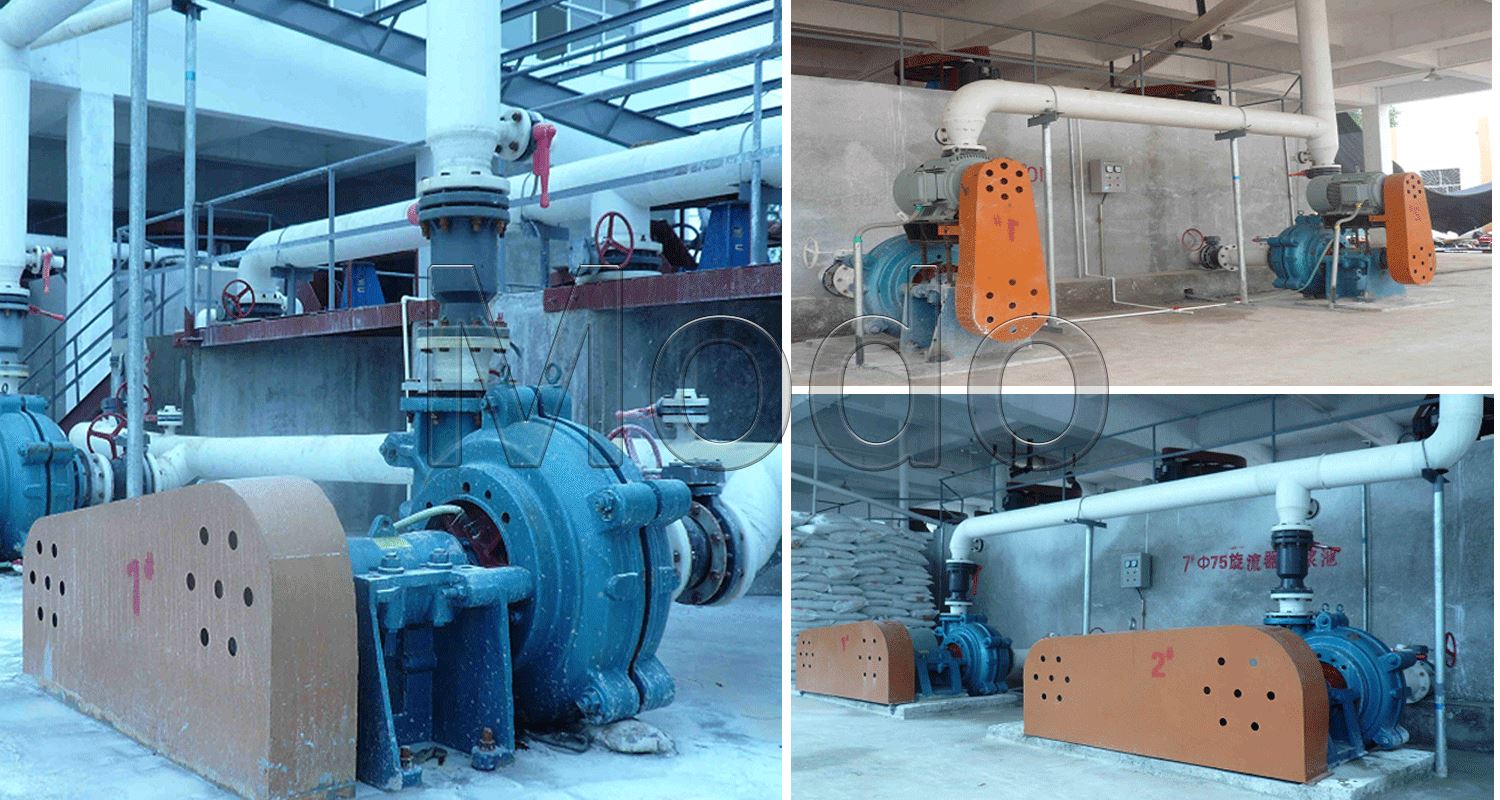

Applications
Pump Parts Materials
Rubber Pumps Material | Metal Pumps Material | ||||
No | Part | Material | No | Part | Material |
1 | Base | Cast Iron | 1 | Base | Cast Iron |
2 | Shaft | 4140 High Tensile Steel* | 2 | Shaft | 4140 High Tensile Steel* |
3 | Bearing Assembly | Timken (Cast Iron Body) | 3 | Bearing Assembly | Timken (Cast Iron Body) |
4 | Shaft Sleeve | 420 Stainless Steel | 4 | Shaft Sleeve | 420 Stainless Steel |
5 | Pump Casing | Cast Iron | 5 | Pump Casing | Cast Iron |
6 | Frame Plate Liner Insert | Rubber | 6 | Frame Plate Liner | 27% Chrome White Iron |
7 | Cover Plate Liner | Rubber | 7 | Volute Liner | 27% Chrome White Iron |
8 | Impeller | Rubber Coated High Tensile Steel | 8 | Impeller | 27% Chrome White Iron |
9 | Throat Bush | Rubber | 9 | Throat Bush | 27% Chrome White Iron |
10 | Cover Plate | Cast Iron | 10 | Joint Rings | Rubber |
11 | Stuffing Box | Cast Iron | 11 | Cover Plate | Cast Iron |
12 | Expeller | 27% Chrome White Iron | 12 | Stuffing Box | Cast Iron |
13 | Expeller Ring | Natural Rubber | 13 | Expeller | 27% Chrome White Iron |
14 | Bolts | Zinc Plated Steel | 14 | Expeller Ring | Natural Rubber |
15 | O-rings | Nitrile Rubber | 15 | Bolts | Zinc Plated Steel |
16 | Seals | Rubber | 16 | O-rings | Nitrile Rubber |
17 | Seals | Rubber | 17 | Seals | Rubber |
