Sludge Sucker Pump

Modo Pump has been focused on sludge sucker pump manufacturing and selling for many years, which is known as a professional manufacturer and supplier of various quality pumps in China. We have gathered many professional and experienced staff, as well as advanced equipment in our factory. Welcome to buy our sludge sucker pump and check the price list with us.



How to select the most suitable sludge sucker pump?
We’d like to assist you to select a sludge sucker pump:
First, determine the type of sludge you will be handling. There are various types of sludge, including organic, inorganic, and mixed, and each requires different types of pumps. For example, if you will be handling thick, viscous organic sludge, you may want to consider a positive displacement a sludge sucker pump.

Next, consider the flow rate and amount of sludge you will need to move. This will help you determine the pump's capacity and size needed for the job. It's important to ensure that the a sludge sucker pump is able to handle the sludge volume and flow rate efficiently.

Another factor to consider is the material of the sludge sucker pump. Depending on the sludge type and application, you may need a a sludge sucker pump made from a specific material. For example, if you are handling corrosive sludge, you may need a sludge sucker pump made from stainless steel or other corrosion-resistant materials.

Lastly, consider the operating conditions and environment where the a sludge sucker pump will be used. This includes factors such as temperature, pressure, and humidity. It's important to choose a pump that can withstand the conditions it will be used in, in order to ensure optimal performance and longevity.

By considering these important factors, you can choose the right sludge sucker pump that will perform exactly as you need it to. With the right pump, you can ensure efficient, effective, and reliable sludge handling, and get your job done with ease.

Models of sludge sucker pump:

Type	Max. power	Capacity	Head	Speed	Max.Eff	NPSH	Impeller Dia.	Max.particle size
	(kw)	(m³/h)	(m)	(r/min)	(%)	(m)	(mm)	(mm)
MAH1.5-1	15	12-28	6-65	1200-3800	40	2-4	150	14
MAH2-1.5	15	32-72	6-58	1200-3200	45	3.5-8	185	19
MAH3-2	30	39-86	12-64	1300-2700	55	4-6	215	25
MAH4-3	60	86-198	9-52	1000-2200	71	4-5	245	28
MAH6-4	120	162-360	12-56	800-1500	68	5-8	365	44
MAH8-6	120	360-830	10-61	500-1140	72	2-9	510	63
MAH10-8	260	612-1368	11-61	400-850	71	4-10	685	76
MAH12-10	560	936-1980	7-68	400-750	82	1-5	760	86
MAH14-12	560	1260-2772	13-63	300-600	77	3-10	965	90

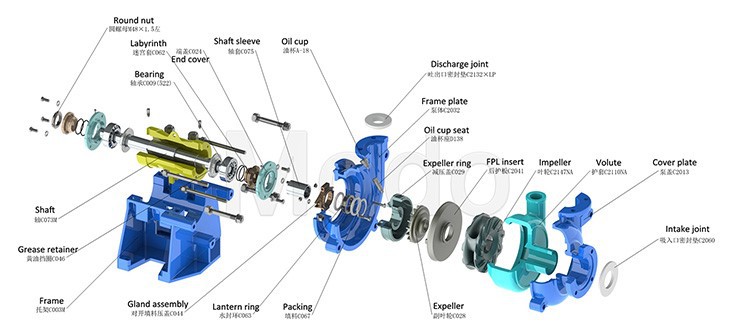

Exploded diagram of sludge sucker pump:

 Spare parts of sludge sucker pump:

Rubber Pumps Material			Metal Pumps Material
No	Part	Material	No	Part	Material
1	Base	Cast Iron	1	Base	Cast Iron
2	Shaft	4140 High Tensile Steel*	2	Shaft	4140 High Tensile Steel*
3	Bearing Assembly	Timken (Cast Iron Body)	3	Bearing Assembly	Timken (Cast Iron Body)
4	Shaft Sleeve	420 Stainless Steel	4	Shaft Sleeve	420 Stainless Steel
5	Pump Casing	Cast Iron	5	Pump Casing	Cast Iron
6	Frame Plate Liner Insert	Rubber	6	Frame Plate Liner	27% Chrome White Iron
7	Cover Plate Liner	Rubber	7	Volute Liner	27% Chrome White Iron
8	Impeller	Rubber Coated High Tensile Steel	8	Impeller	27% Chrome White Iron
9	Throat Bush	Rubber	9	Throat Bush	27% Chrome White Iron
10	Cover Plate	Cast Iron	10	Joint Rings	Rubber
11	Stuffing Box	Cast Iron	11	Cover Plate	Cast Iron
12	Expeller	27% Chrome White Iron	12	Stuffing Box	Cast Iron
13	Expeller Ring	Natural Rubber	13	Expeller	27% Chrome White Iron
14	Bolts	Zinc Plated Steel	14	Expeller Ring	Natural Rubber
15	O-rings	Nitrile Rubber	15	Bolts	Zinc Plated Steel
16	Seals	Rubber	16	O-rings	Nitrile Rubber
17	Seals	Rubber	17	Seals	Rubber

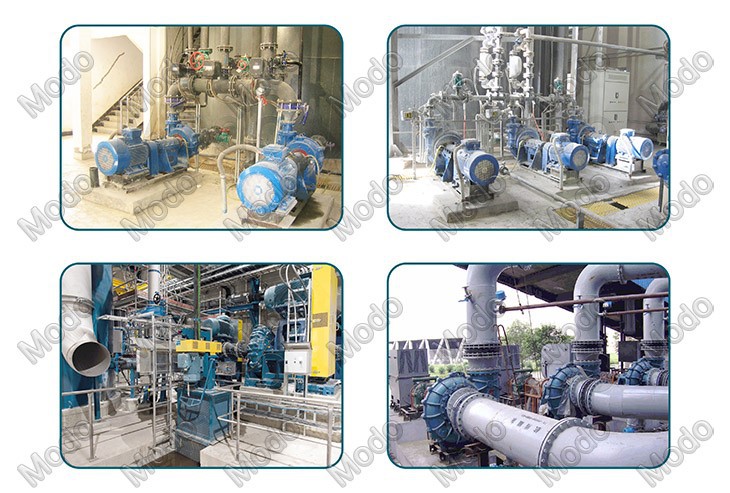

 Working site of sludge sucker pump:

Contact us for your solution of sludge sucker pump.
