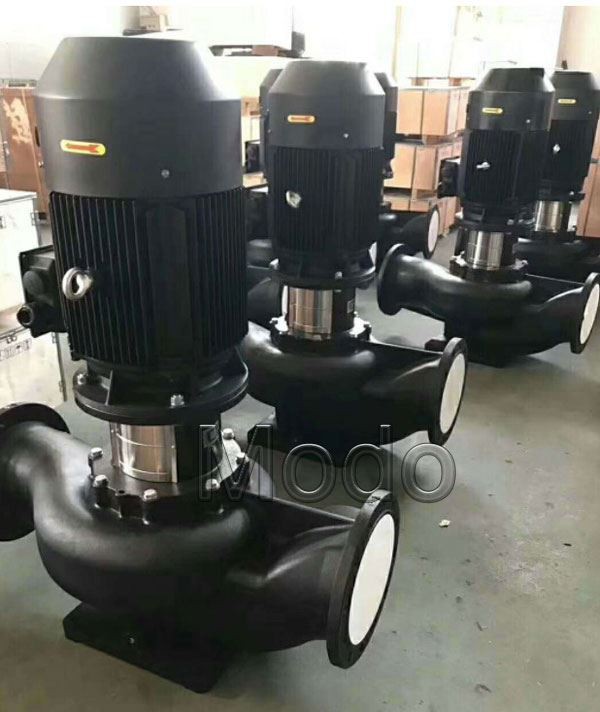

Vertical Split coupling Inline pump



Vertical Split coupling Inline pumpis a green, environment-friendly, energy-saving and high-efficiency pipeline centrifugal pump produced by introducing foreign technology. It is used to transport clean water without solid particles and liquids with physical and chemical properties similar to water. At the same time, suitable hot water, high temperature and corrosive chemical pumps and oil pumps are sent on the basis of TD high-efficiency vertical pipeline centrifugal pump according to the service temperature and medium. The product has the characteristics of energy saving, low noise and stable performance.

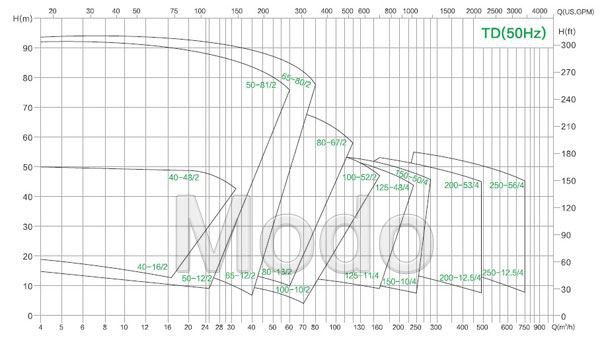

Performance range:

Diameter range: DN40-DN250

Flow range: 12.5m 3/ h-630m3/ h

Lift range: 10m-81m

Power range: 1.1kw-132kw

Power requirements: 3-380v 50Hz~460V/60HZ

Speed: 2900r / min / 1450r / min

Medium temperature: 0-120 ℃

Ambient temperature: ≤ 40 ℃





Main featuresof the Vertical Split coupling Inline pump:



1. Equipped with standard motor and mechanical seal. Compared with similar products, the structure of this inline pump is less vulnerable to the influence of impurities in the pumped liquid. The product is designed in the form of disassembly and assembly that can be pulled out from the top, which can maintain the pump without affecting the pipeline system. 2. The impeller is directly installed on the motor shaft to ensure the concentricity of the pump, so as to enhance the operation stability of the pump and prolong the service life of the pump.



3. The shaft seal adopts mechanical seal or combination of mechanical seal and high-quality cemented carbide sealing ring, which enhances the wear resistance of the seal and can effectively prolong the service life of the pump.



4. The installation and maintenance are convenient without dismantling the pipeline system. The inlet and outlet of the pump are of the same diameter, which simplifies the connection of the pipeline.



5. The series and parallel operation mode of the pump can be adopted according to the needs of flow and head.



6. According to the needs, the suction inlet and discharge outlet can be installed in the same direction or several different directions of 90 °, 180 ° and 270 ° to meet different connection occasions.



7. The pump lift can be increased or decreased according to the needs, and can be met in combination with cutting the outer diameter of the impeller without changing the installation floor area, which is not available for other pumps.





Vertical Split coupling Inline pumpcan be used in the following locations:



·Main circulating pump

·Pump in mixing loop

·Boiler mixed flow pump

·Gas refrigerator pump

·Partial flow filter pump

·Pump for constant pressure system

·Domestic hot water circulation
