Clean Water Transfer Pump

Modo Pump has been focused on clean water transfer pump manufacturing and selling for many years, which is known as a professional manufacturer and supplier of various quality pumps in China. We have gathered many professional and experienced staff, as well as advanced equipment in our factory. Welcome to buy our clean water transfer pump and check the price list with us.

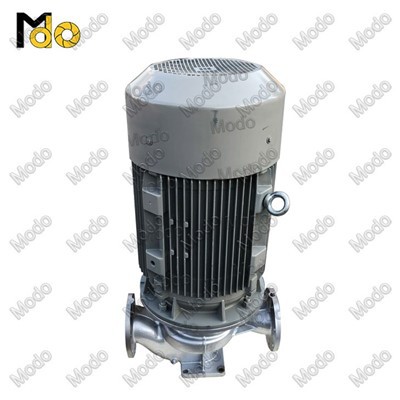

Vertical inline clean water transfer pump is a common centrifugal water pump suitable for conveying clean water or media with chemical properties similar to clean water.

The vertical pipeline pump is installed vertically without a coupling. The pump shaft and motor shaft are integrated, with a compact structure and reduced footprint.

Due to the vertical nature of the pump body, maintenance personnel do not need to dismantle the piping system. They only need to remove the pump coupling nuts to extract all rotor components for easy inspection and maintenance.

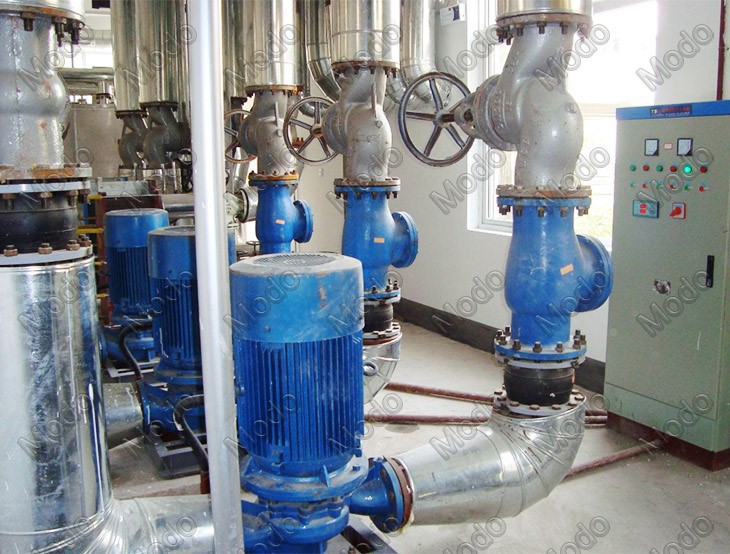

The standard material for vertical inline clean water transfer pump is cast iron, which is generally used to transport clean water without any solid particles. It is mostly used for industrial and urban water supply, high-rise building water supply, fire pressurization, etc. However, through the combination of different materials and sealing methods, vertical pipeline pumps can also be used for high temperature, seawater desalination, and the transportation of chemical solutions.

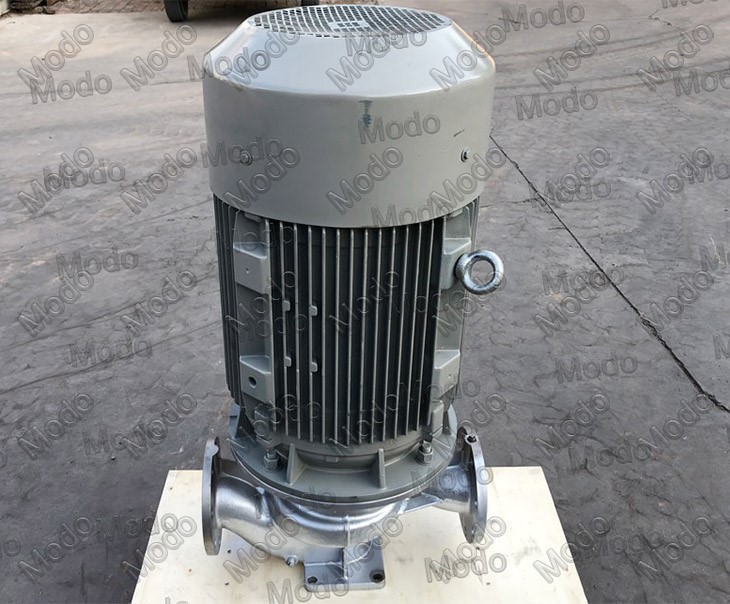

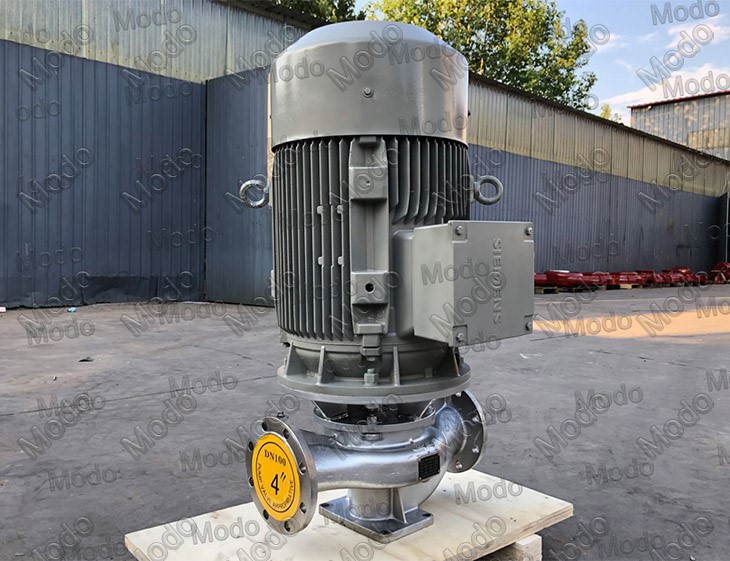

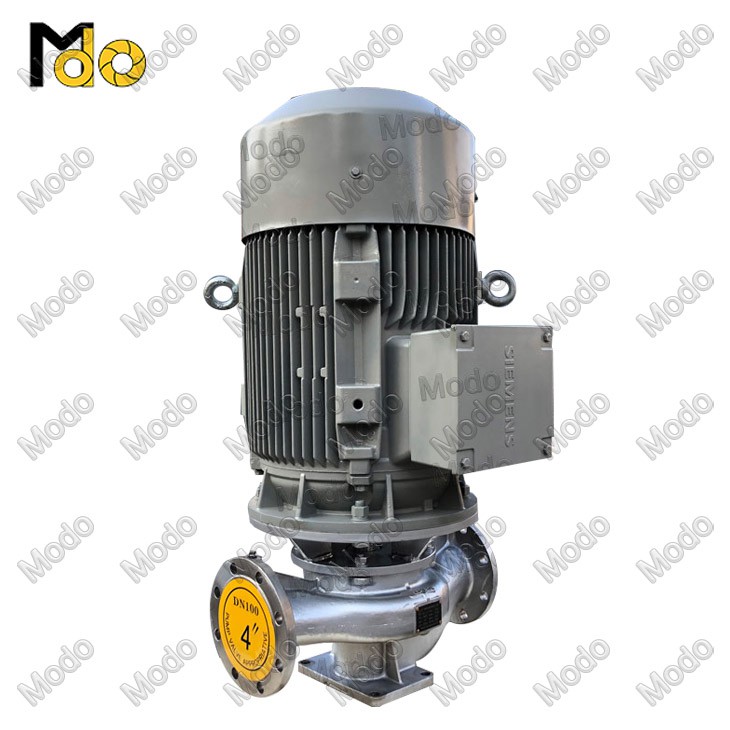

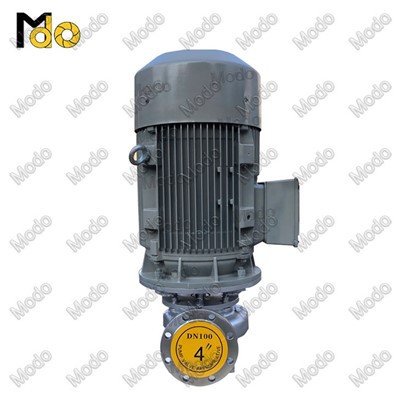

Just like the vertical inline clean water transfer pump we completed last week for pumping seawater, we recommended stainless steel 316 and duplex steel 2205 materials according to the customer's requirements. Compared with 316 material, 2205 material has excellent corrosion resistance, especially in chloride environments. And it has high strength and toughness, especially in low-temperature environments. This makes it perform well in applications that require high stress and impact forces. Although duplex steel 2205 pump price is higher, the customer chose duplex steel finally.
Model: ISG100-200
Flowrate: 96 m3/hr (cubic peter per hour)
Head:48 meters
Speed:3600rpm
Material:
Pump casing: Duplex steel 2205
Impeller:Duplex steel 2205
Shaft:Duplex steel 2205
Shaft seal: Mechanical seal

Motor power: 30kw/440V/50HZ, Siemens Brand
