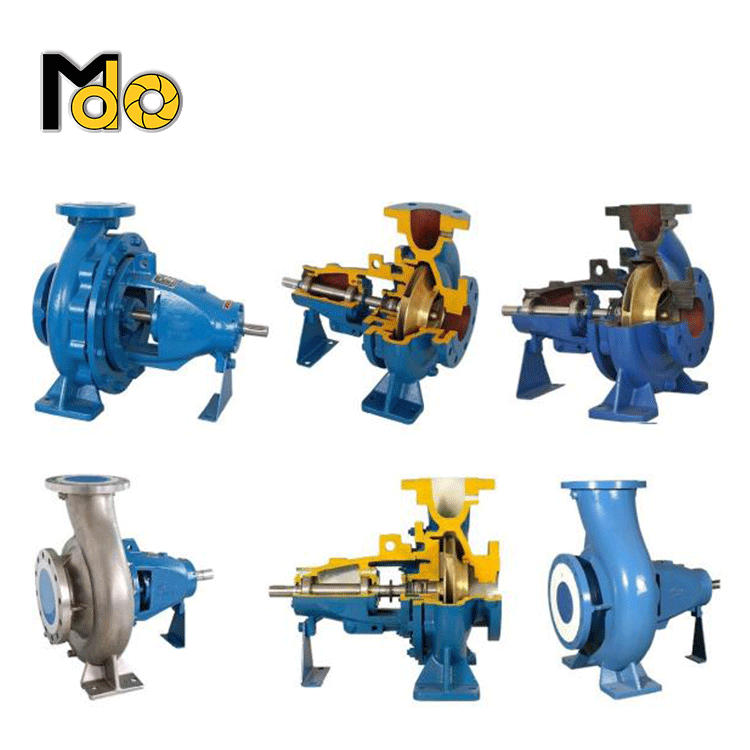

Horizontal End Suction Pump
•Domestic water boosters •Sprinkler/Firefighting •Water treatment plants •Seawater pumping •Chemical / Processing •Food processing •Irrigation •General water transfer
Horizontal end suction pump for clean water
ISA series horizontal end suction pump design standard: designed according to the performance and size specified in European BS EN733 / DIN2425 standard. It adopts the back opening structure and is directly driven by motor or other power through elastic coupling.
Structure: horizontal, single-stage, single suction, volute type, back opening structure .
Outlet diameter (mm): 32 - 250
Flange standard: standard configuration: DIN2501; optional configuration: ANSI B16.5 class 150Lb

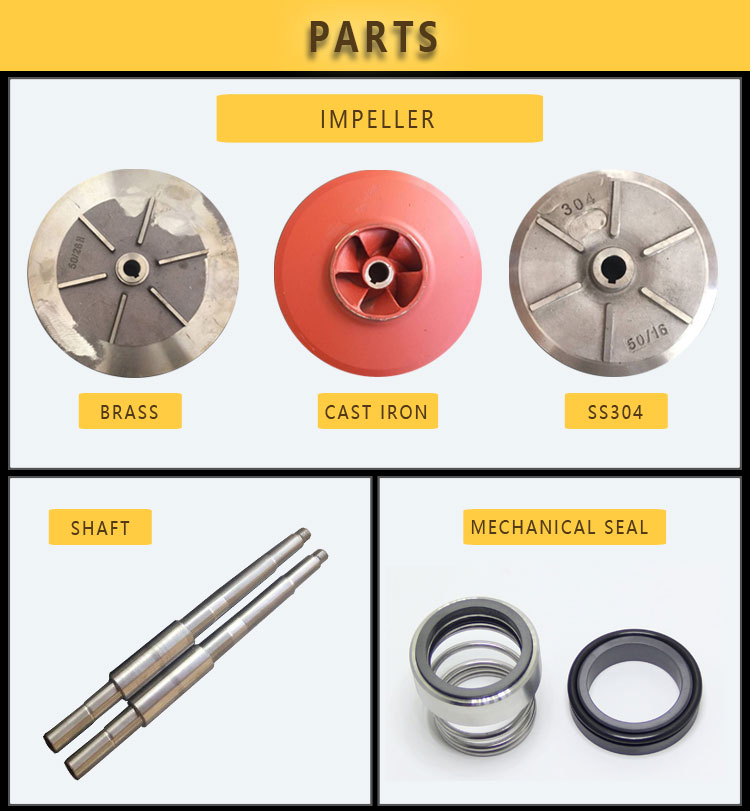

Material
Item | Standard configuration | Optional configuration | |
1 | 2 | ||
| Cast iron | Ductile iron | SS304/316 |
|
| Brass |
|
| 2Cr13 | 45# steel | SS304/316 |
| Mechanical seal | Packing gland | |
Technical Parameters
Flow (Q): 2-1100 m3 / h |
Head (H): 2-152m |
Rated speed: 1450 ~ 2900 RPM (50Hz), 1750 ~ 3500 rpm (60Hz) |
Rated temperature: - 10 to 105 Celsius |
Maximum working pressure: 1.2 MPa, special requirements up to 1.6 MPa |
Application:
• Seawater pumping
• Chemical / Processing
• Food processing
• General water transfer
• HVAC heating equipment, ventilation equipment and air conditioning equipment
• Fire fighting
• Water circulation
• Agricultural irrigation
• Cooling
• Pressurization
