125mm Horizontal Split Case Pump

Modo Pump has been focused on 125mm horizontal split case pump manufacturing and selling for many years, which is known as a professional manufacturer and supplier of various quality pumps in China. We have gathered many professional and experienced staff, as well as advanced equipment in our factory. Welcome to buy our 125mm horizontal split case pump and check the price list with us.

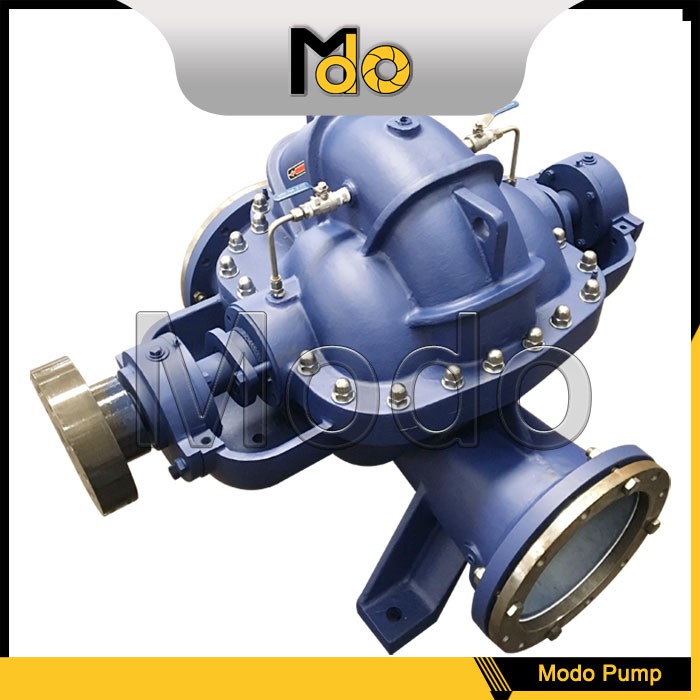

125mm horizontal split case pump

The 125mm horizontal split case pump is a single-stage double suction horizontal split centrifugal water pump. It is used totransport pure water and the liquid which physical and chemical nature is similar with water the maximum temperature isn't more than 80 ℃. This series of pump is suitable for water supply and drainage in factories, mines and cities, power station, drainage and irrigation of farming, and kinds of hydraulic projects.



·Usage:	Clean water/Sea water
·Type:	MS Double Suction Water Pump
·Capacity	68 m3/hr to 30000 m3/hr
·Head	6 m to 230 m
·Speed:	585 rpm/730rpm/980rpm/1450rpm/2980rpm
·Outlet Diameter:	150mm to 1600mm (6"up to 64")
·Temperature	Max.: 80 ℃
·Drive	Diesel or Electric
·Shaft	4140 Mild Steel
·Shaft Sleeve	Cast iron/3 Cr13/40 Cr
·Pump Casing	Cast iron/Cast steel/SS 304/SS316
·Impeller	Cast iron/Cast steel/SS 304/SS316/Bronze
·Shaft seal	Mechanical seal/Packing gland seal
·Seal ring	Cast iron/ZCuZn16Si4/ZCuSn10Zn2







Performance Paramete



Meaning of Model:

250S-39A

250-- Pump inlet diameter(mm)

S-- Single stage double suction

39-- Rated head

A-- Impeller via first cut



Model	Inlet/Outlet (mm)	Capacity m³/h	Head m	Speed (rpm)	Shaft power(kw)
150S-78	150/150	160	78	2900	45
150S-50	150/150	160	50	2900	27.3
200S-95	200/200	280	95	2900	94
200S-63	200/200	280	63	2900	59.3
200S-42	200/200	280	42	2900	37.7
250S-65	250/250	485	65	1450	108.7
250S-39	250/250	485	39	1450	62.1
250S-24	250/250	485	24	1450	36.9
250S-14	250/250	485	14	1450	21.7
300S-90	300/300	790	90	1450	249.8
300S-58	300/300	790	58	1450	148.5
300S-32	300/300	790	32	1450	79
300S-19	300/300	790	19	1450	46.9
300S-12	300/300	790	12	1450	31.1
350S-125	350/350	1260	125	1450	531
350S-75	350/350	1260	75	1450	304
350S-44	350/350	1260	44	1450	177.6
350S-26	350/350	1260	26	1450	101.5
350S-16	350/350	1260	16	1450	63.8
500S-13	500/500	2020	13	980	86.2
500S-35	500/500	2020	35	980	219
500S-98	500/500	2020	98	980	678
600S22	600/600	3241	22	980	231.8
600S75	600/600	3060	75	980	694.4
800S32	800/800	5500	32	730	538.5
800S47	800/800	5500	47	730	782.2
