Product

Sand And Gravel Pump

Name: Sand And Gravel Pump
Brand: Modo Pump Co.,Ltd
SKU: 107365887

Sand and gravel pump Specification of sand and gravel pump: Sand and gravel pump is mainly used for the continuous transportation of strong abrasive materials which are too large to be transported by general slurry pump. Sand and gravel pump is suitable for dredger dredging, river dredging,...

Send Inquiry

Product Details

Sand and gravel pump

Specification of sand and gravel pump:

Sand and gravel pump
Pump Model	Max.Power (kw)	Capacity(m3/h)	Head(m)	Speed(rpm)	Impeller Dia.(mm)	NPSH(m)
6/4D-G	60	36-250	5-52	600-1400	378	2.5-3.5
8/6E-G	120	126-576	6-45	800-1400	378	3-4.5
10/8F-G	560	216-936	8-52	500-1000	533	3-7.5
10/8F-HG	560	180-1440	24-80	500-950	711	2.5-5
12/10F-CG	600	360-1440	10-60	400-850	667	1.5-4.5
12/10G-GH	1200	288-2808	16-80	350-700	950	2~10
14/12G-G	1200	576-3024	8-70	300-700	864	2~8
14/12F-G	600	720-3600	18-44	300-500	1016	3~9
16/14G-GH	1200	324-3600	26-70	250-500	1270	3~6
18/16G-GH	1200	1080-5400	12-48	200-400	1067	3~6

Sand and gravel pump is mainly used for the continuous transportation of strong abrasive materials which are too large to be transported by general slurry pump. Sand and gravel pump is suitable for dredger dredging, river dredging, mining and metal smelting slag transportation. GH type is high lift sand and gravel pump.

Maybe you will ask what is the difference of pump and this sand and gravel pump ?Let me tell you.This sand and gravel pump has good performance of NPSH and wear-resistance.Sometimes when NPSH has high requirement,sand and gravel pump could not reach to the requirement,this type sand and gravel pump is more suitable .

Model explanation:

8/6E-G

8: 8inch,intlet of sand and gravel pump

6: 6inch,outlet of sand and gravel pump

E: Frame type of sand and gravel pump

G: Gravel

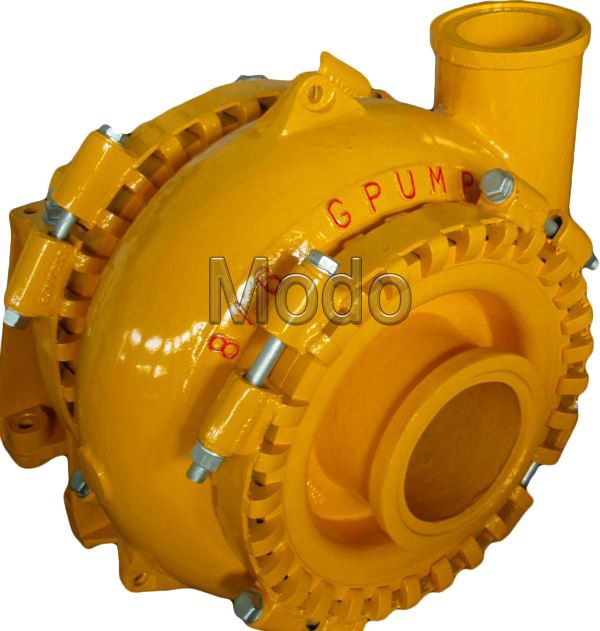

Photos of sand and gravel pump:

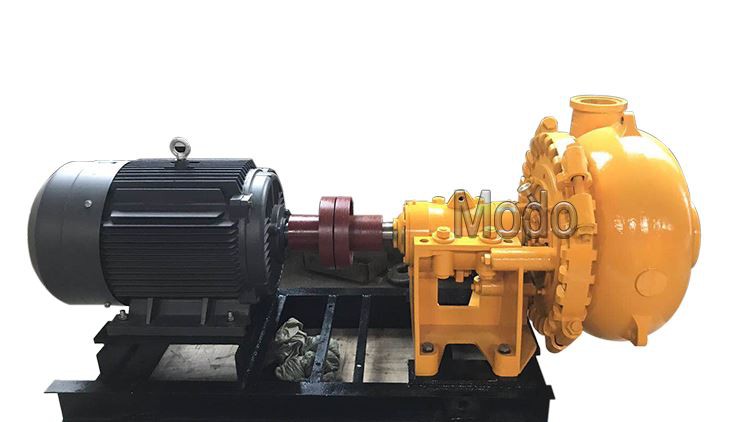

The sand and gravel pump can be driven by electric motor:

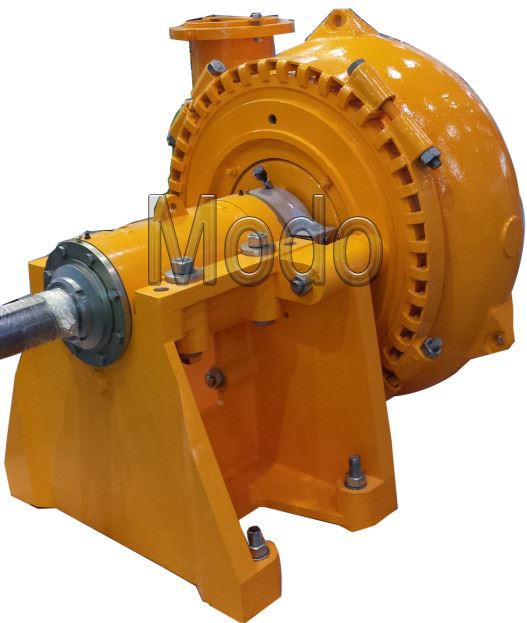

horizontal sand and gravel pump
