200kw Centrifugal Submersible Pump

Name: 200kw Centrifugal Submersible Pump
Brand: Modo Pump Co.,Ltd
SKU: 55584196

200kw Underwater Centrifugal Submersible Pump with Agitator Good feedback of 200kw underwater centrifugal submersible pump with agitator Today I am so glad that client is satisfy with our pump quality.Expecting his new orders! Now we'd like to introduce our 200kw underwater centrifugal...

Send Inquiry

Product Details

200kw Underwater Centrifugal Submersible Pump with Agitator

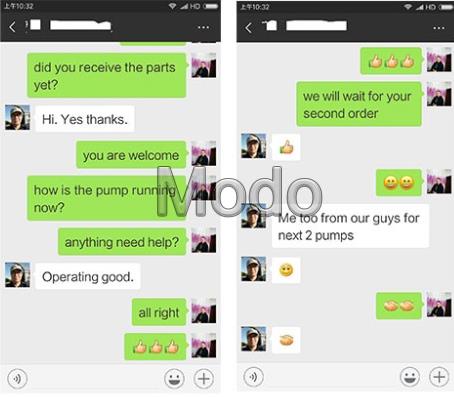

Good feedback of 200kw underwater centrifugal submersible pump with agitator

Today I am so glad that client is satisfy with our pump quality.Expecting his new orders!

Now we'd like to introduce our 200kw underwater centrifugal submersible pump with agitator:It is heavy duty submersible slurry pump,which designed to handle a wide range of slurries and abrasive particles in submersible application in mining and industry.

200kw underwater centrifugal submersible pump with agitator specification:

·Usage:	Slurry, Water & Sewage
·Type:	MSS Submersible Slurry Pump
·Capacity	Up to 2400 m3/hr (666L/S)
·Head	Up to 60 m ( 196 feet )
·Speed:	Up to 1480 rpm
·Discharge:	80-400mm (3.15’’ up to 16’’)
·Temperature	Max.: 80℃
·Drive	Hydraulic or Electric
·Shaft	420 Stainless Steel
·Shaft Sleeve	420 Stainless Steel
·Bearing Covers	Cast Iron
·Back Plate	27% Chrome White Iron or 316 Stainless Steel / Duplex1
·Agitator	27% Chrome White Iron or 316 Stainless Steel / Duplex1
·Motor Mechanical Seal	304 Stainless Steel
·Pump Casing	27% Chrome White Iron or 316 Stainless Steel / Duplex1
·Impeller	27% Chrome White Iron or 316 Stainless Steel / Duplex1

200kw underwater centrifugal submersible pump with agitator model selection:

Model
Outlet Dia. (mm)
Capacity (m³/h)
Head (m)
Power (Kw)
Speed (r/min)
Max.Dia.of Solid (mm)
Pump Weight (kg)
SS45-15-5.5
80
45
15
5.5
1460
13
100
SS15-20-5.5
80
15
20
5.5
1460
13
100
SS30-30-7.5
80
30
30
7.5
1460
13
114
SS50-26-11
80
50
26
11
1460
13
165
SS75-25-15
100
75
25
15
1460
13
220
SS150-18-18.5
150
150
18
18.5
980
32
550
SS200-12-22
150
200
15
22
980
45
580
SS60-46-30
150
60
46
30
980
21
700
SS150-30-30
150
150
30
30
980
21
550
SS300-20-37
200
300
20
37
980
28
775
SS200-30-45
150
200
30
45
980
36
1000
SS500-15-45
250
500
15
45
980
46
1100
SS250-35-55
150
250
35
55
980
36
1140
SS600-15-55
250
600
15
55
980
46
1140
SS350-35-75
200
350
35
75
980
28
1550
SS500-20-75
200
500
20
75
980
25
1550
SS200-60-90
150
200
60
90
980
14
1550
SS400-40-90
200
400
40
90
980
28
1550
SS600-30-110
200
600
30
110
980
28
1970
SS1000-18-110
300
1000
18
110
980
50
1970
SS500-45-132
200
500
45
132
980
28
2000
SS1000-22-132
300
1000
22
132
980
50
2000
SS650-52-160
200
650
52
160
980
28
2650
SS780-50-185
300
780
50
185
980
38
3330
SS800-55-220
300
800
55
220
980
38
3400
SS1250-35-220
350
1250
35
220
980
45
3400
SS1750-30-250
350
1750
30
250
980
55
3500
SS2000-35-315
400
2000
35
315
980
60
3700

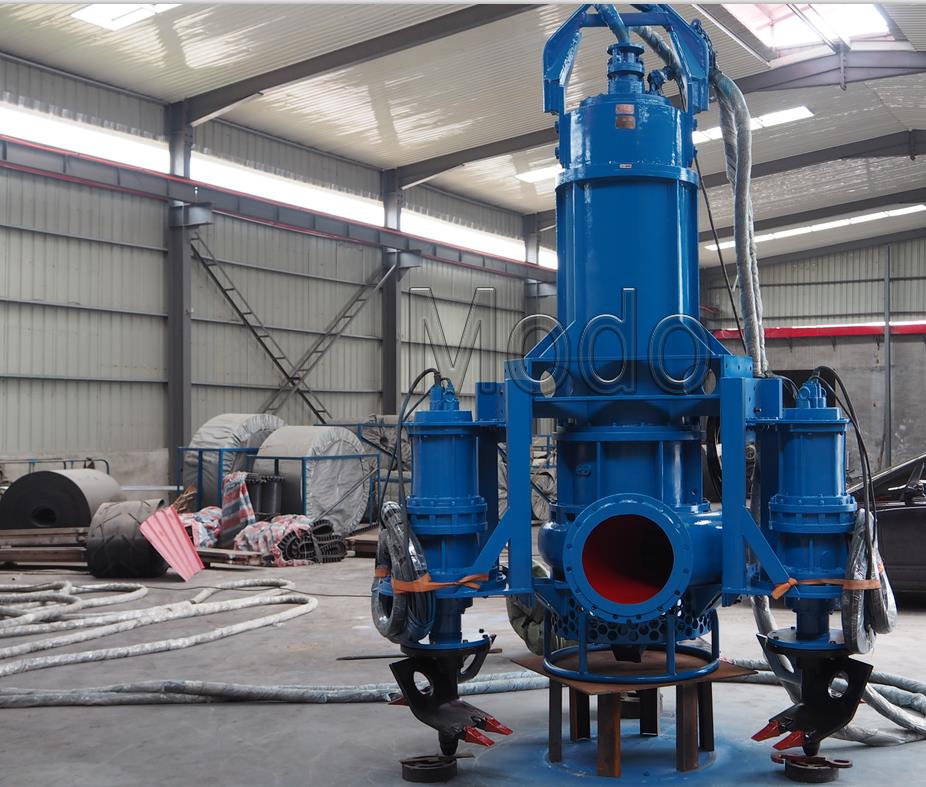

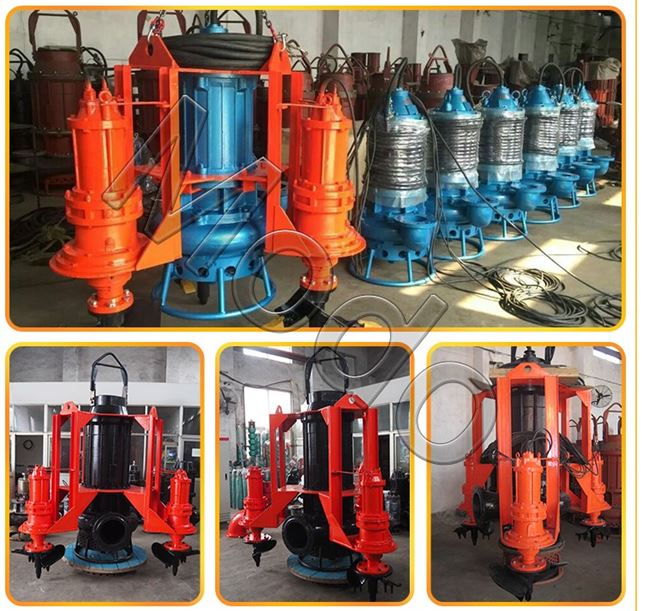

200kw underwater centrifugal submersible pump with agitator photos:

Contact us for your solution:

miya@modopump.cn

Hot Tags: 200kw Centrifugal Submersible Pump China, manufacturer, supplier, factory, price list, buy

750GPM Water Pump Supplier

500m3/h Mining Slurry Pump

Send Inquiry

Model	Outlet Dia. (mm)	Capacity (m³/h)	Head (m)	Power (Kw)	Speed (r/min)	Max.Dia.of Solid (mm)	Pump Weight (kg)
SS45-15-5.5	80	45	15	5.5	1460	13	100
SS15-20-5.5	80	15	20	5.5	1460	13	100
SS30-30-7.5	80	30	30	7.5	1460	13	114
SS50-26-11	80	50	26	11	1460	13	165
SS75-25-15	100	75	25	15	1460	13	220
SS150-18-18.5	150	150	18	18.5	980	32	550
SS200-12-22	150	200	15	22	980	45	580
SS60-46-30	150	60	46	30	980	21	700
SS150-30-30	150	150	30	30	980	21	550
SS300-20-37	200	300	20	37	980	28	775
SS200-30-45	150	200	30	45	980	36	1000
SS500-15-45	250	500	15	45	980	46	1100
SS250-35-55	150	250	35	55	980	36	1140
SS600-15-55	250	600	15	55	980	46	1140
SS350-35-75	200	350	35	75	980	28	1550
SS500-20-75	200	500	20	75	980	25	1550
SS200-60-90	150	200	60	90	980	14	1550
SS400-40-90	200	400	40	90	980	28	1550
SS600-30-110	200	600	30	110	980	28	1970
SS1000-18-110	300	1000	18	110	980	50	1970
SS500-45-132	200	500	45	132	980	28	2000
SS1000-22-132	300	1000	22	132	980	50	2000
SS650-52-160	200	650	52	160	980	28	2650
SS780-50-185	300	780	50	185	980	38	3330
SS800-55-220	300	800	55	220	980	38	3400
SS1250-35-220	350	1250	35	220	980	45	3400
SS1750-30-250	350	1750	30	250	980	55	3500
SS2000-35-315	400	2000	35	315	980	60	3700
