Single Stage End Suction Centrifugal Pump

Modo Pump has been focused on single stage end suction centrifugal pump manufacturing and selling for many years, which is known as a professional manufacturer and supplier of various quality pumps in China. We have gathered many professional and experienced staff, as well as advanced equipment in our factory. Welcome to buy our single stage end suction centrifugal pump and check the price list with us.



The ISO series electric single stage end suction centrifugal pump is all horizontal, single-stage, single suction, and back-pull-out centrifugal pumps, which can be directly driven by an electric motor through an elastic coupling. This type of centrifugal pump meets the ISO2858 international standard.

Performance range

Flow rate: up to 1000m3/h
Head: 110m
Working pressure: 16bar and 25bar
Medium temperature range: -20 ℃ to+140 ℃
Outlet diameter: DN50-DN300

Structure

The ISO series single stage end suction centrifugal pump adopts a single-stage single suction centrifugal pump, with axial inlet and radial outlet. The bottom of the pump casing is fixed to the base.
The pump and motor are connected by a semi elastic coupling.
There are two options to choose from: packing seal and mechanical seal

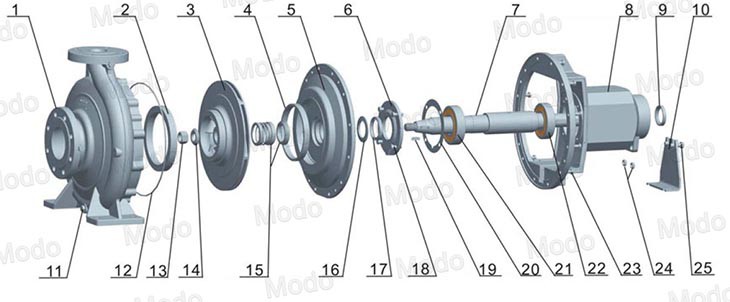

1.Casing      2.Front- wear ring      3.Impeller       4.Back-Wear Ring       5.Casing Cover       6.Bearing Cover       7.Shaft        8.Bearing Housing

9.Rear Oil Seal        10.Support Foot        11.Drainage plug & Washer        12.Casing O-Ring        13.Impeller Nut       14.Washer         15.Mechanical Seal

16.Slinger             17.Front Oil Seal           18.Bolt                 19.Impeller Key                20.Gasket               21.Front-Bearing            22.Rear-Bearing          23.Bolt           24. Nut            25.Bolt

Features:

Adopting a back-pull-out structure, there is no need to remove the pump casing and pipelines during maintenance.
There are four types of pump shafts for all pump types, greatly improving the interchangeability of parts.
The impeller of single stage end suction centrifugal pump can be cut according to the flow and head requirements of the customer to meet the actual needs of different projects.
There are wear-resistant mouth rings in front and behind the impeller, which facilitate the maintenance of the water pump, improve the service life of the pump casing and impeller, and provide assurance for maintaining the high efficiency of the water pump for a long time.
Optional detachable coupling, convenient for customers to maintain the water pump without moving the motor.

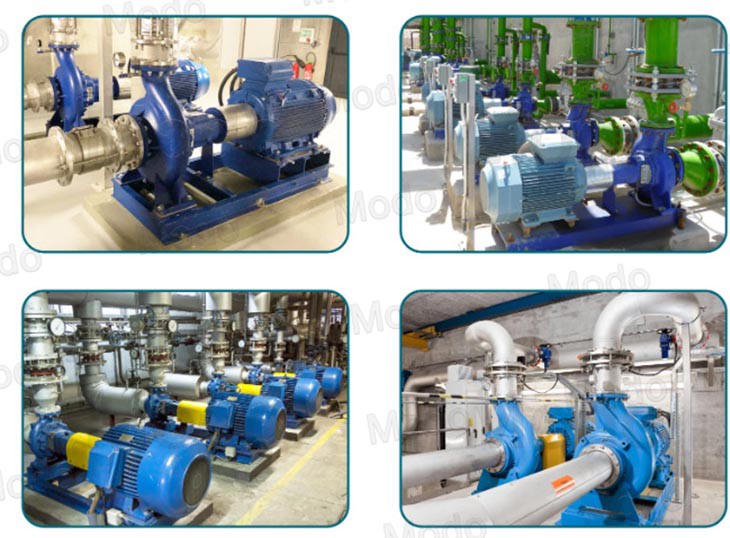

Applications:

Water supply, heating, air conditioning system, pressurized water supply, fire sprinkler system, spraying, irrigation, swimming pool, fountain water supply, etc.
