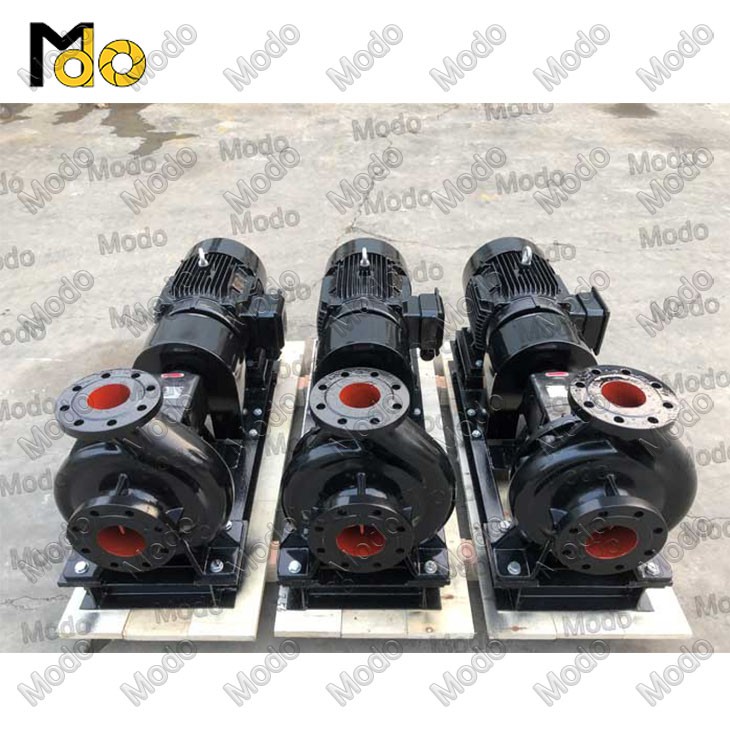

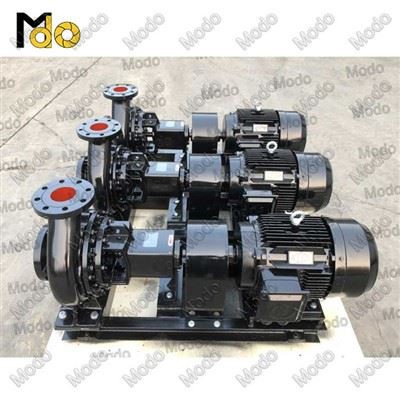

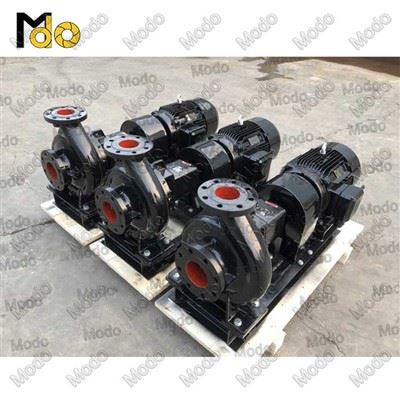

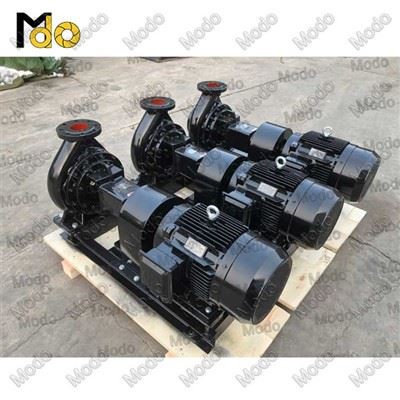

Horizontal End Suction Pumps



The ISA type single stage centrifugal Horizontal end suction pump has the advantages of small volume, light weight, high efficiency, reasonable structure, good universality, stable and reliable performance, convenient disassembly and maintenance, etc. It can be widely used to suck or transport clear water below 80 ℃ or liquids with similar physical and chemical properties.

The ISA series horizontal end suction pumps can run at both 50hz and 60hz.

The 50hz has 2 speeds: 2900rpm and 1450rpm.

The 60hz has 2 speeds: 3600rpm and 1750rpm.

ISA type single stage single suction centrifugal Horizontal end suction pumps performance range:

Flow rate: 24-1000m3/h
The pump body has a pressure resistance of 1.0MPa; 1.6MPa
Lift: 14.7-52m
Electric motor power: 3~355KW
Suction/discharge diameter: 50~ 350 (mm)



Features:

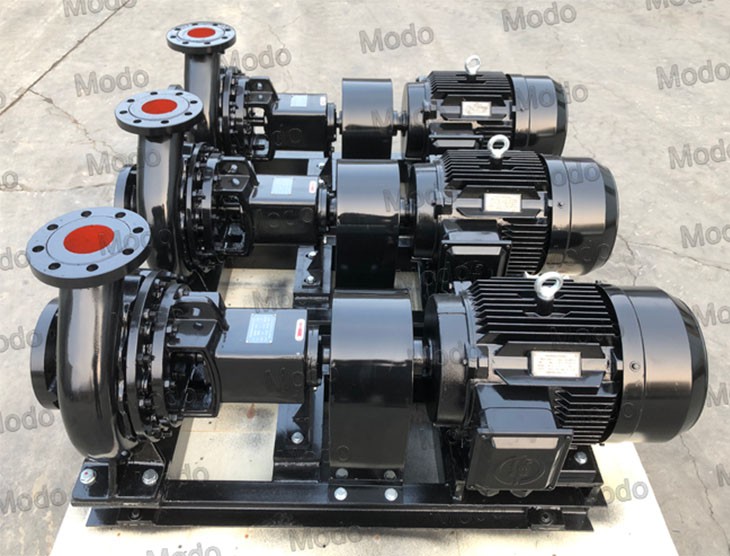

The pump body and tail cover bearing body of Horizontal end suction pumps are separated from the back of the impeller, which is a rear open door structure. Its advantage is that it is easy to maintain, and the pump body and inlet/outlet water pipes are not moved during maintenance. Just disconnect the coupling and move the motor to remove the impeller and other parts for maintenance.Its simple yet effective structure guarantees reliable and efficient pumping operations for an array of applications.

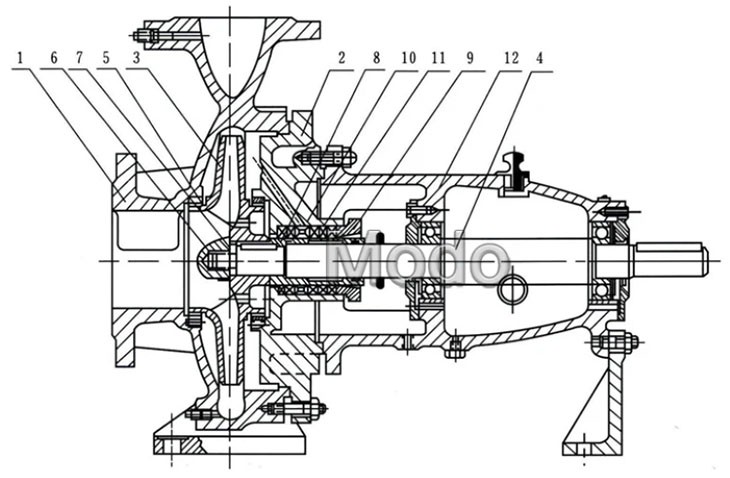

1.Pump casing             2.Pump cover             3.Impeller                  4.Shaft                    5.Sealing ring                 6.Impeller nut
7.Lock washer             8.Shaft sleeve             9.Packing gland             10.Packing ring             11.Packing             12.Bearing assembly

The Horizontal end suction pumps are equipped with multiple sealing devices, usually the packing box seal. If necessary, mechanical seals can also be used. There are two types of mechanical seals available: single end mechanical seal and double end mechanical seal.

All water pumps adopt precision manufactured impellers and NTN bearings, and the bearings are injected with high-temperature lubricating grease when leaving the factory.

There are two types of impeller materials for water pumps: cast iron and stainless steel. The main shaft of the water pump is made of SS420 material.

The rotation direction of this series of pumps is counterclockwise when viewed from the inlet direction.

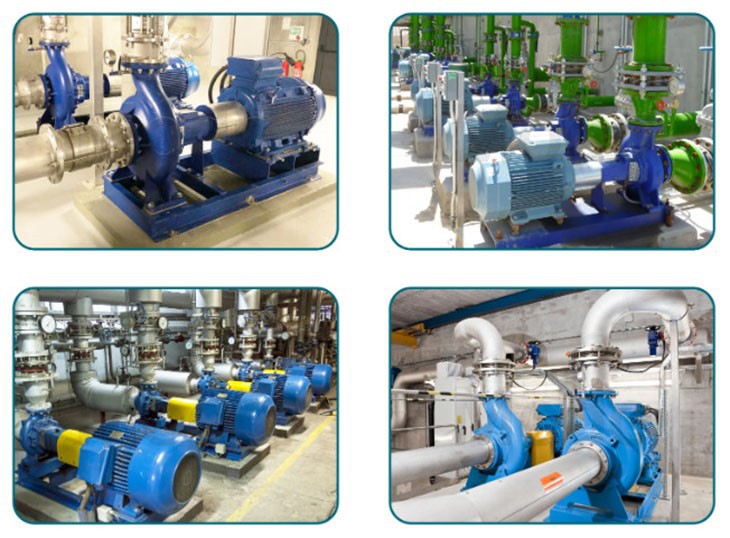

With many material options available, the horizontal end suction pump can suit different media and environments. Additionally, we offer different drive options such as diesel engine and electric motor drive to ensure maximum convenience for all users.



FAQ

To select the suitable model for you, please kindly let us know the information as follows:



1. What is the required flow rate for the pump?

2. What is the necessary head pressure (lift) for the pump?

3. What type of medium will the pump handle, including any specific properties such as viscosity or temperature?

4. What other factors should be considered when selecting a pump, such as size, durability, or cost?
