Vertical Submersible Pump

Modo Pump has been focused on vertical submersible pump manufacturing and selling for many years, which is known as a professional manufacturer and supplier of various quality pumps in China. We have gathered many professional and experienced staff, as well as advanced equipment in our factory. Welcome to buy our vertical submersible pump and check the price list with us.



 vertical submersible pump

vertical submersible pump is designed to handle waterwater in tough conditions such as effluent waste handling,onsite waterwater treatment,and septic or municipal sewer system pumping application.

--Protection:Thermal overload protetion to help prolong pump life,

vertical submersible pump features:

--stainless steel 304/316 materials are adopted for corrosive -resistance.

-the shaft is made of stainless steel

--with float swith

vertical submersible pump model selection:

Type	Outlet Dia. (mm)	Capacity (m3/h)	Head (m)	Power (kw)	Efficiency (%)
50WQ15-8-0.75	50	15	12	0.75	52
50WQ25-36-7.5	50	30	15	7.5	48
65WQ30-10-2.2	65	30	10	2.2	62
65WQ30-35-7.5	65	30	35	7.5	50
80WQ50-8-2.2	80	50	8	2.2	60
100WQ80-7-3	100	80	7	3	64
150WQ150-10-7.5	150	150	10	7.5	72
200WQ300-10-15	200	300	10	15	74
250WQ500-10-30	250	500	10	30	72
300WQ700-19-55	300	700	19	55	75
350WQ1100-25-110	350	1100	25	110	76
400WQ2000-23-185	400	2000	23	185	80
500WQ3000-15-132	500	3000	15	185	72
600WQ4000-20-315	600	4000	20	315	77

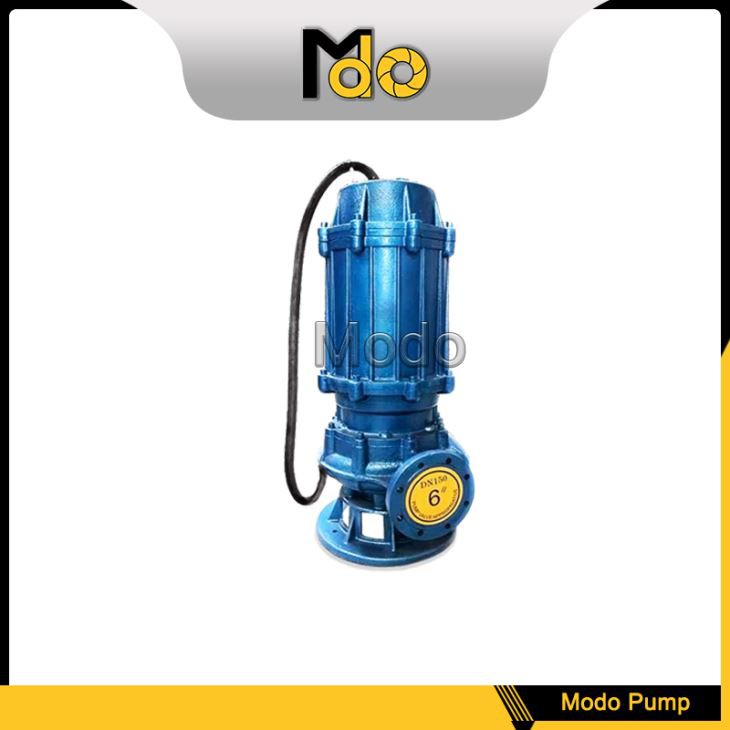

 vertical submersible pump photos:
