Sludge pump
Sludge pump,we have two types for recommendation.One is horizontal sludege pump,the other is submersible sludge pump.Today let us talk about horizontal sludge pump types.
Specification of Sludge pump types:
| Type | Max. power | Capacity | Head | Speed | Max.Eff | NPSH | Impeller Dia. | Max.particle size |
| (kw) | (m³/h) | (m) | (r/min) | (%) | (m) | (mm) | (mm) | |
| MAH1.5-1 | 15 | 12-28 | 6-65 | 1200-3800 | 40 | 2-4 | 150 | 14 |
| MAH2-1.5 | 15 | 32-72 | 6-58 | 1200-3200 | 45 | 3.5-8 | 185 | 19 |
| MAH3-2 | 30 | 39-86 | 12-64 | 1300-2700 | 55 | 4-6 | 215 | 25 |
| MAH4-3 | 60 | 86-198 | 9-52 | 1000-2200 | 71 | 4-5 | 245 | 28 |
| MAH6-4 | 120 | 162-360 | 12-56 | 800-1500 | 68 | 5-8 | 365 | 44 |
| MAH8-6 | 120 | 360-830 | 10-61 | 500-1140 | 72 | 2-9 | 510 | 63 |
| MAH10-8 | 260 | 612-1368 | 11-61 | 400-850 | 71 | 4-10 | 685 | 76 |
| MAH12-10 | 560 | 936-1980 | 7-68 | 400-750 | 82 | 1-5 | 760 | 86 |
| MAH14-12 | 560 | 1260-2772 | 13-63 | 300-600 | 77 | 3-10 | 965 | 90 |

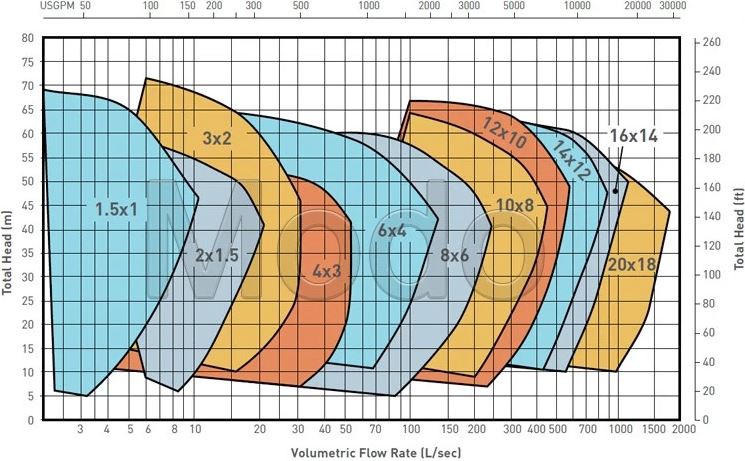

Performance chart of sludge pump types:

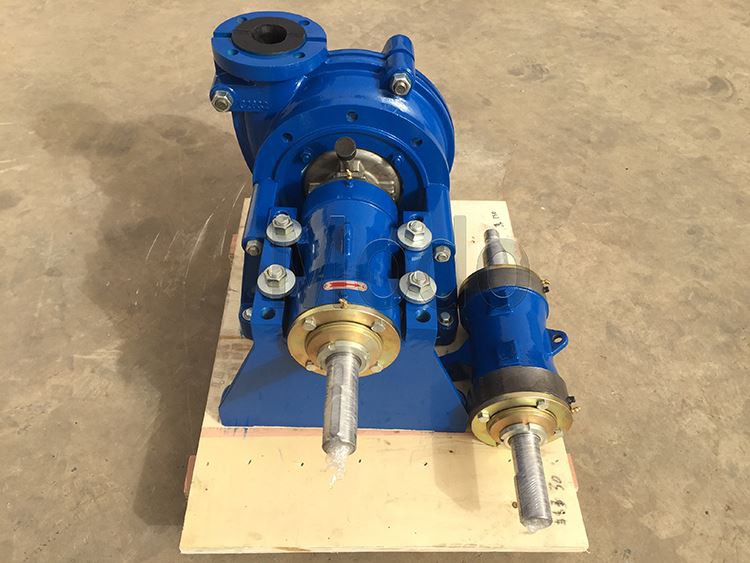

Photos of Wet ends of sludge pump types
We have PU ,ceramic ,stainless steel304,stainless steel316,
high chrome impeller of sludge pump types: PU impeller of sludge pumps:
stainless steel impeller of sludge pump types:
Many of our client of sludge pump supply service to kinds of mines,different materials of wet ends was required.
We will choose out the most suitable sludge pump types to save their cost &make the pump a long life.
Now email us for your solution!
