Centrifugal Slurry Horizontal Pump In Mine
Centrifugal Slurry Horizontal Pump in mine The MAH series Mineral Processing Heavy Duty Centrifugal Slurry Horizontal Pump is designed for the continuous pumping of highly abrasive, high density slurry with minimal maintenance requirements. The MAH series slurry pump will maintain high...
Centrifugal Slurry Horizontal Pump in mine

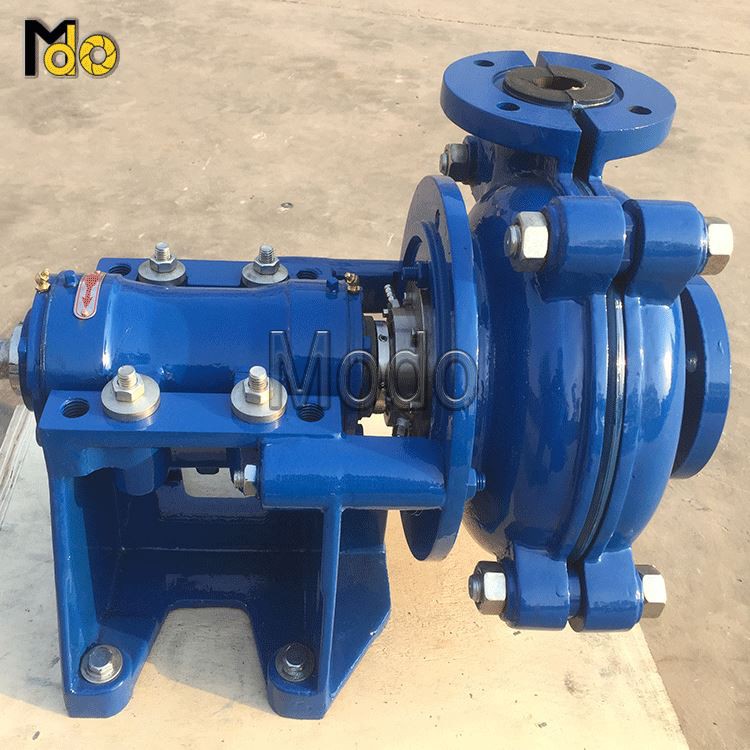

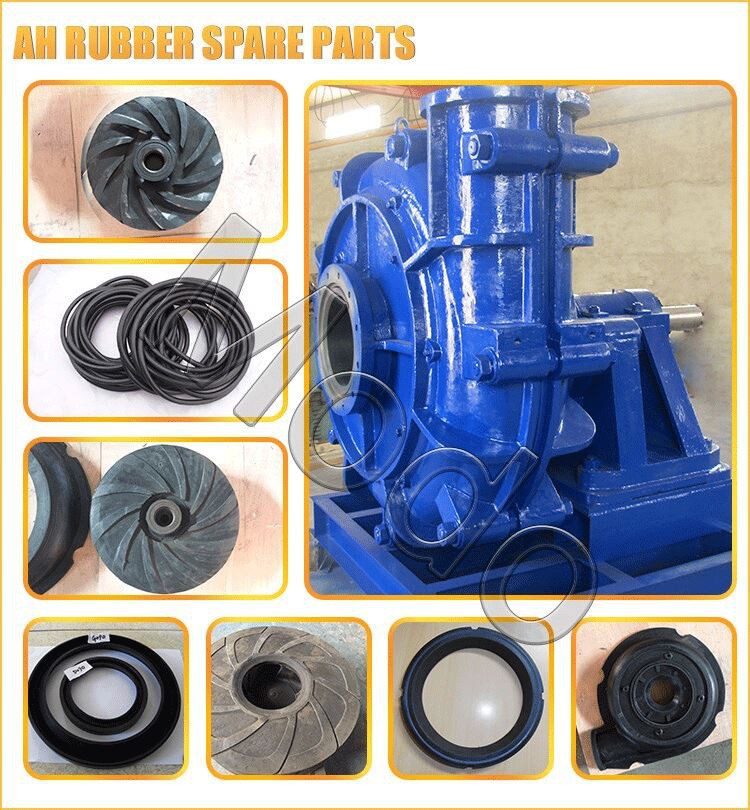

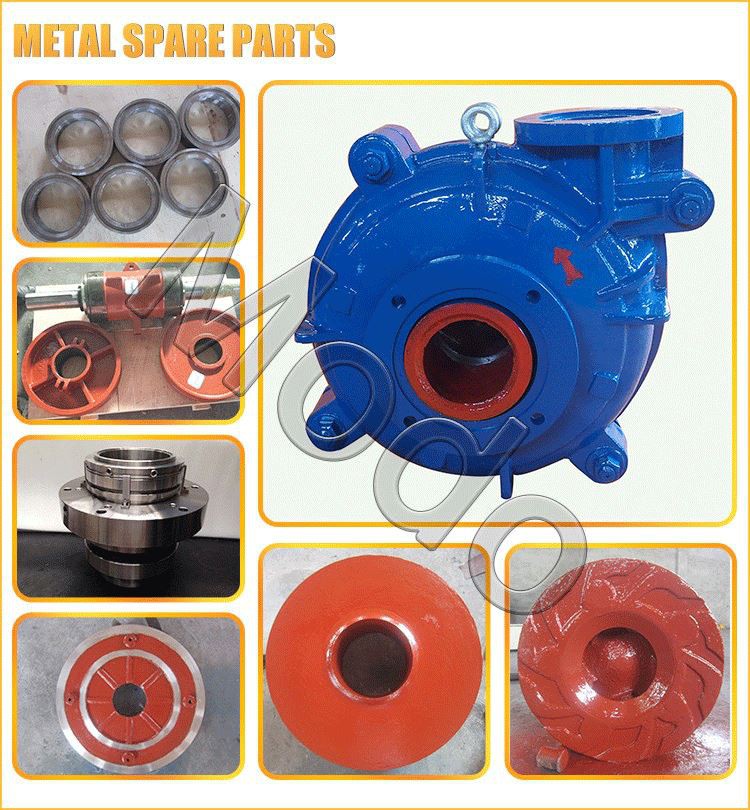

1.5/1B-MAH slurry horizontal pump used in mine is mainly used in mines, electric power, metallurgy and coal. The overflow parts can be replaced by two kinds of metal materials and rubber materials according to the pH value, hardness, concentration and other factors of the slurry. The utility model has the advantages of wear resistance and corrosion resistance, long service life and convenient maintenance.
The paremeters of slurry horizontal pump in mine as below:
Model | 1.5x1B-MAH |
Capacity(m³/h) | 12.6-28.8 |
Head (m) | 6-68 |
Discharge size (mm) | 50 |
Shaft seal | Mechanical seal, Packing seal, Expeller seal, |
Max. efficiency | 40% |
Impeller numbers | 5 |
Impeller diameter(mm) | 152 |
NPSH(r)(m) | 2-4 |

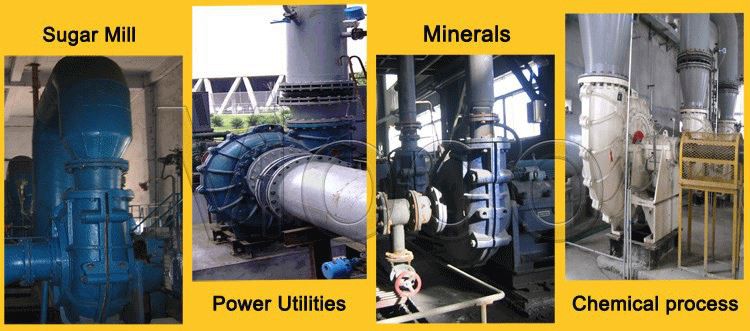

Applications:
1 | Typical Applications |
2 | Chemical Process |
3 | Heavy Minerals |
4 | Paper and Pulp |
5 | Mill Discharge |
6 | Sugar Beet |
Our service of the slurry horizontal pump minging use
| 1. | Reply your enquiry in 24 working hours, any time you can contact me. |
| 2. | Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs. |
| 3. | Timely delivery |
| 4. | Packing can make client brand. |
| 5. | Good after-sale service |
Please contact us for detail if you are interest.
