Industrial Sludge Pump

Modo Pump has been focused on industrial sludge pump manufacturing and selling for many years, which is known as a professional manufacturer and supplier of various quality pumps in China. We have gathered many professional and experienced staff, as well as advanced equipment in our factory. Welcome to buy our industrial sludge pump and check the price list with us.



How to make a Industrial Sludge Pump have a long service life?
Industrial sludge pumps are essential equipment in various industries that deal with waste fluids. These pumps are designed to transfer and move different types of sludge, including wastewater, chemicals, and other abrasive materials. To ensure that your industrial sludge pump has a long service life, there are several steps you can take to maintain and operate it properly.

1. Regular Maintenance and Inspection

Regular maintenance and inspection of your sludge pump are crucial to keeping it in good working condition. Maintenance should be carried out periodically, and any necessary repairs should be performed immediately. A maintenance schedule should be established, and all maintenance procedures should be carried out according to the manufacturer's recommendations.

2. Proper Lubrication

The components of a sludge pump often operate at high speeds and under high loads. Proper lubrication is essential to extend the life of the pump and prevent excessive wear and tear on its moving parts. Ensure you use the right lubricant, and the pump is lubricated according to the manufacturer's guidelines.

3. Cleanliness

Industrial sludge pumps often work in harsh environments that are prone to contamination. The pump's internal components can become damaged or worn out due to dirt, dust, and other contaminants. Regular cleaning of the pump will reduce the risk of damage to its internal parts.

4. Proper Installation and Operation

Proper installation and operation of an industrial sludge pump are essential to its longevity. Ensure the pump is installed according to the manufacturer's instructions. Proper operation includes monitoring the pump's performance and avoiding situations that could damage it, such as running it dry.

5. Use High-Quality Parts

The use of high-quality components is essential for the longevity of industrial sludge pumps. Low-quality parts can break easily, leading to expensive repairs or replacement of the pump. Always use high-quality replacement parts when repairing the pump.

In conclusion, the key to a long service life for industrial sludge pumps is proper maintenance and operation. Proper installation and adherence to the right operating procedures, coupled with regular inspections and quality parts, will ensure the pump delivers the desired results and lasts a long time.

Available Models of Industrial Sludge Pump



Type	Max. power	Capacity	Head	Speed	Max.Eff	NPSH	Impeller Dia.	Max.particle size
	(kw)	(m³/h)	(m)	(r/min)	(%)	(m)	(mm)	(mm)
MAH1.5-1	15	12-28	6-65	1200-3800	40	2-4	150	14
MAH2-1.5	15	32-72	6-58	1200-3200	45	3.5-8	185	19
MAH3-2	30	39-86	12-64	1300-2700	55	4-6	215	25
MAH4-3	60	86-198	9-52	1000-2200	71	4-5	245	28
MAH6-4	120	162-360	12-56	800-1500	68	5-8	365	44
MAH8-6	120	360-830	10-61	500-1140	72	2-9	510	63
MAH10-8	260	612-1368	11-61	400-850	71	4-10	685	76
MAH12-10	560	936-1980	7-68	400-750	82	1-5	760	86
MAH14-12	560	1260-2772	13-63	300-600	77	3-10	965	90

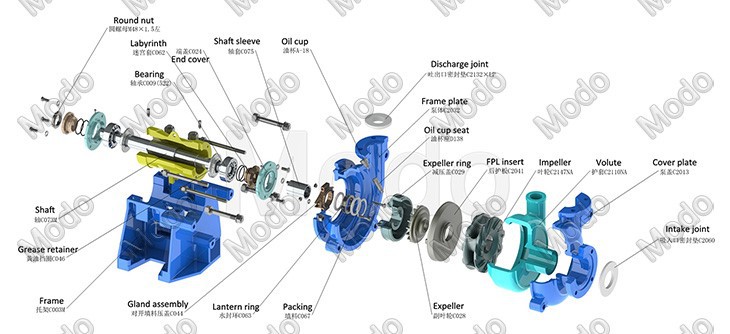

Exploded diagram of Industrial Sludge Pump:

 Driven method of Industrial Sludge Pump:

Spare parts of Industrial Sludge Pump:

Rubber Pumps Material			Metal Pumps Material
No	Part	Material	No	Part	Material
1	Base	Cast Iron	1	Base	Cast Iron
2	Shaft	4140 High Tensile Steel*	2	Shaft	4140 High Tensile Steel*
3	Bearing Assembly	Timken (Cast Iron Body)	3	Bearing Assembly	Timken (Cast Iron Body)
4	Shaft Sleeve	420 Stainless Steel	4	Shaft Sleeve	420 Stainless Steel
5	Pump Casing	Cast Iron	5	Pump Casing	Cast Iron
6	Frame Plate Liner Insert	Rubber	6	Frame Plate Liner	27% Chrome White Iron
7	Cover Plate Liner	Rubber	7	Volute Liner	27% Chrome White Iron
8	Impeller	Rubber Coated High Tensile Steel	8	Impeller	27% Chrome White Iron
9	Throat Bush	Rubber	9	Throat Bush	27% Chrome White Iron
10	Cover Plate	Cast Iron	10	Joint Rings	Rubber
11	Stuffing Box	Cast Iron	11	Cover Plate	Cast Iron
12	Expeller	27% Chrome White Iron	12	Stuffing Box	Cast Iron
13	Expeller Ring	Natural Rubber	13	Expeller	27% Chrome White Iron
14	Bolts	Zinc Plated Steel	14	Expeller Ring	Natural Rubber
15	O-rings	Nitrile Rubber	15	Bolts	Zinc Plated Steel
16	Seals	Rubber	16	O-rings	Nitrile Rubber
17	Seals	Rubber	17	Seals	Rubber

Contact us for your solution!
