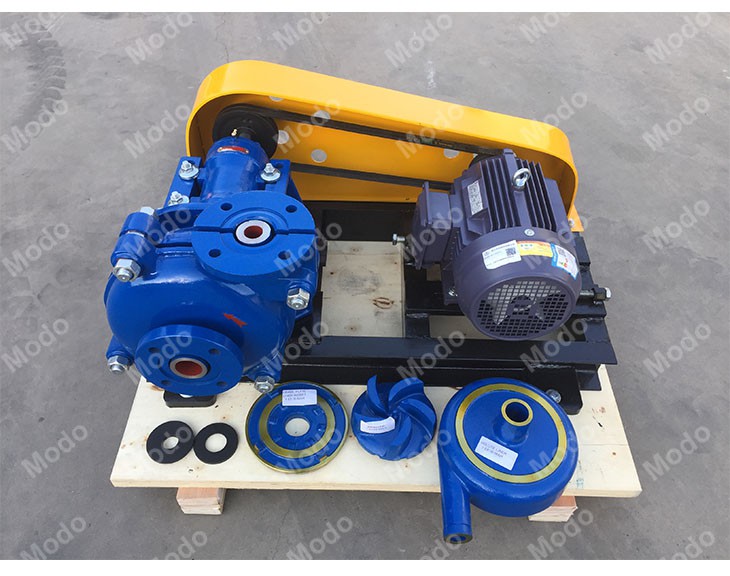

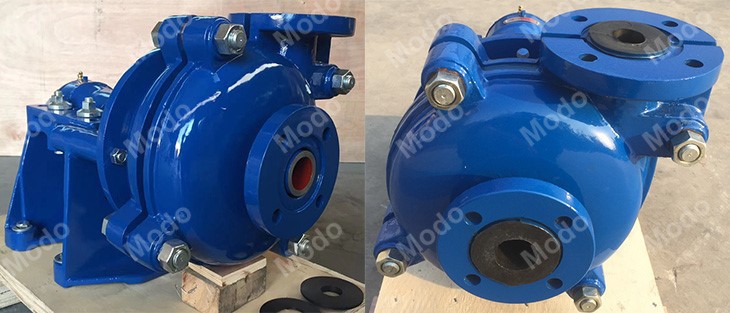

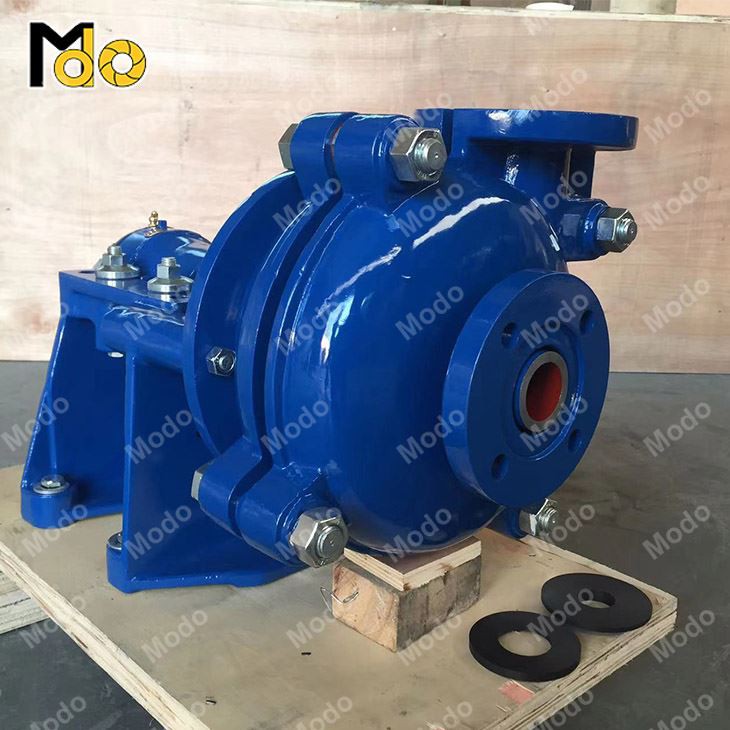

Small Slurry Pump

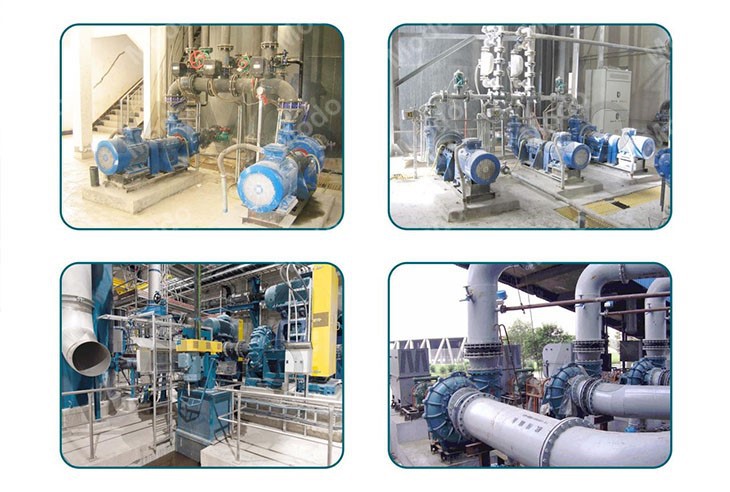

The small slurry pumps are used for transporting slurries, which are viscous mixtures of solid particles and fluids. These slurry pumps are commonly used in the mining, power generation, and construction industries.

Details of the small slurry pump



Model



 Suction (inch)

 Discharge

(inch)

 Max.solids size (mm)

 Wet end parts material

Flow (l/s)

Head (m)

 1.5x1 MAH

 1.5

 1

 14

 High chrome

 2~6

 10~60

 1.5x1 MAHR

 1.5

 1

 20

 Natural Rubber

 2~6

 10~45





When selecting a small slurry pump, the following dimensions, uses, motor power etc. should be taken into account:

1. Dimensions: The size of the pump should be matched with the application requirements, such as flow rate, head, and discharge pressure. The pump's discharge size should also be considered to match the pipeline's size.

2.Uses: the small slurry pump are designed for various applications such as transfer, circulation, and dewatering of slurry, sand, mud or similar liquids. The type, specific gravity, density, particle size are very important when selecting the slurry pump.

3.Motor power: The motor power should be adequate to achieve the desired slurry flow rate and head. A slurry pump with inadequate power will result in poor performance and reduced efficiency.

4. Selection considerations: When selecting a small slurry pump, the pump material, impeller type, shaft seals, and suction design should be considered. The pump material should be compatible with the slurry to avoid corrosion and wear. The impeller type should be chosen, depending on the type of particles in the slurry. The shaft seals and the suction design should also be chosen to minimize leakage and cavitation.

In summary, when selecting a small slurry pump, careful consideration should be given to dimensions, uses, motor power, and selection considerations. Choosing the right pump will ensure efficient and reliable slurry transport.
