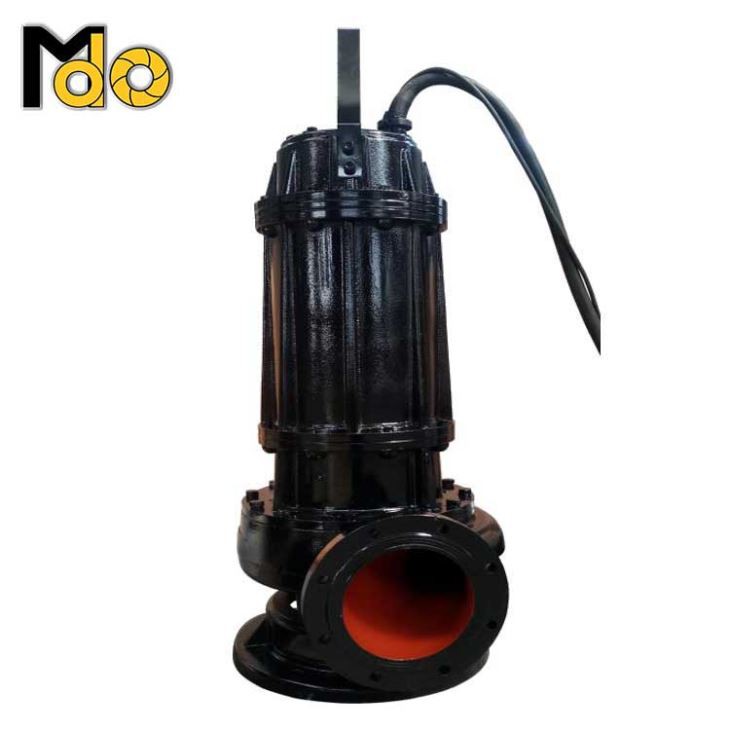

5bar 220v sludge sump pump 200 l/min water pump 75 hp
| Material List | |||
| Casing | cast iron | Shaft | 45# steel |
| Impeller | cast iron | Shaft Seal | Mechanical seal |
·Usage: | Sewage & Clean Water |
·Type: | MWQ Submersible Sewage Pump |
·Capacity | Up to 5760m3/hr( 1600 L/s ) |
·Head | Up to 62 m ( 203 feet ) |
·Speed: | Up to 2880 rpm |
·Outlet Dia: | 50mm to 2600mm (2"up to 23") |
SELECTION CHART
Type | Outlet Dia. (mm) | Capacity (m3/h) | Head (m) | Power (kw) | Efficiency (%) |
50WQ15-8-0.75 | 50 | 15 | 12 | 0.75 | 52 |
50WQ25-36-7.5 | 50 | 30 | 15 | 7.5 | 48 |
65WQ30-10-2.2 | 65 | 30 | 10 | 2.2 | 62 |
65WQ30-35-7.5 | 65 | 30 | 35 | 7.5 | 50 |
80WQ50-8-2.2 | 80 | 50 | 8 | 2.2 | 60 |
100WQ80-7-3 | 100 | 80 | 7 | 3 | 64 |
150WQ150-10-7.5 | 150 | 150 | 10 | 7.5 | 72 |
200WQ300-10-15 | 200 | 300 | 10 | 15 | 74 |
250WQ500-10-30 | 250 | 500 | 10 | 30 | 72 |
300WQ700-19-55 | 300 | 700 | 19 | 55 | 75 |
350WQ1100-25-110 | 350 | 1100 | 25 | 110 | 76 |
400WQ2000-23-185 | 400 | 2000 | 23 | 185 | 80 |
500WQ3000-15-132 | 500 | 3000 | 15 | 185 | 72 |
600WQ4000-20-315 | 600 | 4000 | 20 | 315 | 77 |

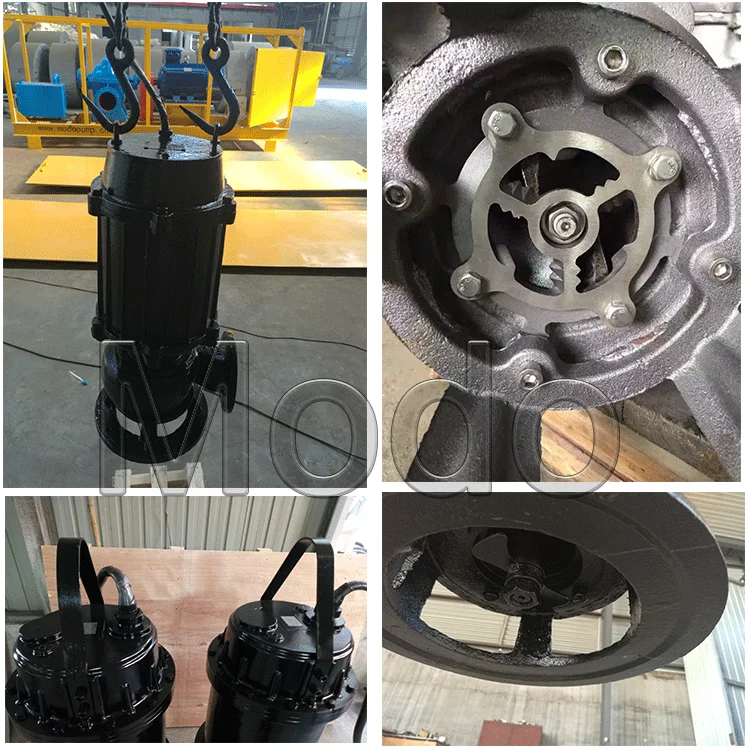

MWQ Submersible Sewage Pump Series

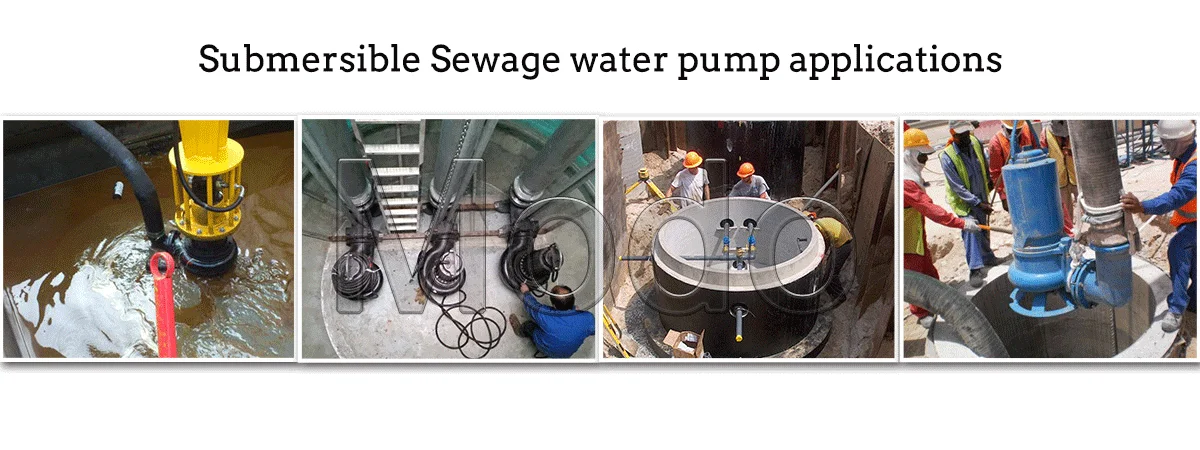

MWQ Submersible Sewage Pump is mainly used for municipal works, industrial buildings, hotels, hospitals, civil air defense, mines etc. Trades to drain off the sewage, waste water, rainwater and living water in cities containing solid grains and various long fabrics.

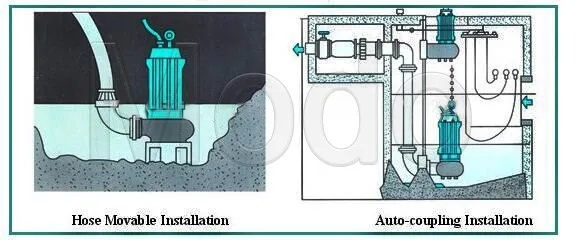

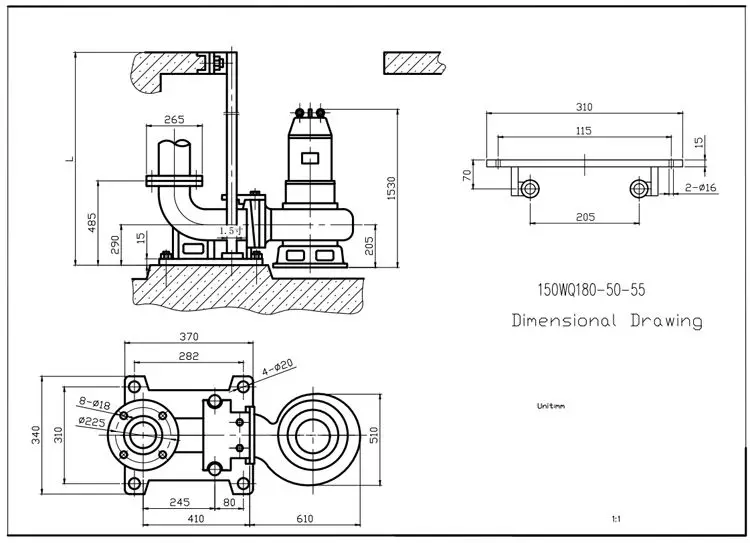

Installation of WQ Sewage Treatment Pump
Conditions of use
1. The medium temperature should not be over 40℃,the density no larger than1200Kg/m, and the PH value within 5-9.
2. Rated voltage 380V,rated frequency 50Hz.The motor can run successfully only under the condition the deviations of both rated voltage and frequency are not over 5%.
3. The maximum diameter of the solid grain going through the pump has not to be larger than 50% of that of the pump outlet.
ABOUT US
Optimisation, Innovation and Excellence, are the three words which most immediately characteristics.
We “Modo Pump” have been offering high end Industrial Centrifugal Pump.Today,we are counted among the key manufacturers, Suppliers and Exporters of kinds of Centrifugal slurry pumps. We have been using high quality raw material in the production sourced from the chief vendors. To cater to the varied necessities of the valuable clients, we have been providing this array of pumps in wide-ranging sizes and specifications. All our products are widely reckoned in the market for durability, performance and working efficiency.
1. What is your product range?
Slurry pumps(Horizontal, vertical, submersible type.)
Water pumps(Multistage, end suction, double suction)
2. What information I need to offer for quotation?
Liquid:___ Pump Capacity___m3/h
PH:_____ Pump Head: ___m
Specific of gravity___ Voltage ___V Frequency ___Hz
3. Do you only supply pumps? Could you supply driven equipment?
Yes, sure ,the pumps could be coupled with motor and diesel engine, below brands for your reference:
Motor: WEG, SIMENS ,ABB, TECO ,and Chinese brands
Diesel engine: Cummins, Deutz, Perkins,Volvo,MITSUBISHI, Caterpiller,MTU,and Chinese brands.
4. What is your MOQ?
We value every client, no matter pump or spare parts, one set or one piece, we treat the same with 100sets.
5. Is OEM parts available ?
Yes, please send me the detailed drawing. Different materials is available.

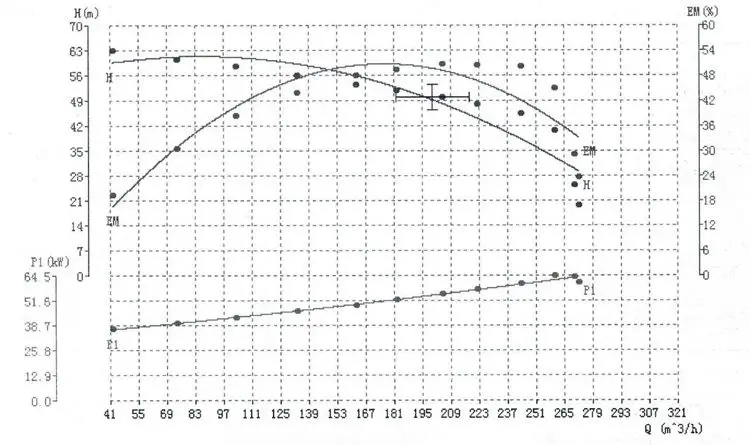

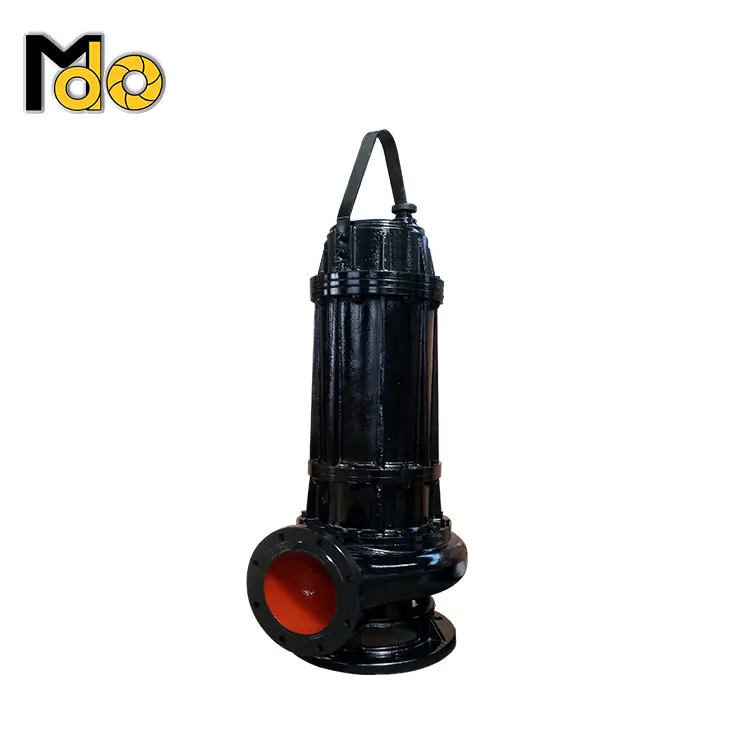

PUMP SPECIFICATIONS
| Pump specification | Motor specification | ||
| Capacity | 200m3/hr | Power | 55kw |
| Head | 50m | Speed | 1450rpm |
| Speed | 1450rpm | Volts | 380V |
| Inlet/Outlet | //150mm | Frequency | 50HZ |
| Efficiency | / | Protection grade | IP55 |
| NPSHr | / | Insulation class | F |
