22kw Electric Motor Submersible Sewage Pump
Large flow non-clog hydraulic components, which greatly improve the passing capacity of waste water
22kw electric motor submersible sewage water pump
Specification for the Submersible Sewage Pump
l Capacity: 200m3/h
l Head: 25m
l Power:22kw
l Impeller Type: open
l Voltage&Frequency:380V/50Hz
More Models
WQ Clean Water Performance | ||||
Model | Flow | Head | Power | Efficiency |
m3/h | m | kw | % | |
50WQ15-8-0.75 | 15 | 12 | 0.75 | 52 |
50WQ25-36-7.5 | 30 | 15 | 7.5 | 48 |
65WQ30-10-2.2 | 30 | 10 | 2.2 | 62 |
65WQ30-35-7.5 | 30 | 35 | 7.5 | 50 |
80WQ50-8-2.2 | 50 | 8 | 2.2 | 60 |
100WQ80-7-3 | 80 | 7 | 3 | 64 |
150WQ150-10-7.5 | 150 | 10 | 7.5 | 72 |
200WQ300-10-15 | 300 | 10 | 15 | 74 |
250WQ500-10-30 | 500 | 10 | 30 | 72 |
300WQ700-19-55 | 700 | 19 | 55 | 75 |
350WQ1100-25-110 | 1100 | 25 | 110 | 76 |
400WQ2000-23-185 | 2000 | 23 | 185 | 80 |
500WQ3000-15-132 | 3000 | 15 | 185 | 72 |
600WQ4000-20-315 | 4000 | 20 | 315 | 77 |

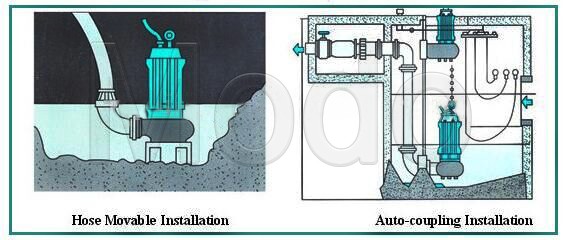

Installation of WQ Sewage Treatment Pump
Conditions of Use
1. The medium temperature should not be over 40℃,the density no larger than1200Kg/m, and the PH value within 5-9.
2. Rated voltage 380V,rated frequency 50Hz.The motor can run successfully only under the condition the deviations of both rated voltage and frequency are not over 5%.
3. The maximum diameter of the solid grain going through the pump has not to be larger than 50% of that of the pump outlet.
Packaging and Shipping
More details please contact me.
