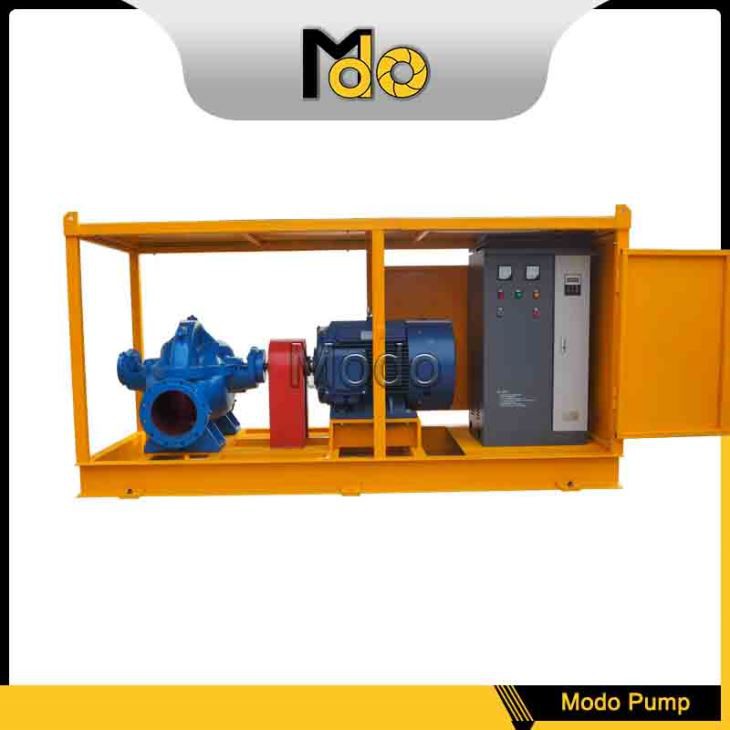

Split Casing High Flow Water Pump

Features

Pump and drive can choose straight league transmission, triangle, hydraulic transmission device coupled transmission, reducer drive.
The outflow direction can be installed by eight Angle rotation to adapt to different site installation condition.
Available to use multiple series, to satisfy the long-distance transmission requirements

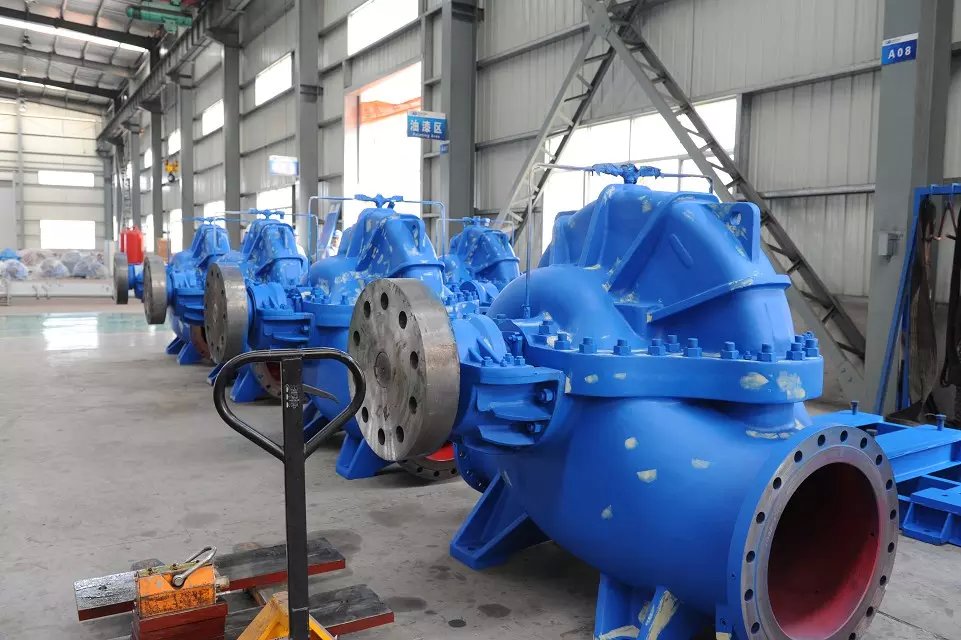

Photos

Introduction:

  -    Water and suspended abrasive particles with diam. up to 5 mm ,temperature max. 40 degrees C

  -    They are used in surface mines

Materials execution

-housing of cast iron alloy

-pump shaft ,impeller pump made of stainless steel

-Seals:graphite cord

The pumps will be equipped with:

-temperature sensors in bearings , measuring range 40-180 degree C

-temperature sensors for sealing the pump , measuring range 40-180 degree C

A .   Single-stage horizontal centrifugal pumps  (connection to the suction pipe diameter 400 mm discharge pipe diameter 350 mm) Q=1250mc/h , H=120 m , power 630KW-1500rpm/6KV/min.IP54 = 4 pieces

B .   Single-stage horizontal centrifugal pumps  (connection to the suction pipe diameter DN 300/PN16 discharge pipe diameter DN250 PN16) Q=1250mc/h , H=120m  power 630KW-1500rpm/6KV/IP54=3pieces

C .   Single-stage horizontal centrifugal pumps  (connection to the suction pipe diameter 350 mm discharge pipe diameter 300 mm) Q=1250mc/h , H=63m ,power 315KW-1500rpm/min.IP54 =4 pieces

D .   Single-stage horizontal centrifugal pumps  (connection to the suction pipe diameter 350 mm discharge pipe diameter 300 mm) Q=1250mc/h , H=63m ,power 500KW-1500rpm/6KV/min.IP54 =1 piece

E .   Single-stage horizontal centrifugal pumps  (connection to the suction pipe diameter 250 mm discharge pipe diameter 200 mm) Q=500mc/h , H=75m ,power 315KW-1500rpm/6KV/min.IP54 =1 piece
