High Efficiency Split Casing Water Pump

High Efficiency Split Casing Water Pump

Description

The MS High Efficiency Split Casing Water Pump is a single-stage double suction horizontal split centrifugal water pump. It is used totransport pure water and the liquid which physical and chemical nature is similar with water the maximum temperature isn't more than 80 ℃. This series High Efficiency Split Casing Water Pump is suitable for water supply and drainage in factories, mines and cities, power station, drainage and irrigation of farming, and kinds of hydraulic projects.

Performance Data

Flow rate	180M3/hr
Head	75m
Speed	1450rpm
Inlet diameter	150mm
Outlet diameter	100mm
Efficiency	78%
Weight	750kg
Dimensions	1.75m*0.85m*0.9m

Materials

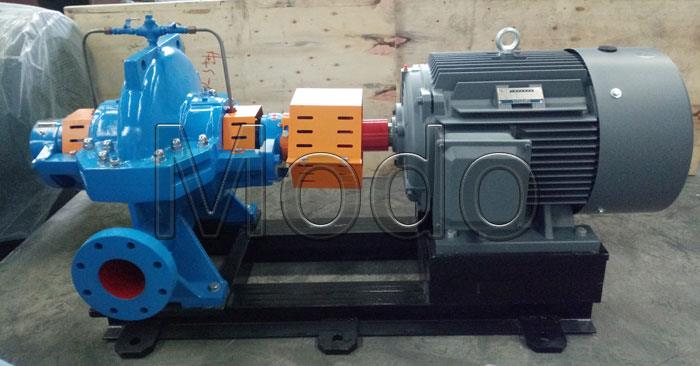

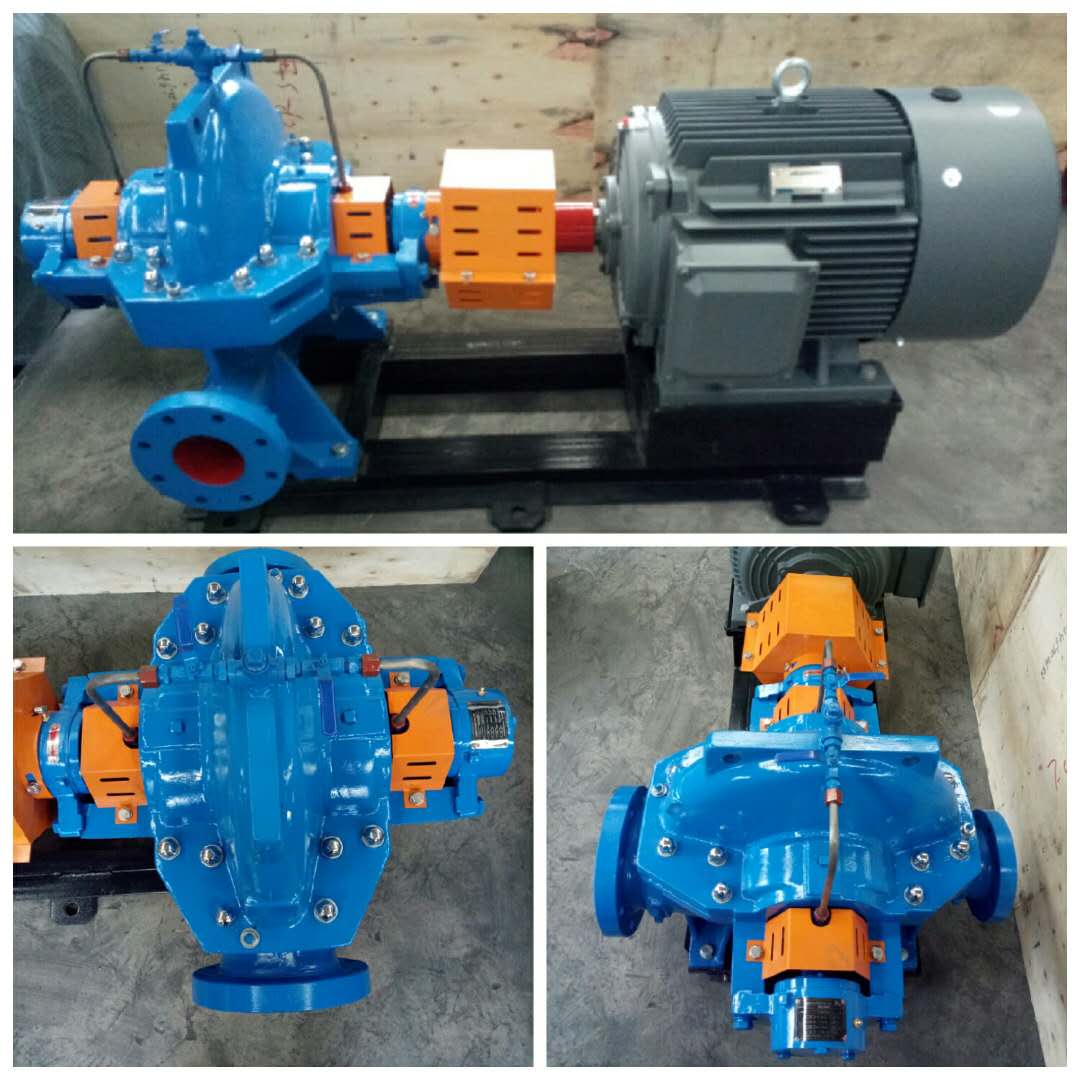

Pump Photos

Pump parts

Applications

Water supply and drainage

Marine—Ballasting & Bilge

Booster and pressurization set

Irrigation and agriculture

Food and chemical industry(with stainless steel material)

 FAQ

1.What information I need to offer for quotation?

Liquid:___                    Pump Capacity___m3/h

PH:_____                     Pump Head: ___m

Specific of gravity___     Voltage ___V  Frequency ___Hz

2.Do you only supply pumps? Could you supply driven equipment?

Yes, sure ,the pumps could be coupled with motor and diesel engine, below brands for your reference:

Motor: WEG, SIMENS ,ABB, TECO ,and Chinese brands

Diesel engine: Cummins, Deutz, Perkins,Volvo,MITSUBISHI, Caterpiller,MTU,and Chinese brands.

3.What is your MOQ?

We value every client, no matter pump or spare parts, one set or one piece, we treat the same with 100sets.

4.Is OEM parts available ?

Yes, please send me the detailed drawing. Different materials is available.
