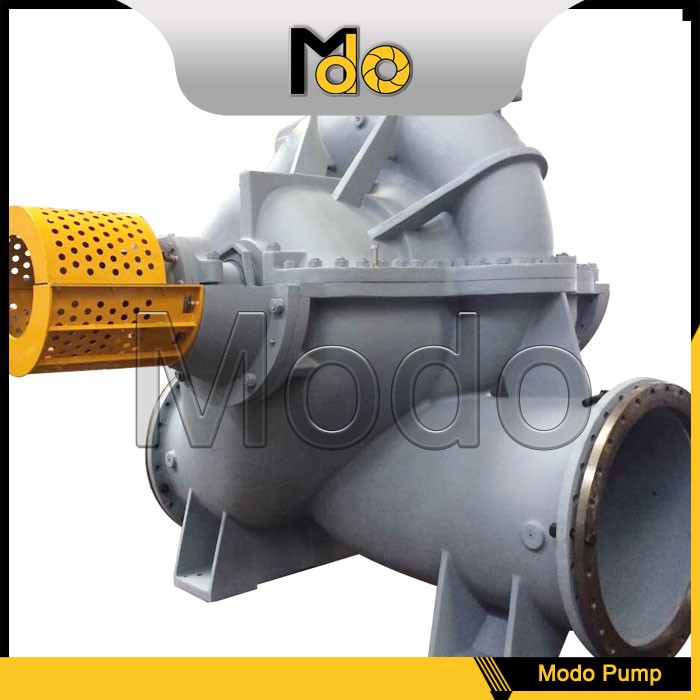

API Standard Split Casing Water Pump

MSD is the axial split casing centrifugal pumps designed and manufactured according to API 610 standard. MSD has double suction in the impeller. The pumps are horizontal proposal. This type pumps are featured as high efficiency, long serve time, friendly operation, easy to maintenance, and low cost in future operation.

Performance data:
Capacity: Up to 10000m3/h
Head: Up to 260m
Speed: 490r/min~3600r/min
DN Size: Up to DN900mm
Power: 0.55~2000kW
Medium temperature: <120 Centidegree
Frequency: 50~60Hz
Voltage: 110V~11000V
Driver: Electric motor or diesel engine
Standard: API610, DIN, ISO

Material:
Cast iron, ductile cast iron
Ni-resistant cast iron
Cast steel
Bronze
AISI420, 304, 316, 316L
Duplex stainless Steel, DIN1.4469, etc.

Applitcation:
Petrochemical Industry
Heavy chemical plants
Natural Gas
Petroleum refinery plants
Nuclear industry
Power Station
Offshore Projects and sea water
Water Circulation
Mining and steel plants
