100hp 200hp Flood Casing Water Pump
Horizontal, split case, double suction, single-stage, large capacity centrifugal pump design, Flood Casing Water Pump China.
100hp 200hp diesel flood split casing water suction pump

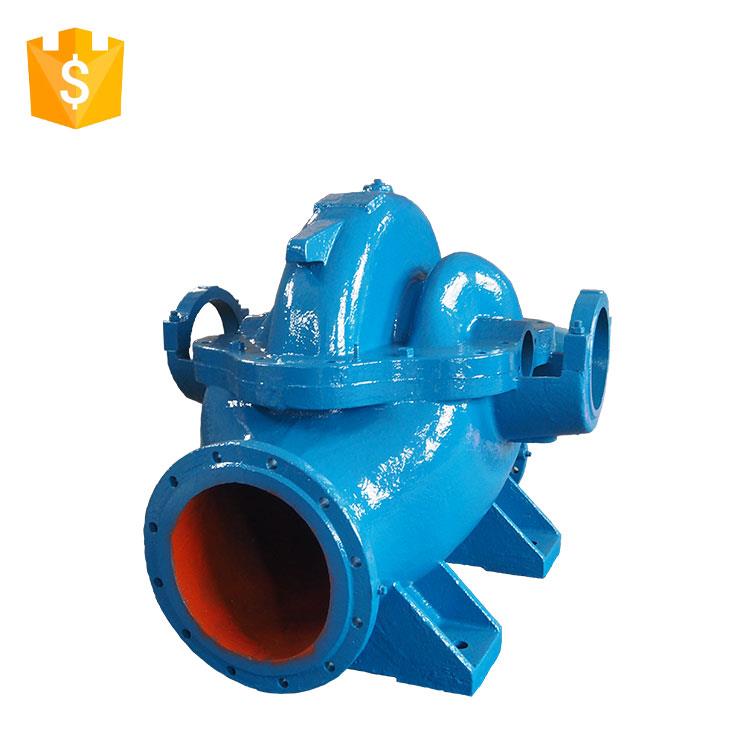

Horizontal, split case, double suction, single-stage, large capacity centrifugal pump design.
Impeller with static balance is fixed onto the shaft by the sleeve and sleeve nuts on the two sides. Its axial position can be adjusted through sleeve nut.
Recommended Products
·Usage: | Clean water/Sea water |
·Type: | MS Double Suction Water Pump |
·Capacity | 68 m3/hr to 30000 m3/hr |
·Head | 6 m to 230 m |
·Speed: | 585rpm/730rpm/980rpm/1450rpm/ 2980rpm |
·Drive | Diesel or Electric |
Meaning of Model:
250S-39A
250-- Pump inlet diameter(mm)
S-- Single stage double suction
39-- Rated head
A-- Impeller via first cut
| Model | Inlet/Outlet (mm) | Capacity m³/h | Head m | Speed (rpm) | Shaft power(kw) |
| 150S-78 | 150/150 | 160 | 78 | 2900 | 45 |
| 150S-50 | 150/150 | 160 | 50 | 2900 | 27.3 |
| 200S-95 | 200/200 | 280 | 95 | 2900 | 94 |
| 200S-63 | 200/200 | 280 | 63 | 2900 | 59.3 |
| 200S-42 | 200/200 | 280 | 42 | 2900 | 37.7 |
| 250S-65 | 250/250 | 485 | 65 | 1450 | 108.7 |
| 250S-39 | 250/250 | 485 | 39 | 1450 | 62.1 |
| 250S-24 | 250/250 | 485 | 24 | 1450 | 36.9 |
| 250S-14 | 250/250 | 485 | 14 | 1450 | 21.7 |
| 300S-90 | 300/300 | 790 | 90 | 1450 | 249.8 |
| 300S-58 | 300/300 | 790 | 58 | 1450 | 148.5 |
| 300S-32 | 300/300 | 790 | 32 | 1450 | 79 |
| 300S-19 | 300/300 | 790 | 19 | 1450 | 46.9 |
| 300S-12 | 300/300 | 790 | 12 | 1450 | 31.1 |
| 350S-125 | 350/350 | 1260 | 125 | 1450 | 531 |
| 350S-75 | 350/350 | 1260 | 75 | 1450 | 304 |
| 350S-44 | 350/350 | 1260 | 44 | 1450 | 177.6 |
| 350S-26 | 350/350 | 1260 | 26 | 1450 | 101.5 |
| 350S-16 | 350/350 | 1260 | 16 | 1450 | 63.8 |
| 500S-13 | 500/500 | 2020 | 13 | 980 | 86.2 |
| 500S-35 | 500/500 | 2020 | 35 | 980 | 219 |
| 500S-98 | 500/500 | 2020 | 98 | 980 | 678 |
| 600S22 | 600/600 | 3241 | 22 | 980 | 231.8 |
| 600S75 | 600/600 | 3060 | 75 | 980 | 694.4 |
| 800S32 | 800/800 | 5500 | 32 | 730 | 538.5 |
| 800S47 | 800/800 | 5500 | 47 | 730 | 782.2 |

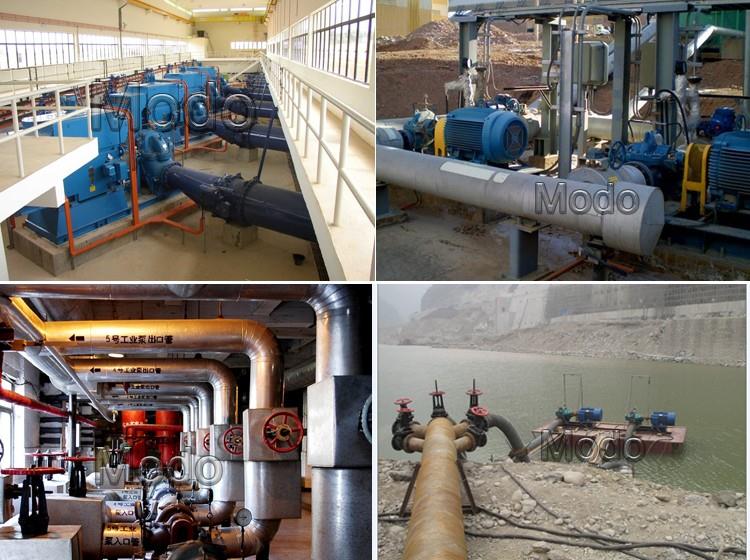

The pumps mainly used for water supply and drainage in factories, mines, cities and electric stations, waterlogged land drainage, irrigation of farming land and carious hydraulic projects etc.
