Vertical Multistage Pumps

Modo Pump has been focused on vertical multistage pumps manufacturing and selling for many years, which is known as a professional manufacturer and supplier of various quality pumps in China. We have gathered many professional and experienced staff, as well as advanced equipment in our factory. Welcome to buy our vertical multistage pumps and check the price list with us.



Vertical multistage pumps are high-efficiency centrifugal pump with multistage impeller series design. It is more suitable for high head but small flow. Its core structure is composed of multiple impellers and guide casings superimposed in sections. The liquid pressure is increased by step-by-step pressurization. It is widely used in water supply, industrial circulation, fire protection and other fields.

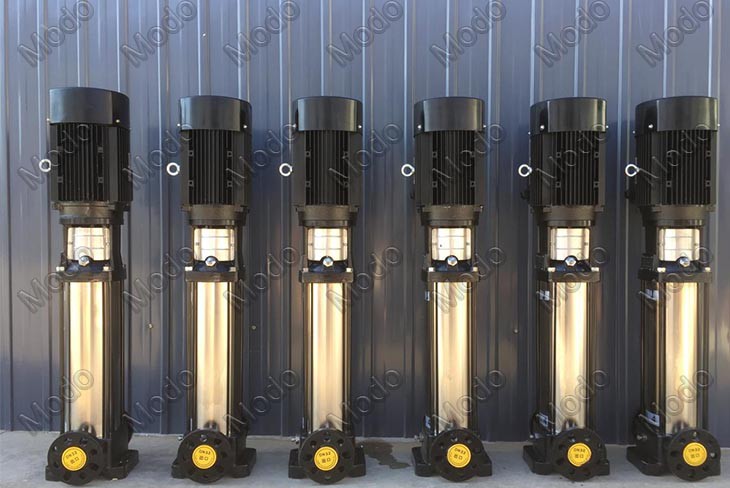

Our pumps CDL and CDLF are stainless steel sheet metal stamping vertical multistage centrifugal pumps (hereinafter referred to as pumps). They are hygienic, efficient, low-noise, mildly corrosion-resistant, compact, beautiful, small, light, easy to use and maintain, and reliable sealing performance.

Pump composition

The pump consists of motor, pump head, guide vane, impeller, pressure-resistant cylinder, inlet and outlet water section, pump shaft, mechanical seal and other main components.
The key pump components guide vane, impeller, pressure-resistant cylinder and shaft are all made of stainless steel. Pump head and inlet and outlet water section: CDL pump uses cast iron and CDLF pump uses stainless steel precision casting.
The pump shaft seal is a single-end mechanical seal, the friction pair is hard alloy graphite, and the guide vane internal support is alloy steel.
The basic type of connection between the pump and the pipeline is a circular flange connection, and different connection methods can also be used according to user needs.

How does it work?

The vertical multistage pumps are not difficult to understand. Once the motor is started, the impeller in the pump rotates rapidly. The water in the center of the impeller is thrown out by centrifugal force, and the center becomes a low-pressure area. Under the action of pressure, the water outside "squeezes" into the center of the impeller. Driven by the impeller, the water continues to rotate, and the pressure is getting greater and greater. After passing through one level of impeller after another, the water pressure is constantly superimposed, and finally discharged from the pump outlet and sent to where it is needed.

Application

Vertical multistage pumps are very useful in life and production. ​
In the high-rise building where we live, it is responsible for sending water to the upper floors. If it were not for it, people living on dozens of floors would have a big problem with water. Whether it is daily washing, cooking, or firefighting water at critical moments, it must be pressurized and transported to ensure stable water pressure. ​
In industry, chemical, petroleum, and pharmaceutical industries cannot do without it. There are various corrosive and viscous liquids in the factory, such as sulfuric acid and petroleum. Vertical multistage pumps can steadily transport them to various production links, pressurize the liquids in the process flow, and ensure smooth production. ​
In the power industry, the boilers of power stations must have a stable water supply, and condensate must be treated in time. At this time, vertical multistage pumps come in handy, serving as feed water pumps for boilers or condensate pumps to ensure that power generation is not affected. ​
During agricultural irrigation, it can pump river water and well water up and send it to high places to irrigate large tracts of farmland and help crops thrive. ​
There are also sewage treatment plants where sewage needs to be lifted and transported, and the liquids in the treatment process must be circulated. Vertical multistage pumps can also play a role and contribute to environmental protection.
