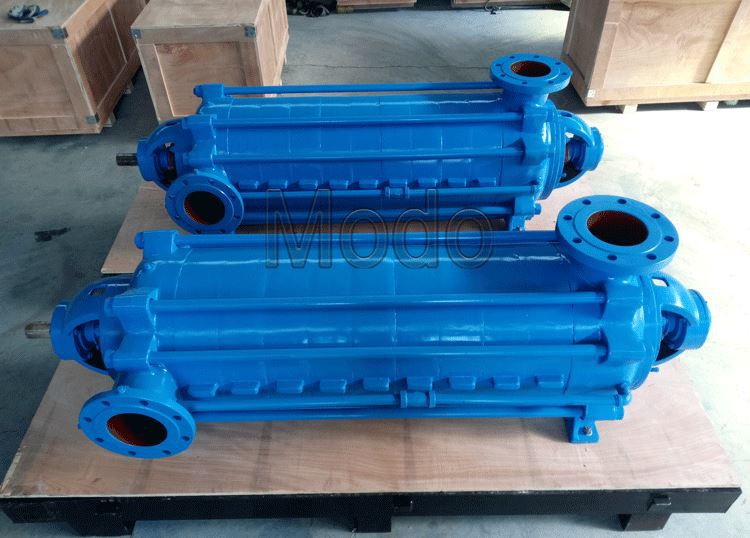

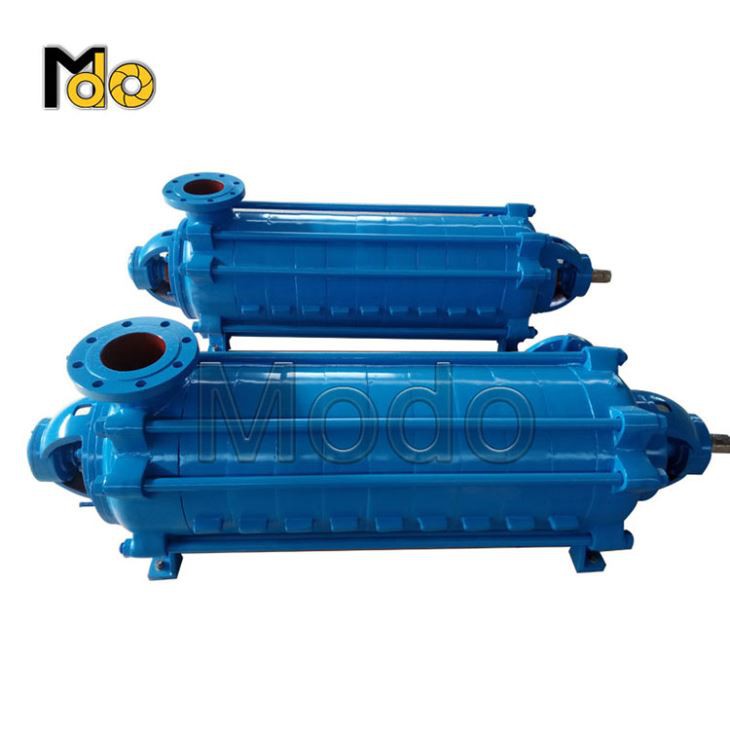

Multistage Centrifugal Pump
Multistage centrifugal pump for clean water D155-30X10 Multistage Centrifugal Pump Data Sheet as follows. D155-30x10 Outline Dimension Drawing: D155-30X10 Performance Curve: D Series Multistage Centrifugal Pump Production D multistage pumps are used to transport water with temperature ≤ 80 ℃ and...
Multistage centrifugal pump for clean water
D155-30X10 Multistage Centrifugal Pump Data Sheet as follows:
Capacity (m3/h) | Head (m) | Max.inlet pressure (MPa) | Max.outlet pressure (MPa) | Max. Eff (%) | NPSHr (m) | Power (kw) | Speed (r/m) |
155 | 300 | 0.6 | 0.6 | 75% | 3.9 | 75 | 1480 |
D155-30x10 Outline Dimension Drawing:

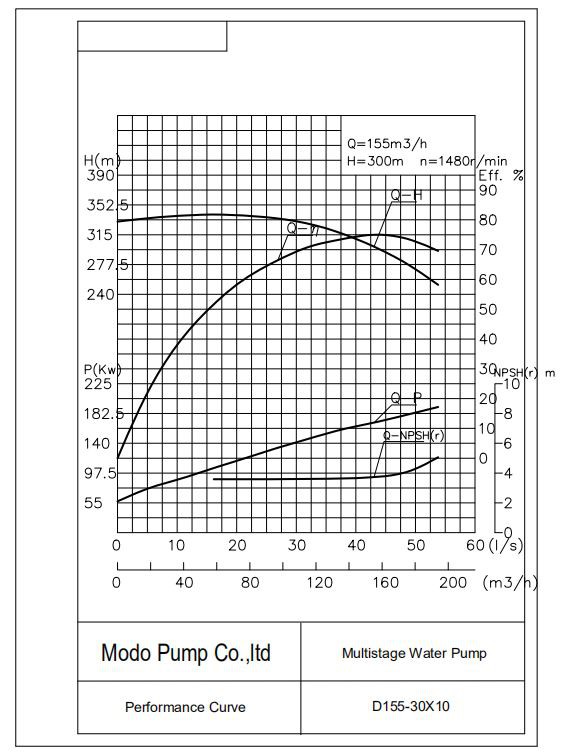

D155-30X10 Performance Curve:
D Series Multistage Centrifugal Pump Production
| A. | D multistage pumps are used to transport water with temperature ≤ 80 ℃ and without solid particles or other liquids with physical and chemical properties similar to water. The allowable pressure at the inlet and outlet of the above pumps shall not exceed 0.6MPa. |
| B. | D pump is centrifugal horizontal single suction multistage pump, with very high pressure, mainly used for high head pump required fields like: power plant, high building, long distance water delivery, water circulation, irrigation, fire fight etc. |
Application
Water supply, booster system, condensate, heating & air conditioning, irrigation, sprinkler, circulation, industries, agricultural, fire fighting system, seawater pumping... |
