Diesel Multistage Pump With Trailer

Diesel multistage pump with trailer

Description

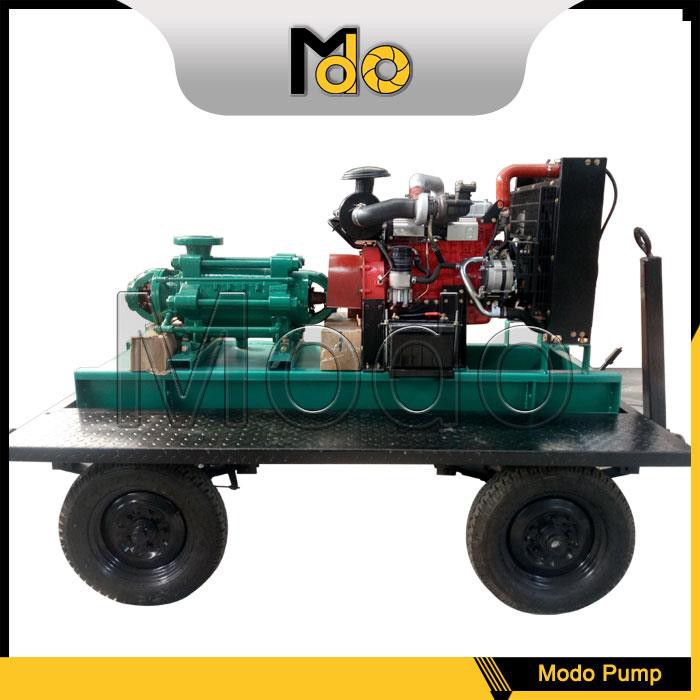

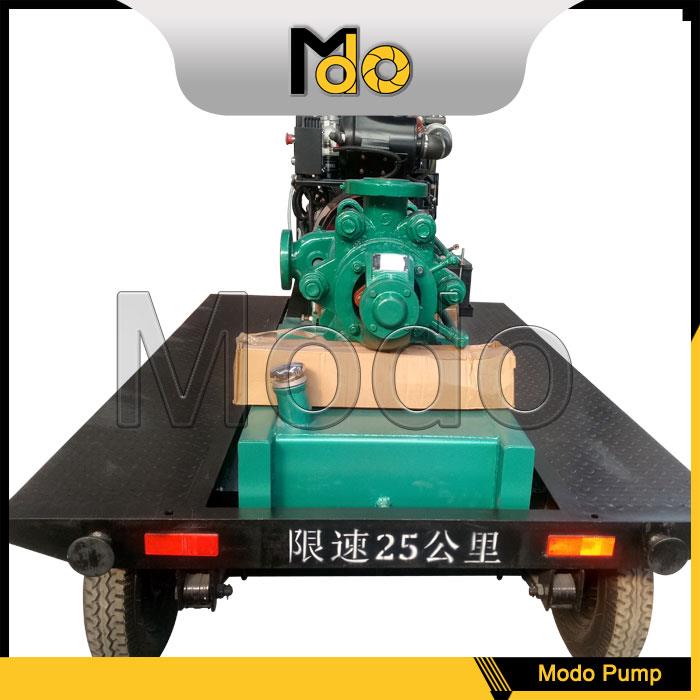

The Diesel multistage pump with trailer is finished and packed for delivery today. This systems includes main 3 parts: multistage pump+ diesel engine+ 2 wheels trailer. It is easy to move in the irrigation.

The Diesel Multistage Pump With Trailer is featured of high discharge pressure and stable operation. The carbon steel material with mechanical seal configuration could handle hot water up to 105℃ or mineral water which particle size ≤ 0.5mm.

Diesel Multistage Pump With Trailer Performance data

Diesel Multistage Pump With Trailer structure

The inlet and outlet of the Diesel Multistage Pump With Trailer pump are vertically upward, and the pump shell parts such as the inlet, middle, outlet and bearing body are connected together by tightening bolts. Choose the pump series according to the pump head.


The rotor part of the pump is mainly composed of the shaft and the impeller, sleeve and balancing disk mounted on the shaft. The number of impellers depends on the number of stages of the pump. Shaft parts are fastened with flat keys and shaft nuts to integrate with the shaft. The whole rotor is supported by rolling bearings or sliding bearings at both ends. Bearings are not subject to axial force, which is balanced by balancing disc, depending on the type of bearing. In the operation of the pump, the rotor is allowed to move axially in the pump housing, and the centripetal ball bearing can not be used. Rolling bearings are lubricated with grease, sliding bearings are lubricated with thin oil, and oil rings are used for self-lubrication and circulating water cooling.


Molybdenum disulfide lubricating grease is used to seal the inlet, middle and outlet sections of feed water pumps for medium and low pressure boilers. Sealing rings and guide vane sleeves are installed between the rotor and the fixed sections for sealing. When the wear degree of the seal rings and guide vane sleeves has affected the working performance of the pumps, they should be replaced.

Diesel Multistage Pump With Trailer Delivery time

40 business days from the day of getting the deposit.

FAQ

1. What is your product range?
Slurry pumps(Horizontal, vertical, submersible type.)
Water pumps(Multistage, end suction, double suction)
2. What information I need to offer for quotation?
Liquid:___                    Pump Capacity___m3/h
PH:_____                     Pump Head: ___m
Specific of gravity___     Voltage ___V  Frequency ___Hz
3. Do you only supply pumps? Could you supply driven equipment?
Yes, sure ,the pumps could be coupled with motor and diesel engine, below brands for your reference:
Motor: WEG, SIMENS ,ABB, TECO ,and Chinese brands
Diesel engine: Cummins, Deutz, Perkins,Volvo,MITSUBISHI, Caterpiller,MTU,and Chinese brands.
4. What is your MOQ?
We value every client, no matter pump or spare parts, one set or one piece, we treat the same with 100sets.
5.Is OEM parts available ?
Yes, please send me the detailed drawing. Different materials is available.
