100kw Water Pump

Name: 100kw Water Pump
Brand: Modo Pump Co.,Ltd
SKU: 56506808

100kw water pump 100kw water pump is split case water pump,which is suitable for high flow,low head usage. 100kw water pump specification: 100kw water pump maintenance of mechanism seal: the lubrication of mechanism seal should clean without solid particle. prohibiting mechanism seal working in...

Send Inquiry

Product Details

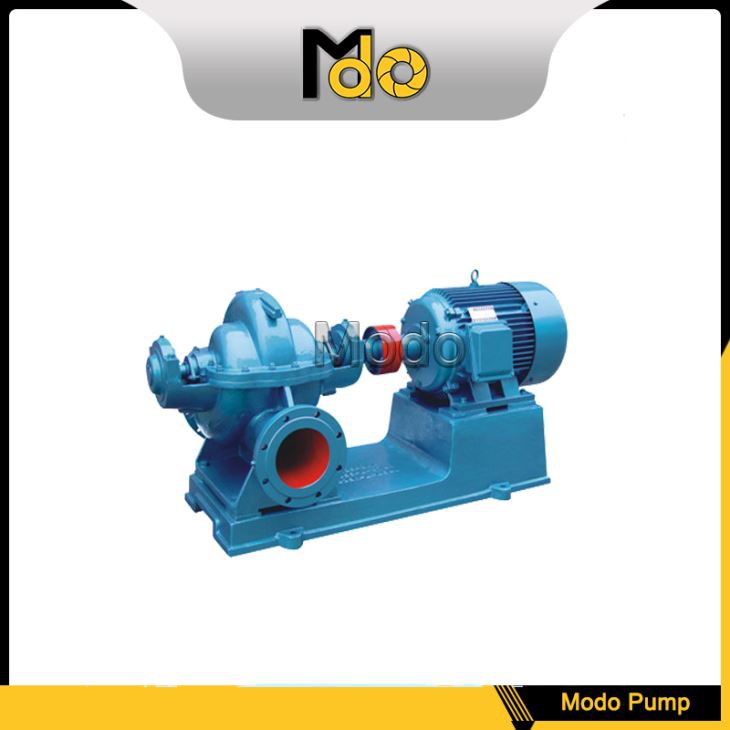

100kw water pump

100kw water pump is split case water pump,which is suitable for high flow,low head usage.

100kw water pump specification:

·Usage:	Clean water/Sea water
·Type:	MS Double Suction Water Pump
·Capacity	68 m3/hr to 30000 m3/hr
·Head	6 m to 230 m
·Speed:	585 rpm/730rpm/980rpm/1450rpm/2980rpm
·Outlet Diameter:	150mm to 1600mm (6＂up to 64＂)
·Temperature	Max.: 80 ℃
·Drive	Diesel or Electric
·Shaft	4140 Mild Steel
·Shaft Sleeve	Cast iron/3 Cr13/40 Cr
·Pump Casing	Cast iron/Cast steel/SS 304/SS316
·Impeller	Cast iron/Cast steel/SS 304/SS316/Bronze
·Shaft seal	Mechanical seal/Packing gland seal
·Seal ring	Cast iron/ZCuZn16Si4/ZCuSn10Zn2

100kw water pump maintenance of mechanism seal:

the lubrication of mechanism seal should clean without solid particle.
prohibiting mechanism seal working in the dry grinding condition
start pump for several circal before starting,to avoid graphite ring to be damaged
the leakage tolerance of mechanical seal is about 3drop/minute,or else it should be checked.

100kw water pump maintenance during operation:

1.inlet pipeline should full with liquid,prohibit pump to operate in cavitate condition

2.check the current calue of motor periodically, itshouldn't higher than rated current condition

3.if pump operates for long time,you should replace damageable parts and check unit periodically,the check time is one year in a general way.

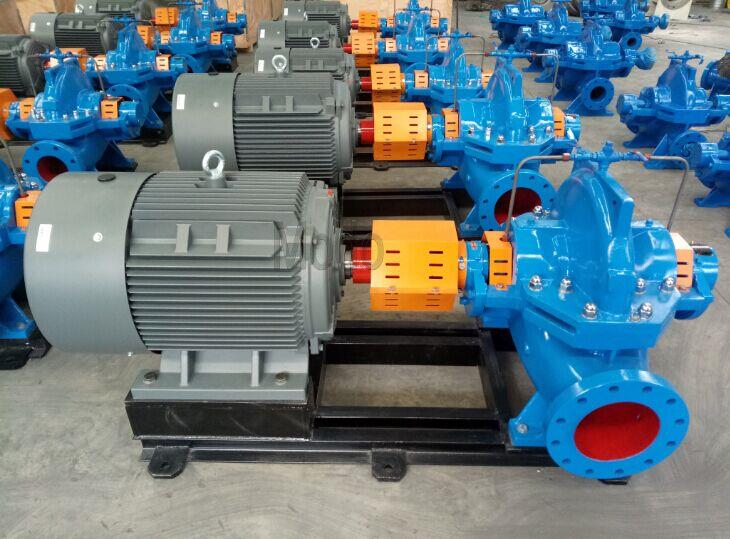

100kw water pump photos:

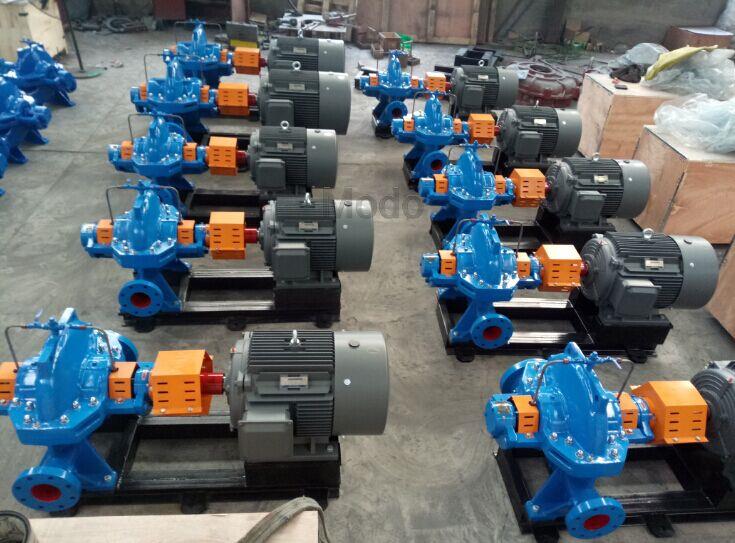

electric split case water pump electric

Look! 100kw water pump is for our client in Jordan,which will be used for a steel factory.

FAQ

1. Q: Are you a manufacturer or trading company?

A: We are a professional manufacturer with 15 years' experience.

2. Q: How to manage your quality?

A: We make the whole process ourselves, we have trained QC inspect the details of each procedure to make sure everything is ok then move to next step.

Finally, each of our products will be tested with professional equipment before packing to ensure the quality.

3.Q: I have purchase requirement but I am not sure which kind of pump is ok, can you help?

A: Yes, we'd love to help. You just need to advise some approximately information, like the range of capacity, head, liquid like oil or water? Then our engineer will recommed a few of matched options for you to choose.
