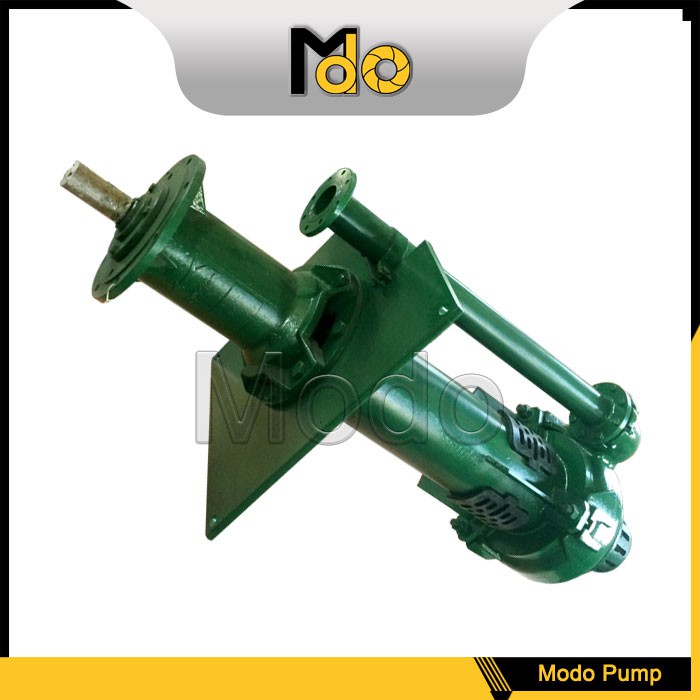

High Abrasive Slurry Pump In Pit

Modo Pump has been focused on high abrasive slurry pump in pit manufacturing and selling for many years, which is known as a professional manufacturer and supplier of various quality pumps in China. We have gathered many professional and experienced staff, as well as advanced equipment in our factory. Welcome to buy our high abrasive slurry pump in pit and check the price list with us.



High abrasive slurry pump in pit

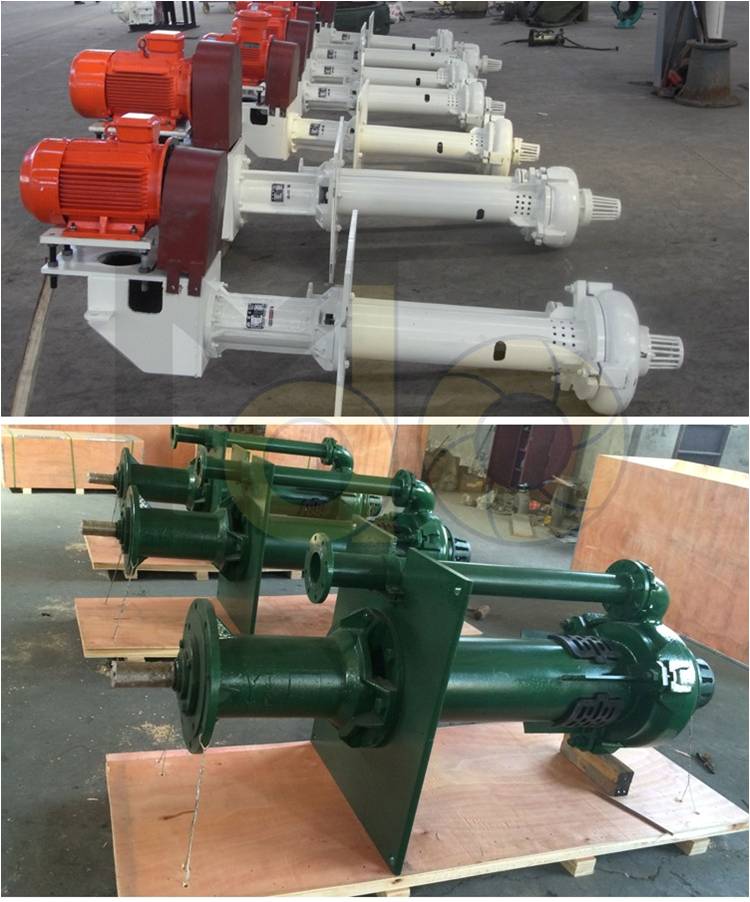

MSP High abrasive slurry pump in pit are vertical, shaft driven centrifugal slurry pumps designed for transferring  abraisive and high density slurries from sumps, pits and other submersible sources.
MSP Models High abrasive slurry pump in pit are available in sizes ranging from 40mm to 250mm discharge and are capable of flow rates from 5 to 350 liters per second (79-5540USGPM) at heads of up to 40 meters (130ft).
The heavy duty design of the MSP High abrasive slurry pump in pit allows the passage of large particles with a diameter of up to 50mm.

FEATURES

• Cantilevered shaft design
• Double suction semi-open impeller
• Agitator option keeps solids in suspension
• Different length of the pump drive shaft or inhaled could be selected
• Material of Impeller could be wear-resistant metal or rubber
• SPR models feature full rubber covering for corrosion resistance
• V-belt drive, direct drive, and flexible coupling. Bearing to lubricate oils.
• No submerged bearings or packing. High capacity double suction design. Optional recessed impeller and suction agitator available





 Pump Specifications:

·Usage:	Slurry,   Sewage & Water
·Type:	MSP Vertical Slurry Pump
·Capacity	Up to 1267 m3/hr( 352 L/s )
·Head	Up to 43 m ( 141 feet )
·Speed:	Up to 1500 rpm
·Outlet Dia	40mm to 250mm (1.5＂up to 10＂)
·Temperature	Max.: 110 ℃
·Drive	Electric
·Shaft	4140 Mild Steel
·Bearing Housing	Cast Iron
·Column	Mild Steel
·Upper Strainer	Rubber or Cast Iron
·Lower Strainer	Cast Iron
·Back Liner	27% Chrome White Iron
·Pump Casing	27% Chrome White Iron or   Rubber Lined White Iron
·Impeller	27% Chrome White Iron or   Rubber
·Discharge Pipe	Mild Steel or Rubber Lined   Mild Steel
·Adapter Plate	Mild Steel
