China Slurry Pump
Hot Sale Horizontal and Vertical Gold Mining Slurry Pump a) Ductile iron casing provides durable, safety and long service life. b) The impeller and liner are all made of high chrome alloy(Cr26) material with features of anti-wear, anti-abrasive, high efficiency and long service life. c) Slurry...
China Slurry Pump
Application
China slurry pump Service
b) Provide comprehensive technical support, from the selected models to use the China slurry pump .
c) Technical team provide complete design for customers.
Gold Mining Equipment Centrifugal Electrical China slurry Pump .
China Slurry Pump characteristics
| ·Type: | ·Media: | ·Application: |
| centrifugal | slurry | macerator |
| ·Other characteristics: | ·Flow rate: | ·Pressure |
| horizontal | Min.:0m3/h | Min.: 0Pa |
| Max.: 5000m3/h | Max.: 2020000Pa | |
| ·Head | ||
| Min: 0m | ||
| Max: 73m |
Description of China Slurry Pump
The Modo China slurry pumps are cantilevered, horizontal centrifugal China slurry pumps designed for handling abrasive, high density slurries in a wide range of applications.
MAH China slurry pumps are manufactured to be interchangeable with the most common China slurry pump designs and feature a wide range of options. MAH Slurry Pumps provide rugged performance and reliability in the most demanding China slurry pumping applications.

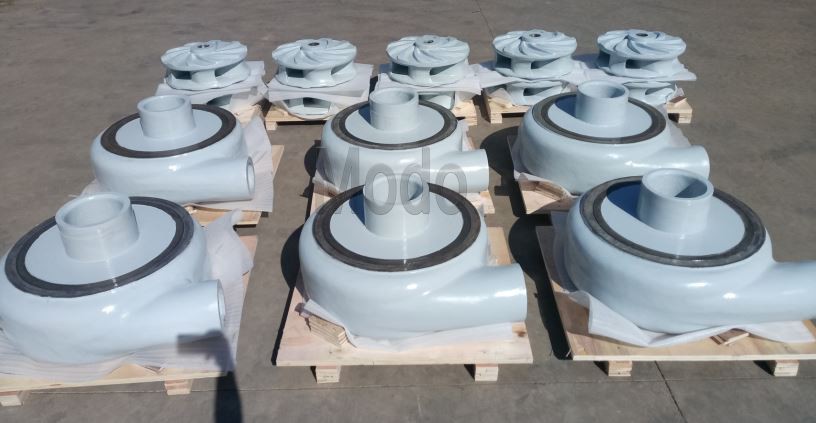

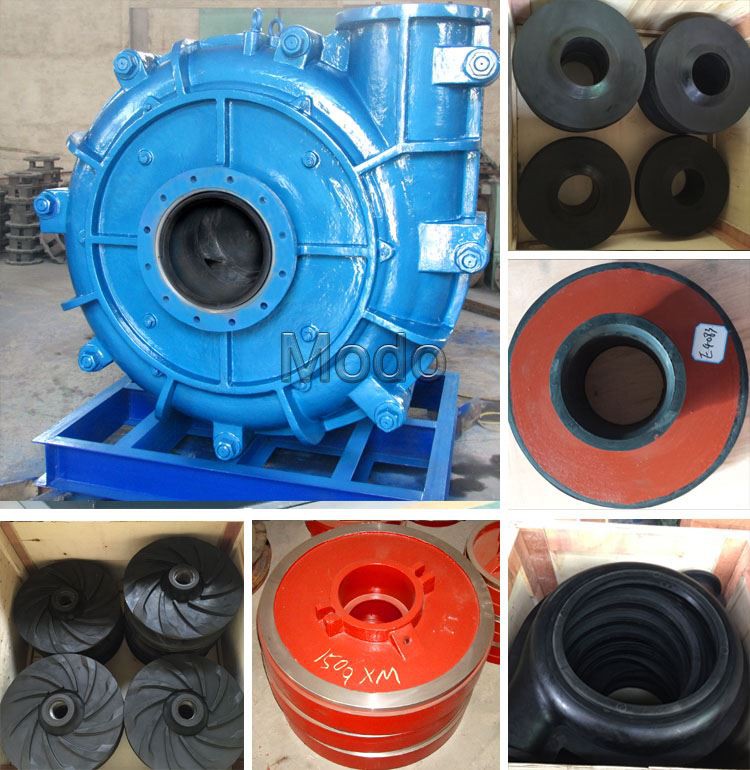

Photos of China slurry pump:
Features of China slurry pump
Bearing assembly of China slurry pump- large diameter shaft with short overhang contributes to long bearing life.
Liners of China slurry pump- easily replaceable liners are bolted, not glued to the casing for positive maintenance.
Casing of China slurry pump - casing halves of cast or ductile iron provide high operating pressure capabilities.
Impeller of China slurry pump- front and rear shrouds have pump out vanes that reduce recirculation and seal contamination.
Throat bush of China slurry pump - wear is reduced and maintenance simplified by the use of tapered.
Application
Transfer of abrasives and high density slurries in:
Mining
Metallurgical Processing
Civil Construction
China slurry pump-Rubber Pump | China slurry pump-Metal Pump | ||||
No. | Part Description | Material Specification | No. | PartDescription | Material Specification |
1 | Base | Cast Iron | 1 | Base | Cast Iron |
2 | Shaft | 4140 High Tensile Steel* | 2 | Shaft 4140 | High Tensile Steel* |
3 | Bearing Assembly | Timken (Cast Iron Body) | 3 | Bearing Assembly | Timken (Cast Iron Body) |
4 | Shaft Sleeve | 420 Stainless Steel | 4 | Shaft Sleeve | 420 Stainless Steel |
5 | Pump Casing | Cast Iron | 5 | Pump Casing | Cast Iron |
6 | Frame Plate | Liner Insert Rubber | 6 | Frame Plate | Liner 27% Chrome White Iron |
7 | Cover Plate | Liner Rubber | 7 | Volute Liner | 27% Chrome White Iron |
8 | Impeller | Rubber Coated High Tensile Steel | 8 | Impeller 27% | Chrome White Iron |
9 | Throat Bush | Rubber | 9 | Throat Bush | 27% Chrome White Iron |
10 | Cover Plate | Cast Iron | 10 | Joint Rings | Rubber |
11 | Stuffing Box | Cast Iron | 11 | Cover Plate | Cast Iron |
12 | Expeller | 27% Chrome White Iron | 12 | Stuffing Box | Cast Iron |
13 | Expeller | Ring Natural Rubber | 13 | Expeller | 27% Chrome White Iron |
14 | Bolts | Zinc Plated Steel | 14 | Expeller Ring | Natural Rubber |
15 | O-rings | Nitrile Rubber | 15 | Bolts | Zinc Plated Steel |
16 | Seals | Rubber | 16 | O-rings | Nitrile Rubber |
17 | Seals | Rubber | |||
Ceramic material of China slurry pump.It can be interchangeable with Pump.
Q: What information should I offer to get China slurry pump solution?
1, Liquid___
2, Head: m
3, Flow: m3/h
4, Medium size: mm
5, Particle shape (smooth or sharp):
6, Medium pH level:
7, Temperature:
8, Drive type:
9. Power supply:
Email us for your solution:
