Rubber Lined Slurry Pump

Modo Pump has been focused on rubber lined slurry pump manufacturing and selling for many years, which is known as a professional manufacturer and supplier of various quality pumps in China. We have gathered many professional and experienced staff, as well as advanced equipment in our factory. Welcome to buy our rubber lined slurry pump and check the price list with us.



How is a rubber lined slurry pump working?
Rubber lined slurry pump is widely used in mining, metallurgy, coal and other industries for transporting slurry. They are designed to handle abrasive and corrosive slurries with high efficiency and reliability.

The working principle of a rubber lined slurry pump is quite simple. The slurry enters the pump through the suction inlet and is then pumped towards the discharge point. The pump consists of two main parts: the impeller and the casing. The impeller rotates at a high speed to create a centrifugal force that drives the slurry towards the discharge point. The rubber lining inside the casing and impeller helps to reduce the damage caused by the abrasive and corrosive nature of the slurry being pumped.

The rubber lining protects the pump from wear and tear, ensuring a longer lifespan for the rubber lined slurry pump components. It also helps to reduce the noise and vibration generated during operation, making the pump more user-friendly. The rubber-lined slurry pump is also very efficient, with a high pumping capacity and minimal downtime required for maintenance.

Overall, rubber lined slurry pumps are essential equipment in mining and industrial operations. They provide reliable and efficient pumping of abrasive and corrosive slurries, helping to ensure smooth and efficient operation of production processes. With their advanced design and engineering, rubber lined slurry pumps continue to be a critical component in many industries today.

Models of rubber lined slurry pumps:

Type	Max. power	Capacity	Head	Speed	Max.Eff	NPSH	Impeller Dia.	Max.particle size
	(kw)	(m³/h)	(m)	(r/min)	(%)	(m)	(mm)	(mm)
MAH1.5-1	15	12-28	6-65	1200-3800	40	2-4	150	14
MAH2-1.5	15	32-72	6-58	1200-3200	45	3.5-8	185	19
MAH3-2	30	39-86	12-64	1300-2700	55	4-6	215	25
MAH4-3	60	86-198	9-52	1000-2200	71	4-5	245	28
MAH6-4	120	162-360	12-56	800-1500	68	5-8	365	44
MAH8-6	120	360-830	10-61	500-1140	72	2-9	510	63
MAH10-8	260	612-1368	11-61	400-850	71	4-10	685	76
MAH12-10	560	936-1980	7-68	400-750	82	1-5	760	86
MAH14-12	560	1260-2772	13-63	300-600	77	3-10	965	90

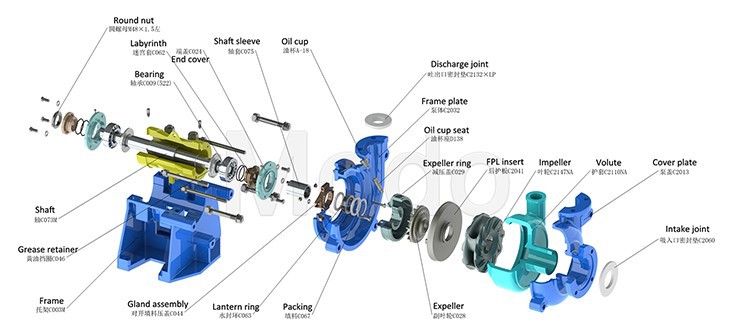

Exploded diagram of rubber lined slurry pumps:

Spare parts of rubber lined slurry pumps:

Rubber Pumps Material			Metal Pumps Material
No	Part	Material	No	Part	Material
1	Base	Cast Iron	1	Base	Cast Iron
2	Shaft	4140 High Tensile Steel*	2	Shaft	4140 High Tensile Steel*
3	Bearing Assembly	Timken (Cast Iron Body)	3	Bearing Assembly	Timken (Cast Iron Body)
4	Shaft Sleeve	420 Stainless Steel	4	Shaft Sleeve	420 Stainless Steel
5	Pump Casing	Cast Iron	5	Pump Casing	Cast Iron
6	Frame Plate Liner Insert	Rubber	6	Frame Plate Liner	27% Chrome White Iron
7	Cover Plate Liner	Rubber	7	Volute Liner	27% Chrome White Iron
8	Impeller	Rubber Coated High Tensile Steel	8	Impeller	27% Chrome White Iron
9	Throat Bush	Rubber	9	Throat Bush	27% Chrome White Iron
10	Cover Plate	Cast Iron	10	Joint Rings	Rubber
11	Stuffing Box	Cast Iron	11	Cover Plate	Cast Iron
12	Expeller	27% Chrome White Iron	12	Stuffing Box	Cast Iron
13	Expeller Ring	Natural Rubber	13	Expeller	27% Chrome White Iron
14	Bolts	Zinc Plated Steel	14	Expeller Ring	Natural Rubber
15	O-rings	Nitrile Rubber	15	Bolts	Zinc Plated Steel
16	Seals	Rubber	16	O-rings	Nitrile Rubber
17	Seals	Rubber	17	Seals	Rubber

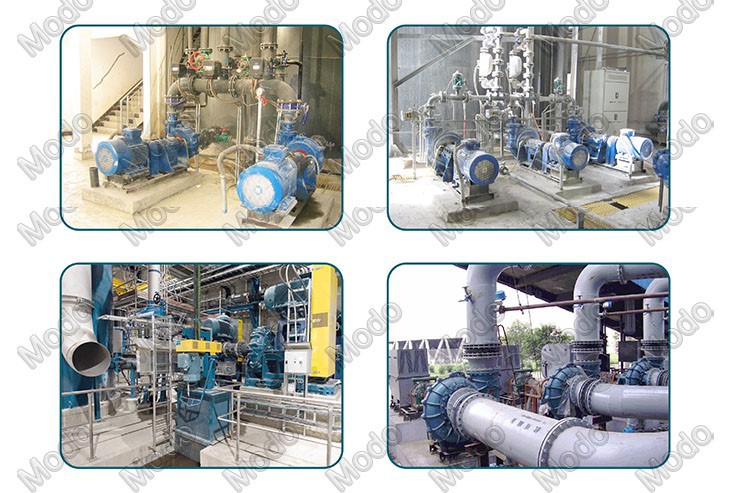

Working site of rubber lined slurry pump:

 Contact us for your solution!
