Gravel Suction Pump



Gravel suction pumps are powerful and reliable machines that are primarily used in the mining and construction industries. They are designed to remove sand, gravel, and other debris from the bottom of bodies of water, such as lakes, rivers, and streams. These pumps are an essential tool for companies that need to extract resources from the ground, as they help to make the mining process more efficient and effective.

One of the major advantages of gravel suction pumps is that they are incredibly versatile. They can be used for a wide range of applications, from silt removal in lakes and ponds to dredging in rivers and harbors. They are also suitable for use in shallow or deep water and can handle a range of different particle sizes, making them an ideal choice for a variety of mining and construction projects.

In addition to their versatility, gravel suction pumps are also highly efficient. They are designed to quickly and easily remove debris from the bottom of bodies of water, which means that they can dramatically reduce the amount of time and labor required for mining and construction projects. This makes them a cost-effective option for companies looking to improve their bottom line.

Overall, gravel suction pumps are an essential tool for companies operating in the mining and construction industries. They are versatile, efficient, and cost-effective, and they can help to make the extraction process faster and more effective. So if you're looking for a reliable and powerful machine that can help you extract resources from the ground, you can't go wrong with a high-quality gravel suction pump.

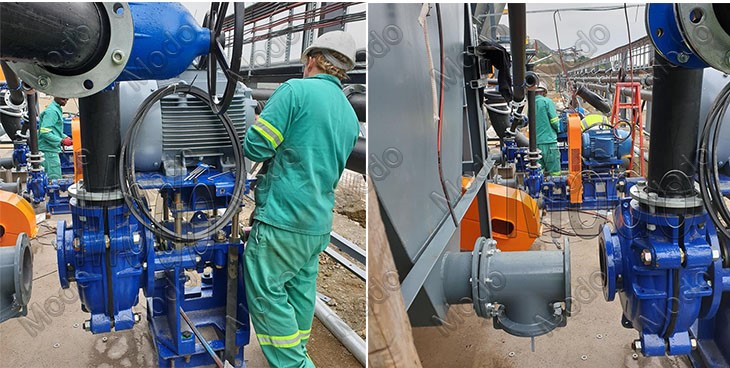

Application working site of gravel suction pump:

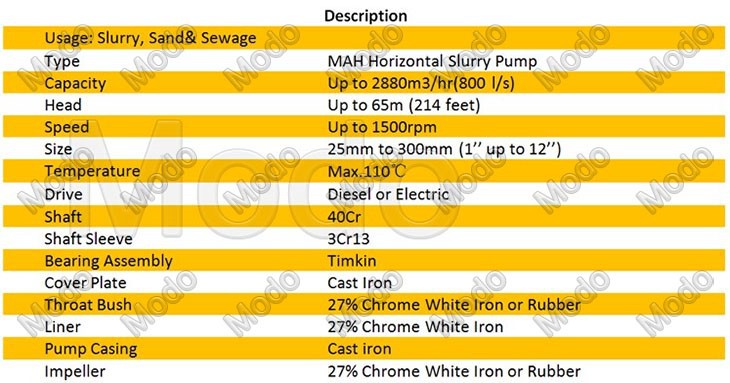

Feature of Gravel suction Pump:

Available models of gravel suction pump:

Type	Max. power	Capacity	Head	Speed	Max.Eff	NPSH	Impeller Dia.	Max.particle size
	(kw)	(m³/h)	(m)	(r/min)	(%)	(m)	(mm)	(mm)
MAH1.5-1	15	12-28	6-65	1200-3800	40	2-4	150	14
MAH2-1.5	15	32-72	6-58	1200-3200	45	3.5-8	185	19
MAH3-2	30	39-86	12-64	1300-2700	55	4-6	215	25
MAH4-3	60	86-198	9-52	1000-2200	71	4-5	245	28
MAH6-4	120	162-360	12-56	800-1500	68	5-8	365	44
MAH8-6	120	360-830	10-61	500-1140	72	2-9	510	63
MAH10-8	260	612-1368	11-61	400-850	71	4-10	685	76
MAH12-10	560	936-1980	7-68	400-750	82	1-5	760	86
MAH14-12	560	1260-2772	13-63	300-600	77	3-10	965	90

Driven method of Gravel suction Pump:
