Engine Driven Slurry Pump

Modo Pump has been focused on engine driven slurry pump manufacturing and selling for many years, which is known as a professional manufacturer and supplier of various quality pumps in China. We have gathered many professional and experienced staff, as well as advanced equipment in our factory. Welcome to buy our engine driven slurry pump and check the price list with us.



The models of engine driven slurry pump

Type	Max. power	Capacity	Head	Speed	Max.Eff	NPSH	Impeller Dia.	Max.particle size
	(kw)	(m³/h)	(m)	(r/min)	(%)	(m)	(mm)	(mm)
MAH1.5-1	15	12-28	6-65	1200-3800	40	2-4	150	14
MAH2-1.5	15	32-72	6-58	1200-3200	45	3.5-8	185	19
MAH3-2	30	39-86	12-64	1300-2700	55	4-6	215	25
MAH4-3	60	86-198	9-52	1000-2200	71	4-5	245	28
MAH6-4	120	162-360	12-56	800-1500	68	5-8	365	44
MAH8-6	120	360-830	10-61	500-1140	72	2-9	510	63
MAH10-8	260	612-1368	11-61	400-850	71	4-10	685	76
MAH12-10	560	936-1980	7-68	400-750	82	1-5	760	86
MAH14-12	560	1260-2772	13-63	300-600	77	3-10	965	90

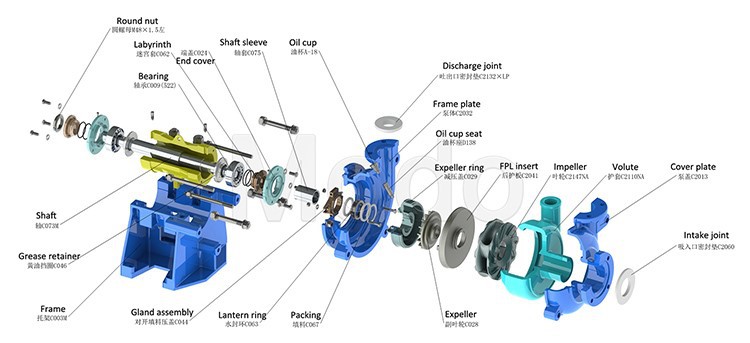

Exploded diagram of engine driven slurry pump :

Spares parts of engine driven slurry pump:

Rubber Pumps Material			Metal Pumps Material
No	Part	Material	No	Part	Material
1	Base	Cast Iron	1	Base	Cast Iron
2	Shaft	4140 High Tensile Steel*	2	Shaft	4140 High Tensile Steel*
3	Bearing Assembly	Timken (Cast Iron Body)	3	Bearing Assembly	Timken (Cast Iron Body)
4	Shaft Sleeve	420 Stainless Steel	4	Shaft Sleeve	420 Stainless Steel
5	Pump Casing	Cast Iron	5	Pump Casing	Cast Iron
6	Frame Plate Liner Insert	Rubber	6	Frame Plate Liner	27% Chrome White Iron
7	Cover Plate Liner	Rubber	7	Volute Liner	27% Chrome White Iron
8	Impeller	Rubber Coated High Tensile Steel	8	Impeller	27% Chrome White Iron
9	Throat Bush	Rubber	9	Throat Bush	27% Chrome White Iron
10	Cover Plate	Cast Iron	10	Joint Rings	Rubber
11	Stuffing Box	Cast Iron	11	Cover Plate	Cast Iron
12	Expeller	27% Chrome White Iron	12	Stuffing Box	Cast Iron
13	Expeller Ring	Natural Rubber	13	Expeller	27% Chrome White Iron
14	Bolts	Zinc Plated Steel	14	Expeller Ring	Natural Rubber
15	O-rings	Nitrile Rubber	15	Bolts	Zinc Plated Steel
16	Seals	Rubber	16	O-rings	Nitrile Rubber
17	Seals	Rubber	17	Seals	Rubber

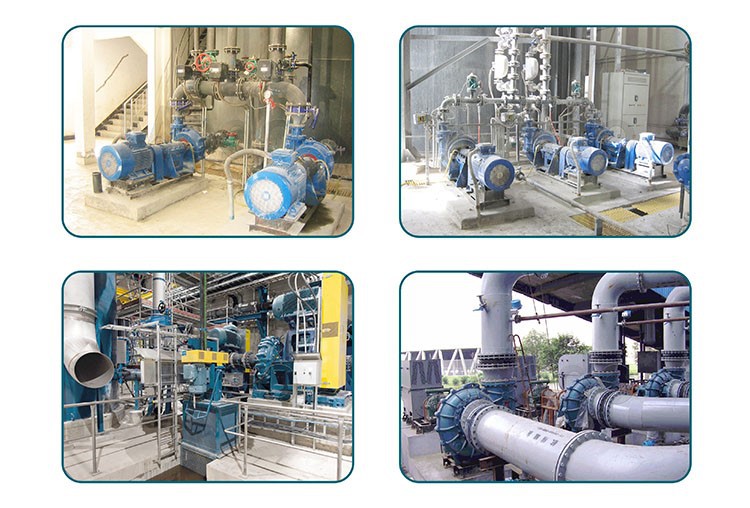

Working site of engine driven slurry pump:

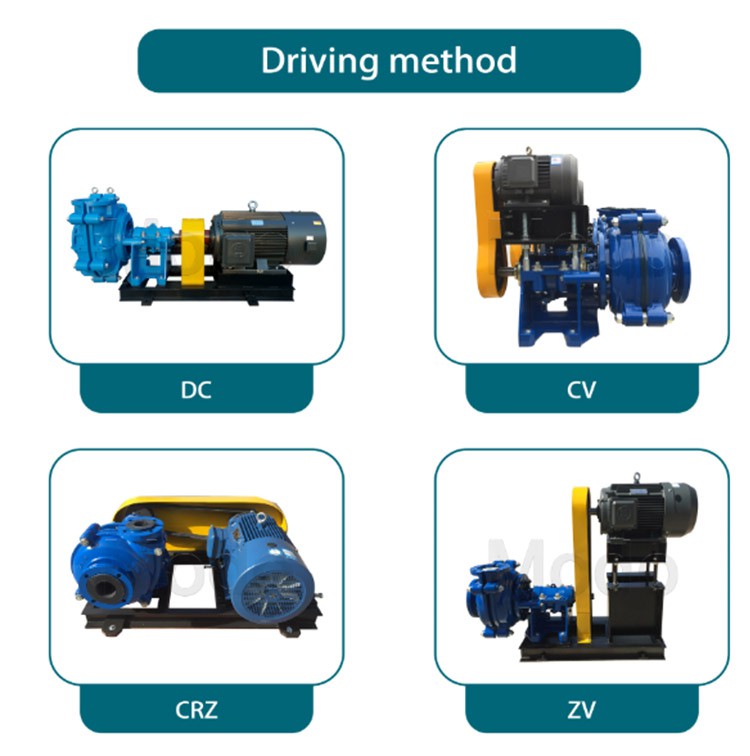

Driving method of engine driven slurry pump:

When selecting a engine driven slurry pump, there are several factors that must be considered. Some of them include:

1. Flow rate: It is essential to determine the required flow rate based on the demand for the application. A engine driven slurry pump should be capable of delivering the necessary flow rate efficiently.

2. Head Pressure: The head pressure is a measure of the force that the pump can generate, which is needed to move fluids through pipes and other system components. The pump must have sufficient head pressure to overcome any resistance in the system.

3. Type of Fluid: The type of fluid being transferred will dictate the pump's material construction. Some fluids may require pumps made of non-corrosive materials, while others may require pumps made from food-grade materials.

4. Engine driven slurry Pump Efficiency: The efficiency of the engine driven slurry pump is important as it directly affects the operating costs. The higher the efficiency, the less energy the pump uses and the less it costs to run.

5. Operating Conditions: The operating conditions such as temperature, pressure, and suction head must be taken into account when selecting an engine driven slurry pump. The pump must be capable of withstanding the operating conditions without damage.

6. Maintenance: Maintenance requirements, such as repair, replacement of parts, and general upkeep, should also be considered. The engine driven slurry pump's design should allow for ease of maintenance, and the manufacturer should provide adequate support.

In summary, to select a suitable engine driven slurry pump for your application, you must understand the flow rate, head pressure, type of fluid, pump efficiency, operating conditions, and maintenance requirements. These factors will enable you to choose a engine driven slurry pump that will provide the necessary performance, efficiency, and reliability.

Please contact us for your solution.
