Centrifugal Dredging Gravel Pump

Modo Pump has been focused on centrifugal dredging gravel pump manufacturing and selling for many years, which is known as a professional manufacturer and supplier of various quality pumps in China. We have gathered many professional and experienced staff, as well as advanced equipment in our factory. Welcome to buy our centrifugal dredging gravel pump and check the price list with us.



What kind of situation we will use Centrifugal Dredging Gravel Pump?
Centrifugal Dredging Gravel Pump has an important role in many industries, especially in dredging and mining applications. In these situations, the centrifugal dredging gravel pumps, and rivers. This process is crucial for maintaining the waterways' depth, making them navigable, and preventing flooding in nearby areas.

The centrifugal dredging gravel pump is also used in mining operations to extract minerals from the earth by removing the sand and gravel that surround them. This ensures that the mining process is efficient and that maximum yield is achieved.

In addition to dredging and mining, the Centrifugal Dredging Gravel Pump can also be used in construction projects, such as building dams, bridges, and other infrastructure. By removing the sand and rocks from the bottom of a waterway, the pump enables the project to proceed without obstructions and with minimal impact on the environment.

Overall, the Centrifugal Dredging Gravel Pump is an essential tool in many industries, enabling the efficient and effective extraction of materials from waterways and land. Its reliability and high performance make it a valuable asset in any project where heavy materials need to be moved.

Available Models of Centrifugal Dredging Gravel Pump

Type	Max. power	Capacity	Head	Speed	Max.Eff	NPSH	Impeller Dia.	Max.particle size
	(kw)	(m³/h)	(m)	(r/min)	(%)	(m)	(mm)	(mm)
MAH1.5-1	15	12-28	6-65	1200-3800	40	2-4	150	14
MAH2-1.5	15	32-72	6-58	1200-3200	45	3.5-8	185	19
MAH3-2	30	39-86	12-64	1300-2700	55	4-6	215	25
MAH4-3	60	86-198	9-52	1000-2200	71	4-5	245	28
MAH6-4	120	162-360	12-56	800-1500	68	5-8	365	44
MAH8-6	120	360-830	10-61	500-1140	72	2-9	510	63
MAH10-8	260	612-1368	11-61	400-850	71	4-10	685	76
MAH12-10	560	936-1980	7-68	400-750	82	1-5	760	86
MAH14-12	560	1260-2772	13-63	300-600	77	3-10	965	90

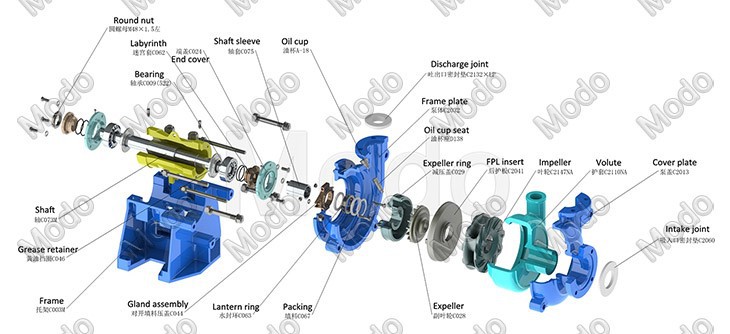

Exploded diagram of Centrifugal Dredging Gravel Pump:

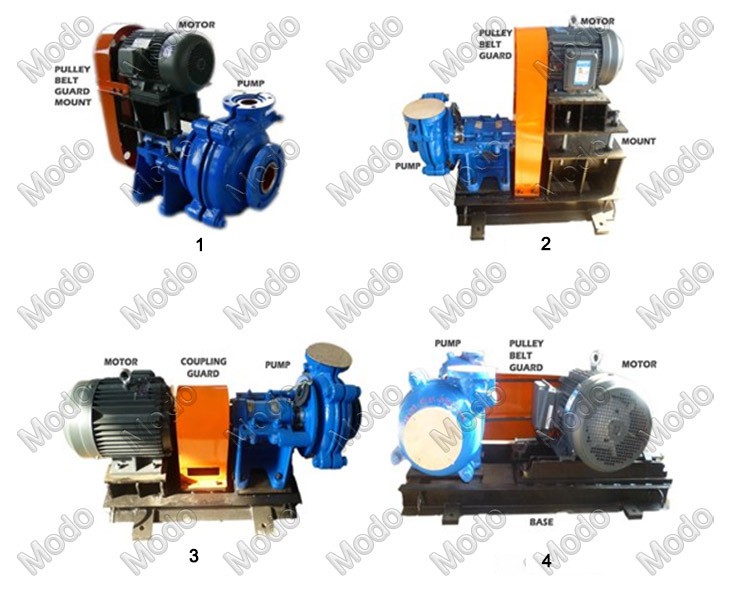

Driven method of Centrifugal Dredging Gravel Pump:

1.CV DRIVE        2.ZV DRIVE        3.DC DRIVE        4.CR or CL DRIVE

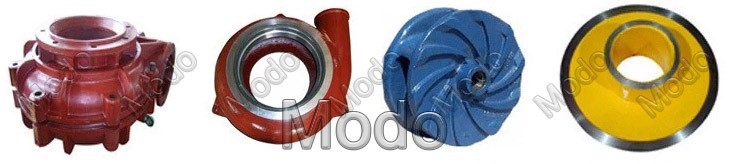

Pump Casing                   Volute Liner                Impeller                      Front Liner

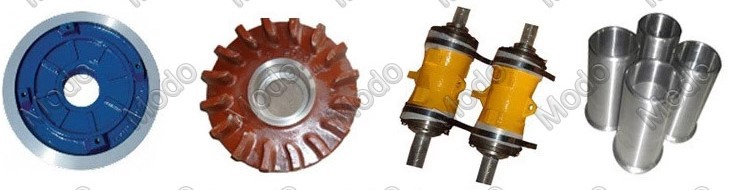

Spare parts of Centrifugal Dredging Gravel Pump:

Rubber Pumps Material			Metal Pumps Material
No	Part	Material	No	Part	Material
1	Base	Cast Iron	1	Base	Cast Iron
2	Shaft	4140 High Tensile Steel*	2	Shaft	4140 High Tensile Steel*
3	Bearing Assembly	Timken (Cast Iron Body)	3	Bearing Assembly	Timken (Cast Iron Body)
4	Shaft Sleeve	420 Stainless Steel	4	Shaft Sleeve	420 Stainless Steel
5	Pump Casing	Cast Iron	5	Pump Casing	Cast Iron
6	Frame Plate Liner Insert	Rubber	6	Frame Plate Liner	27% Chrome White Iron
7	Cover Plate Liner	Rubber	7	Volute Liner	27% Chrome White Iron
8	Impeller	Rubber Coated High Tensile Steel	8	Impeller	27% Chrome White Iron
9	Throat Bush	Rubber	9	Throat Bush	27% Chrome White Iron
10	Cover Plate	Cast Iron	10	Joint Rings	Rubber
11	Stuffing Box	Cast Iron	11	Cover Plate	Cast Iron
12	Expeller	27% Chrome White Iron	12	Stuffing Box	Cast Iron
13	Expeller Ring	Natural Rubber	13	Expeller	27% Chrome White Iron
14	Bolts	Zinc Plated Steel	14	Expeller Ring	Natural Rubber
15	O-rings	Nitrile Rubber	15	Bolts	Zinc Plated Steel
16	Seals	Rubber	16	O-rings	Nitrile Rubber
17	Seals	Rubber	17	Seals	Rubber

Contact us for your solution!
