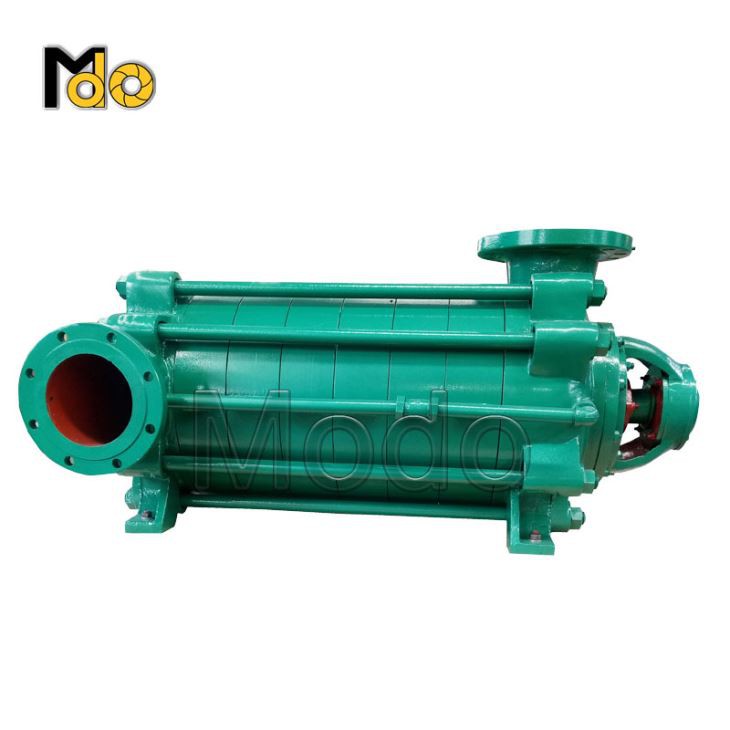

High Pressure Multistage Pump

High pressure multistage pump

This series of high pressure multistage pump are horizontal single suction multistage centrifugal pumps, which adopt the hydraulic model of high efficiency and energy saving products recommended by the state. The utility model has the advantages of high efficiency, wide performance range, safe and stable operation, low noise, long service life, convenient installation and maintenance, etc. It can be used to transport clear water without solid particles (Abrasives), suspended solids or other liquids with physical and chemical properties similar to clear water. It can also be used to transport hot water, oil, corrosive or wear-resistant media by changing the material of the pump (or the material of the overflow part of the pump), sealing form and increasing the cooling system.

The high pressure multistage pump is mainly divided into the following types according to its scope of use:

1) DF type: the DF high pressure multistage pump is used for conveying corrosive liquid without solid particles and with a temperature of - 20 ℃ ~ 105 ℃, and the allowable pressure at the pump inlet is less than 0.6MPa. According to the name, concentration, specific gravity, operating temperature and pump inlet pressure of the conveying medium, the user can reasonably select the material, sealing form, pump structure and determine the capacity of the motor.

2) D-type: D-type high pressure multistage pump is used to transport clear water without solid particles and temperature lower than 80 ℃ or liquid with physical and chemical properties similar to clear water. It is suitable for water supply and drainage engineering in mines, factories and cities.

3)DG high pressure multistage pump is used for transfer hot water120 degree,highpressure boiler multistage pump.

Specification of high pressure multistage pump:

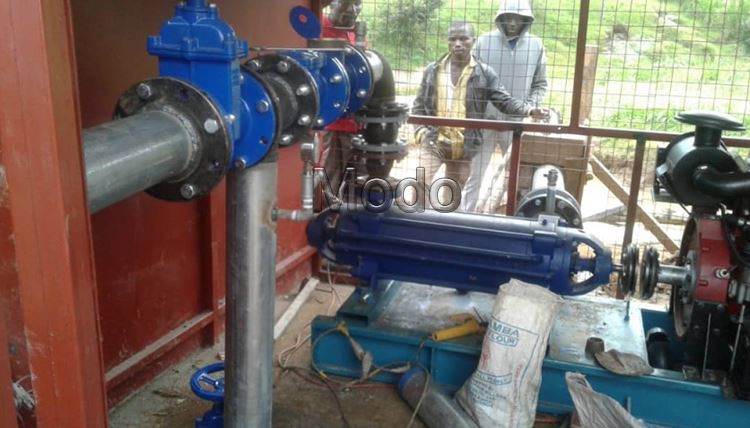

Working site of high pressure multistage  pump:

When it comes to choosing a high pressure multistage pump, it is important to keep a few key factors in mind. By understanding the specific needs of your project and choosing a pump that can meet those needs, you can ensure that your system runs smoothly and efficiently.

1. Determine your pressure and flow requirements of high pressure multistage pump.

The first step in selecting a suitable high pressure multistage pump is to determine your pressure and flow requirements. These will depend on the specific application you are working on, such as water treatment, irrigation, or industrial processing. Once you know your requirements, you can choose a pump with the right configuration and capacity to meet your needs.

2. Consider the materials of construction

It is also important to consider the materials of construction for your high pressure multistage pump. Depending on the fluids you'll be pumping, as well as any environmental factors (such as temperature or corrosion), you will want to choose a pump with appropriate materials. Common materials include stainless steel, bronze, or cast iron.

3. Evaluate power requirements of high pressure multistage pump

Another important factor to consider is the power requirements of the high pressure multistage pump. Typically, high pressure multistage pumps will require more power than other types of pumps, due to the higher pressure requirements. Be sure to evaluate the available power sources at your location, and choose a pump that can run efficiently without overloading your system.

4. Look for quality and reliability

Finally, it is important to choose a high pressure multistagepump that is reliable and durable. Look for pumps with a strong track record of performance, as well as any industry certifications or awards. This will help ensure that your pump continues to operate effectively and without interruption over the long term

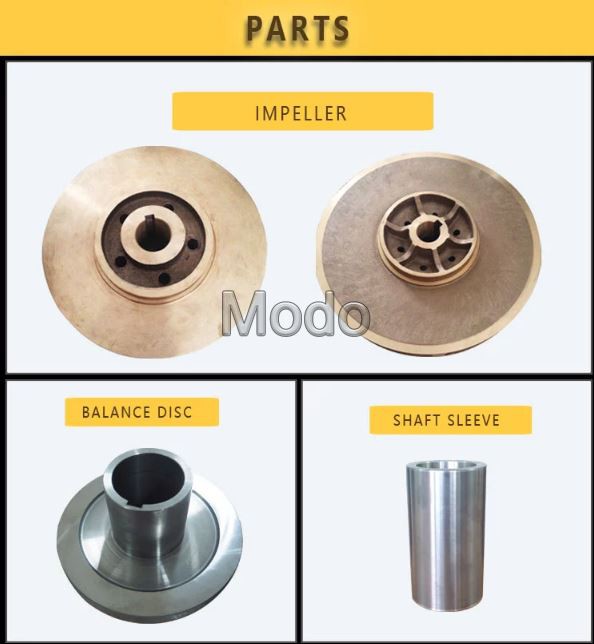

Spares of high pressure multistage pump

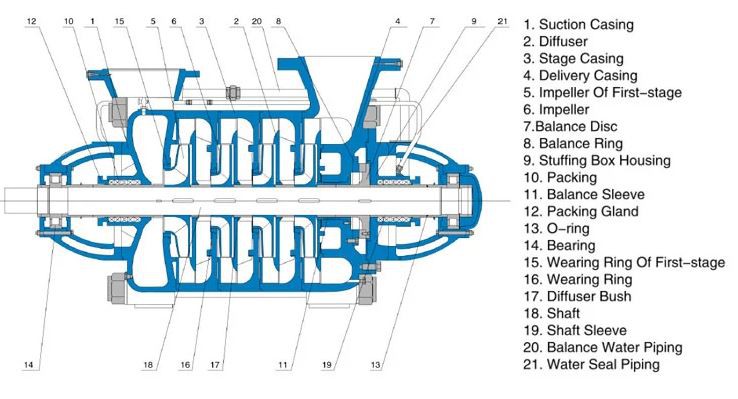

Structure of high pressure multistage pump :
