Good Quality Horizontal Type MAH 4/3C Model Slurry Pump

Name: Good Quality Horizontal Type MAH 4/3C Model Slurry Pump
Brand: Modo Pump
SKU: 150640670

Production description The MAH series Mineral Processing Heavy Duty Centrifugal Slurry Pump is designed for the continuous pumping of highly abrasive, high density slurries with minimal maintenance requirements. The MAH series slurry pump will maintain high efficiencies over the wear life of its...

Send Inquiry

Product Details

Production description

Horizontal slurry pump (2)

The MAH series Mineral Processing Heavy Duty Centrifugal Slurry Pump is designed for the continuous pumping of highly abrasive, high density slurries with minimal maintenance requirements. The MAH series slurry pump will maintain high efficiencies over the wear life of its components.

Product Parameters

Type	Max. power	Capacity	Head	Speed	Max. Eff	NPSHr	Impeller Dia.	Max. Particle size
Type	km	m3/h	m	r/min	%	m	mm	mm
MAH 1.5/1	15	12-28	6-65	1200-3800	40	2-4	150	14
MAH 2/1.5	15	32-72	5-58	1200-3200	45	3.5-8	185	19
MAH 3/2	30	39-86	12-64	1300-2700	55	4-6	215	25
MAH 4/3	60	86-198	9-52	1000-2200	71	4-5	245	28
MAH 6/4	120	162-360	12-56	800-1500	68	5-8	365	44
MAH 8/6	120	380-930	10-61	500-1140	72	2-9	510	63
MAH 10/8	260	612-1368	11-61	400-850	71	4-10	685	76
MAH 12/10	560	936-1980	7-68	400-750	82	1-5	760	86
MAH 14/12	560	1260-2772	13-63	300-600	77	3-10	965	90

Pump Material

Rubber Pumps Material			Metal Pumps Material
No	Part	Material	No	Part	Cast Iron
1	Base	Cast Iron	1	Base	Cast Iron
2	Shaft	4140 High Tensile Steel*	2	Shaft	4140 High Tensile Steel*
3	Bearing Assembly	Timken (Cast Iron Body)	3	Bearing Assembly	Timken (Cast Iron Body)
4	Shaft Sleeve	Cast Iron	4	Shaft Sleeve	Cast Iron
5	Pump Casing	Cast Iron	5	Pump Casing	Cast Iron
6	Frame Plate Liner	Rubber	6	Frame Plate Liner	27% Chrome White Iron
7	Cover Plate Liner	Rubber	7	Volute Liner	27% Chrome White Iron
8	Impeller	Rubber Coated High Tensile Steel	8	Impeller	27% Chrome White Iron
9	Throat Bush	Rubber	9	Throat Bush	27% Chrome White Iron
10	Cover Plate	Cast Iron	10	Joint Rings	Rubber
11	Stuffing Box	Cast Iron	11	Cover Plate	Cast Iron
12	Expeller	27% Chrome White Iron	12	Stuffing Box	Cast Iron
13	Expeller Ring	Natural Rubber	13	Expeller	27% Chrome White Iron
14	Bolts	Zinc Plated Steel	14	Expeller Ring	Natural Rubber
15	O-rings	Nitrile Rubber	15	Bolts	Zinc Plated Steel
16	Seals	Rubber	16	O-rings	Nitrile Rubber
17	-	-	17	Seals	Rubber

Recommend Products

Company Profile

Ha59751f59396463295fb744375abc29cx

Modo Pump Co.,Ltd. is one over 30 years experienced pump manufacturer (established at 1986) in mining and mineral, power plant, dredging and dredge, hydraulic, irrigation, pulp transfer, chemical, construction, sea water and oil & gas transfer etc.; Modo Pump Co.,Ltd. is the pump factory has its own pump selection & design, research and development team to assure provide you efficient, energy saving slurry pump, water pump, diesel water pump, chemical pump and irrigation pump in selection & design, use and maintenance program.

Our products include slurry pump, sewage pump, water pump, acid resistant or chemical pump, irrigation pumps, fire pumps and other products exported to over 90 countries all over the world. The application covers many fields, such as mining and mineral processing, dredger, tailings transportation, mining, steel, desulfurization pump, boiler feed water, construction, irrigation, water conservancy facilities, sewage treatment, drainage and water supply.

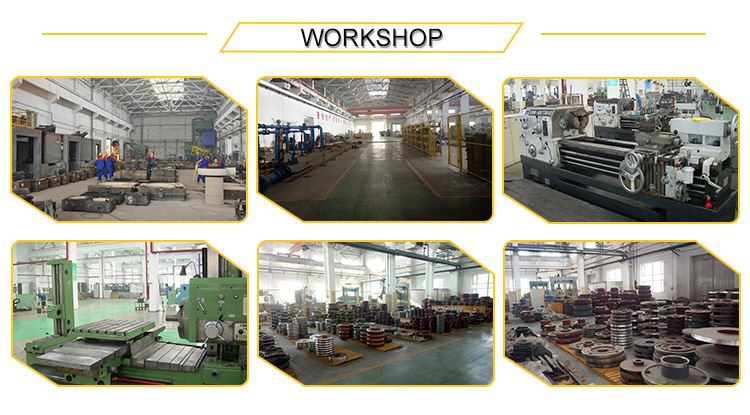

photobank (1)

1627612305

photobank (3)

FAQ

1, What information is needed to offer a slurry pump?

The pump model or the below information: Liquid:___ Capacity:___ m3/hr Head: ___ m PH:___ Specific of gravity:___ Voltage:___V, Frequency:___hz

2, What material pump can you supply?

A05, Natural rubber, ceramics, polyurethane etc.

3, Can you supply special or OEM parts?

Yes, please send me the detailed drawing or parts code to check.

4, Do you only supply pumps?

Could you supply driven equipment?Yes, sure ,the pumps could be coupled with motor and diesel engine, below brands for your reference: Motor: WEG, SIMENS ,ABB, TECO ,and Chinese brands Diesel engine: Cummins, Deutz, Perkins,Volvo,MITSUBISHI, Caterpiller,MTU,and Chinese brands.

5, What is the delivery time?

10days for normal pumps.
