Centrifugal Mining Slurry Pump
The centrifugal mining slurry pump is designed for the continuous pumping of highly abrasive, high density slurries with minimal maintenance requirements. this kind of slurry pump will maintain high efficiencies over the wear life of its components.

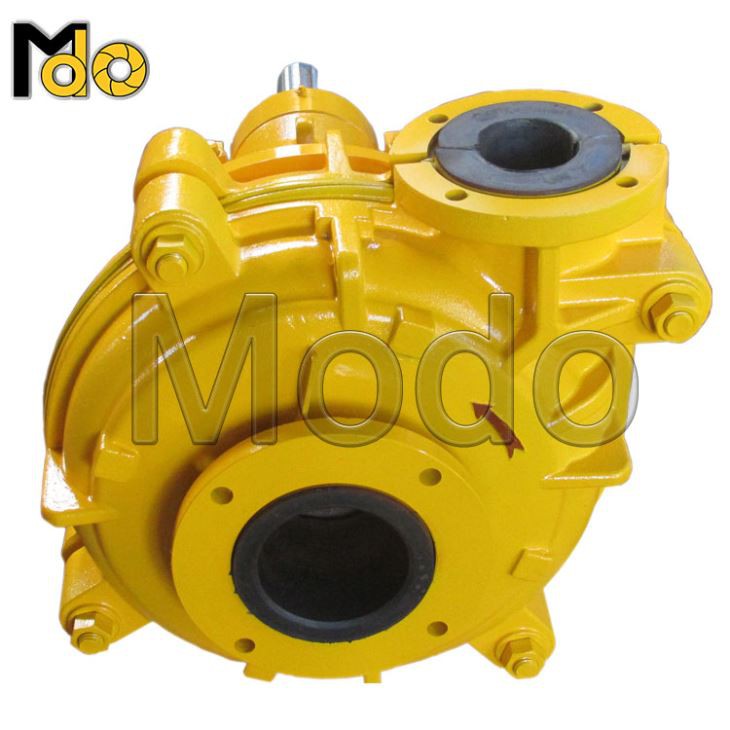

centrifugal mining slurry pump with diesel
Model explaination
MAH 1.5-1 for example:
MAH -- Centrifugal slurry pump
1.5 -- Suction diameter (inch)
1 -- Discharge diameter (inch)
| Type | Max. power | Capacity | Head | Speed | Max.Eff | NPSH | Impeller Dia. | Max.particle size |
| (kw) | (m³/h) | (m) | (r/min) | (%) | (m) | (mm) | (mm) | |
| MAH1.5-1 | 15 | 12-28 | 6-65 | 1200-3800 | 40 | 2-4 | 150 | 14 |
| MAH2-1.5 | 15 | 32-72 | 6-58 | 1200-3200 | 45 | 3.5-8 | 185 | 19 |
| MAH3-2 | 30 | 39-86 | 12-64 | 1300-2700 | 55 | 4-6 | 215 | 25 |
| MAH4-3 | 60 | 86-198 | 9-52 | 1000-2200 | 71 | 4-5 | 245 | 28 |
| MAH6-4 | 120 | 162-360 | 12-56 | 800-1500 | 68 | 5-8 | 365 | 44 |
| MAH8-6 | 120 | 360-830 | 10-61 | 500-1140 | 72 | 2-9 | 510 | 63 |
| MAH10-8 | 260 | 612-1368 | 11-61 | 400-850 | 71 | 4-10 | 685 | 76 |
| MAH12-10 | 560 | 936-1980 | 7-68 | 400-750 | 82 | 1-5 | 760 | 86 |
| MAH14-12 | 560 | 1260-2772 | 13-63 | 300-600 | 77 | 3-10 | 965 | 90 |

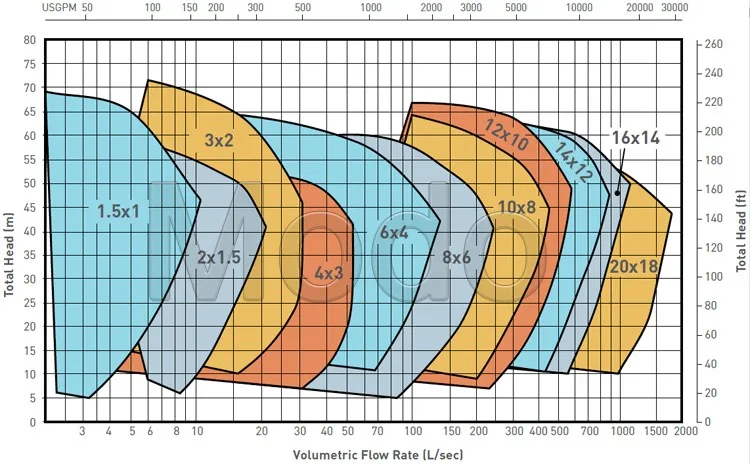

Performance curves

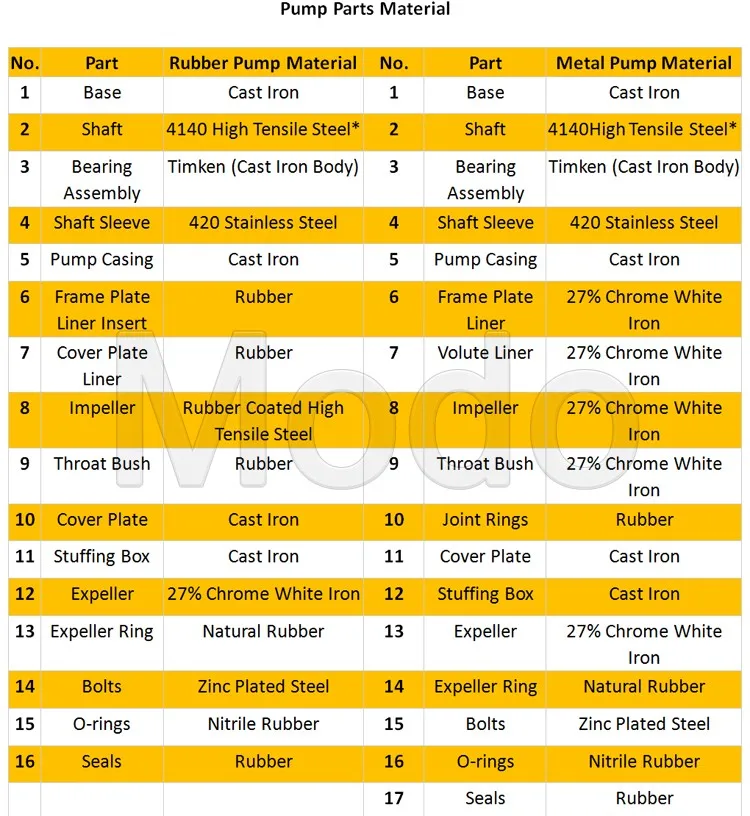

1, Material
The wet parts material for standard MAH series pump is high-chrome alloy. This kind of material is wear resistant and has excellent performance under erosive conditions.

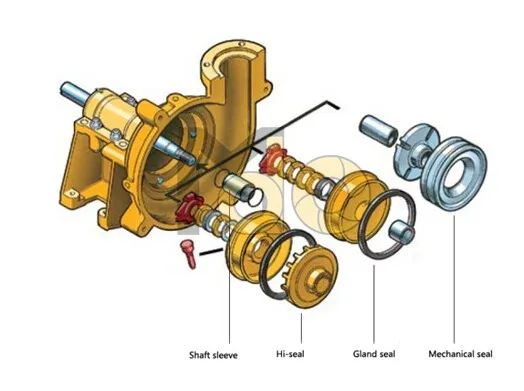

2,Shaft Seal
There are three standard shaft seal methods:Packing seal, Expeller seal, Mechanical seal.
3, Bearing Assembly
Convenient to adjust the space between impeller and front liner and can be removed
completely.
Applications
Typical Applications
Chemical Process
Heavy Minerals
Paper and Pulp
Mill Discharge
Sugar Beet
Services of the slurry pump
1.Reply your enquiry in 24 working hours, any time you can contact me.
2.Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.
3.Timely delivery
4.Packing can make client brand.
5.Good after-sale service
