Anti-Corrosion Submerged Slurry Pump

Name: Anti-Corrosion Submerged Slurry Pump
Brand: MODO
SKU: 41955076

SP series centrifugal slurry pumps are cantilevered, vertical, centrifugal slurry pumps. The SP/SPR heavy duty cantilever sump pump is designed for applications requiring greater reliability and durability than conventional vertical process pumps can offer. Fully elastomer lined or hard metal...

Send Inquiry

Product Details

Anti-Corrosion Submerged Slurry Pump

MSP series submerged slurry pump centrifugal slurry pumps are cantilevered, vertical, centrifugal slurry pumps.

The SP/SPR heavy duty submerged slurry pump is designed for applications requiring greater reliability and durability than conventional vertical process pumps can offer.our Submerged slurry pump can be interchangeable with Warman pump.
Fully elastomer lined or hard metal fitted. No submerged bearings of submerged slurry pump or packing. High capacity double suction design. Optional recessed impeller and suction agitator available.

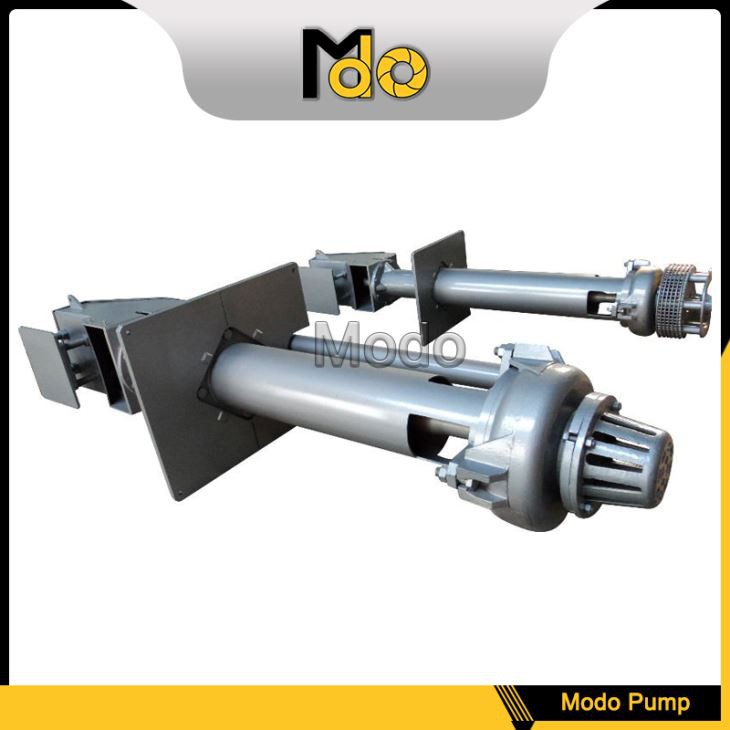

Submerged slurry pump of photo:

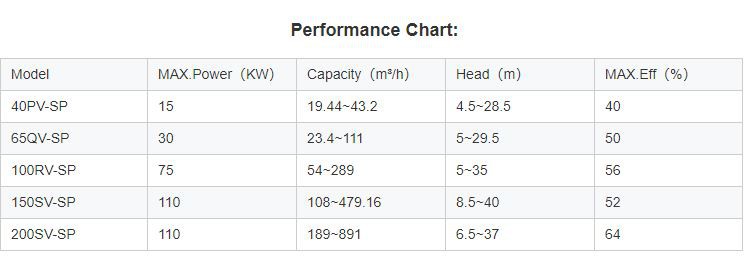

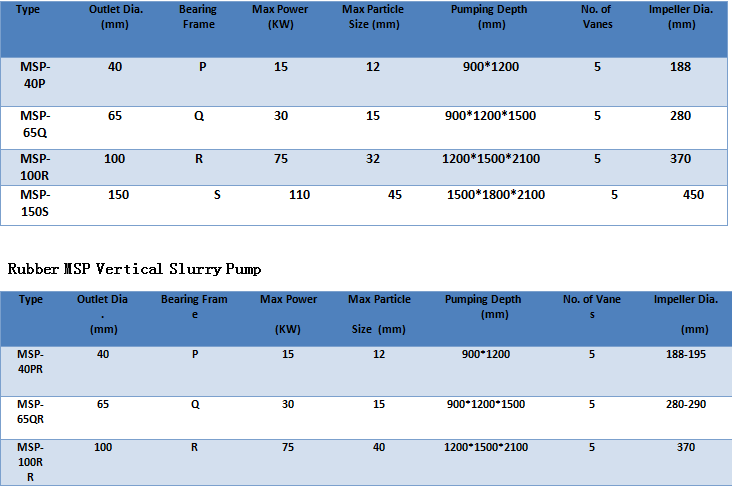

Model selection of submerged slurry pump:

Material construction of submerged slurry pump:

·Usage:	Slurry, Sewage & Water
·Type:	submerged slurry pump
·Capacity	Up to 1267 m³/hr( 352 L/s )
·Head	Up to 43 m ( 141 feet )
·Speed:	Up to 1500 rpm
·Outlet Dia	40mm to 250mm (1.5＂up to 10＂)
·Temperature	Max.: 110 ℃
·Drive	Electric
·Shaft	4140 Mild Steel
·Bearing Housing	Cast Iron
·Column	Mild Steel
·Upper Strainer	Rubber or Cast Iron
·Lower Strainer	Cast Iron
·Back Liner	27% Chrome White Iron
·Pump Casing	27% Chrome White Iron or Rubber Lined White Iron
·Impeller	27% Chrome White Iron or Rubber
·Discharge Pipe	Mild Steel or Rubber Lined Mild Steel
·Adapter Plate	Mild Steel
