Vertical Sewage Pump

Modo Pump has been focused on vertical sewage pump manufacturing and selling for many years, which is known as a professional manufacturer and supplier of various quality pumps in China. We have gathered many professional and experienced staff, as well as advanced equipment in our factory. Welcome to buy our vertical sewage pump and check the price list with us.



The WQ series vertical sewage pump submersible pump is suitable for the treatment of sewage and sludge in various harsh environments. The outlet of the Vertical sewage pump is at the bottom, which can drain the surface water of the working face;
The motor of Vertical sewage pump is a three-phase asynchronous motor with a small footprint, convenient installation and use, reliable and durable, and long service life.

The WQ series Vertical sewage pump consists of two main parts: a submersible three-phase asynchronous motor and a sewage pump. The electric motor is directly connected to the lower pump body, and a reliable mechanical sealing device is installed in the middle, which can effectively prevent the exchange between the coolant inside the electric motor and the pumped medium, ensuring the long-term reliable operation of the water pump.

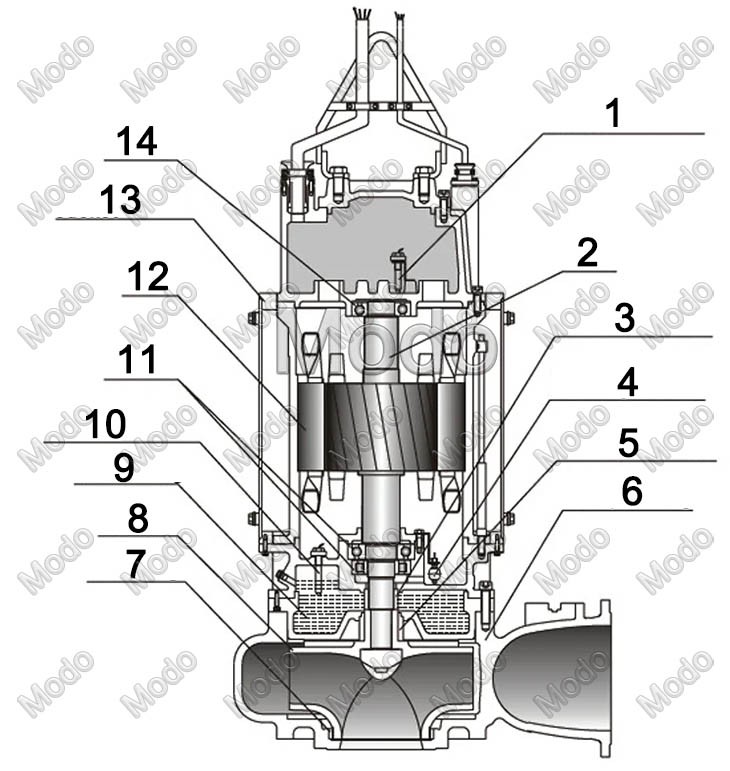

1.Water Detection Sensor          2.Shaft          3.Mechanical Seal          4.Floating Switch          5.Mechanical Seal          6.Pump Casing          7.Neck Ring
8.Impeller          9.Oil Housing          10.Water Leakage Probe          11.Bearing          12.Stator          13.Motor Water Jacket          14.Bearing

The motor winding is made of nylon sheathed polyethylene water-resistant electromagnetic wire. The motor cavity and sealing chamber are filled with No. 10 mechanical oil or No. 25 transformer oil (limited to submerging the upper bearing when the electric pump is vertical, and cannot be filled). The motor adopts radial ball bearings, which are easy to disassemble and repair.

The design of the Vertical sewage pump fully considers the key issue of no blockage, widens the impeller flow channel, and allows large-sized impurities to pass through.

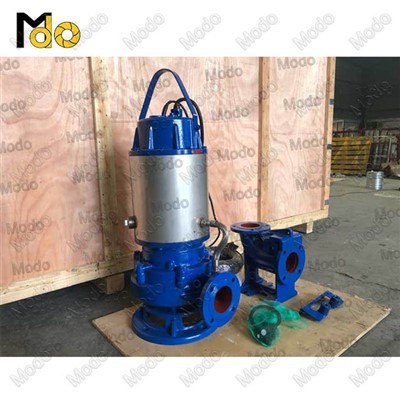

The motor of a Vertical sewage pump is generally submerged underwater. But by adding a cooling cover, the motor can be allowed to work above the water surface for a certain period of time.When the submersible pump with a cooling cover is turned on, it must be ensured to continuously inject clean cold water and ensure that the drainage port is unobstructed. Cooling water flows in from the lower end of the cooling device and out from the upper end of the other side.
