Submersible Pump

Name: Submersible Pump
Brand: MODO
SKU: 33346716

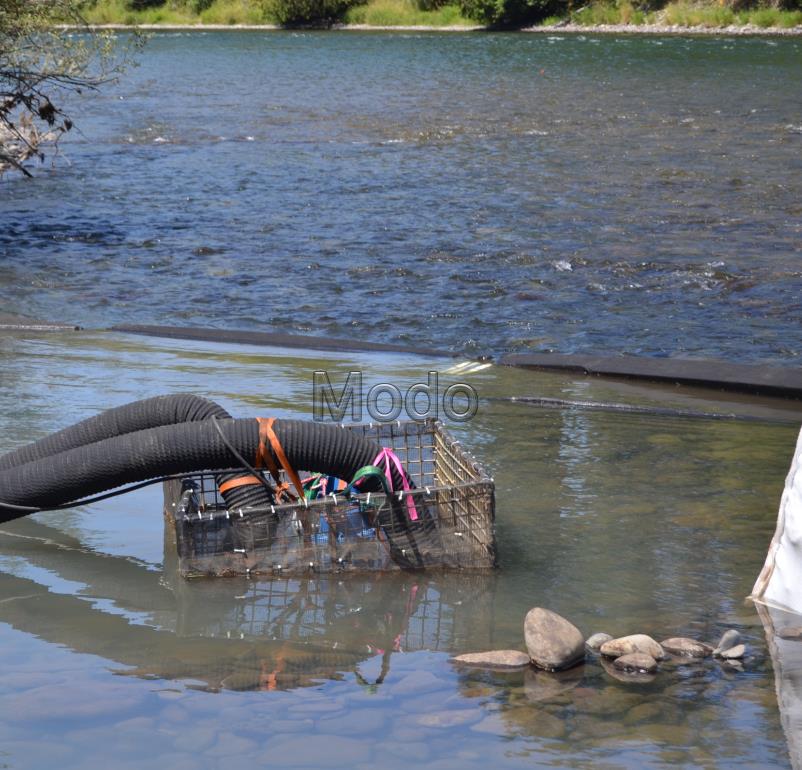

The long cable submersible waste water pump is suitable for enterprise wastewater discharge, urban sewage treatment plant discharge system.

Send Inquiry

Product Details

Modo Pump has been focused on submersible pump manufacturing and selling for many years, which is known as a professional manufacturer and supplier of various quality pumps in China. We have gathered many professional and experienced staff, as well as advanced equipment in our factory. Welcome to buy our submersible pump and check the price list with us.

Submersible pump

Operating data

Flow rate 2000,00 m³/h

Developed head 9,00 m

Pumped medium Water, surface water, River water

Ambient temperature 20,0 °C

Fluid temperature 20,0 °C

Fluid density 998 kg/m³

Fluid viscosity 1,00 mm²/s

Design

Design Monoblock construction, submersible motor

Orientation Vertical

Suction flange pump according to(DN1) unmachined

Discharge flange pump according to(DN2) DN 400 / PN 10 / Drilled according to EN 1092-2

Shaft seal 2 mech. seals in tandem arrangement with oil reservoir

Type MG

Material code SIC/SIC/NBR
Impeller type Multivane radial flow impeller (K)

Wear ring Casing wear ring

Impeller diameter 461,0 mm

Free passage size 130,0 mm

Direction of rotation from drive Clockwise

Temperature sensor PT100 inboard with

Driver, accessories

Driver type Electric motor

Model (make) ____________________________________

Motor const. type Submersible motor

Operating mode S1, work in the not immersed state

Designed for operation on a frequency converter Yes

Frequency 50 Hz

Operating voltage 400 V

Rated power P2 75,00 kW

Available reserve 24,98 %

Rated current 155,0 A

Ratio of starting and rated current IA / IN 4,7

Insulation class H according IEC 34-1

Motor enclosure IP68

Cos phi at 4/4 load 0,78

Motor efficiency at 4/4 load 89,0 %

Temperature sensor Thermistor with positive temperature coefficient

Motor winding 400 / 690 V

Number of poles 8

Starting mode Direct/Star-delta possible

Connection mode Delta

Motor cooling method Surface cooling

Engine Cooling Enclosure С

Motor version U

Cable design Rubber hose

Cable entry Longitudinal waterproof filling

Power cable S1BN8-F 4G25

Number of power cables 2

Control cable S1BN8-F 10G1.5

Number of control cables 1

Moisture sensor with °C
Cable length 10,00 m

Materials G

Notes

general criteria for a water analysis: pH-value >= 7; chloride content (Cl) <=250 mg/kg. chlorine (Cl2) <=0.6 mg/kg. Pump casing (101) Grey cast iron EN-GJL-250

Pressure plug (163) Grey cast iron EN-GJL-250

Shaft (210) Chrome steel 1.4021+QT800

Impeller (230) Grey cast iron EN-GJL-250

Bearing bracket (330) Grey cast iron EN-GJL-250
O-Ring (412) Nitrile rubber NBR

Casing wear ring (502.1) Grey cast iron EN-GJL-250

Shaft protecting sleeve (524) Chrome steel 1.4021+QT800

Motor housing (811) Grey cast iron EN-GJL-250

Motor cable (824) Chloroprene rubber

Hexagon socket head cap screw (900) CrNiMo steel A4

Installation parts

Scope of supply Pump with installation parts

Installation type Stationary with guide wire
